Home >> Land Rover >> 2010 >> Range Rover Sport (LS) V8-5.0L SC >> Repair and Diagnosis >> Locations >> C0502 - C0586R >> C0570L

C0570L



C0570L

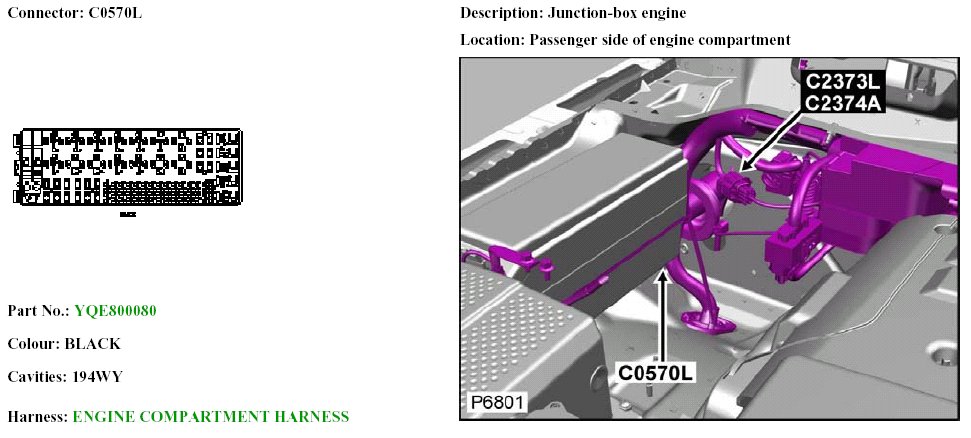

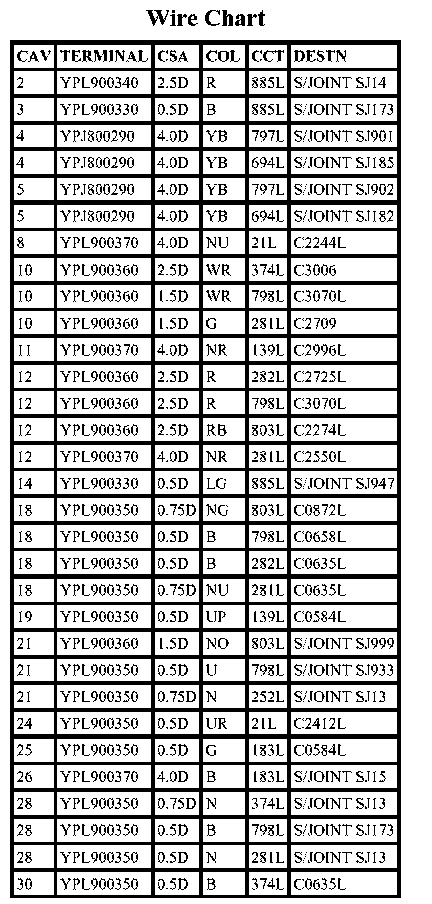

C0570L (Part 1):

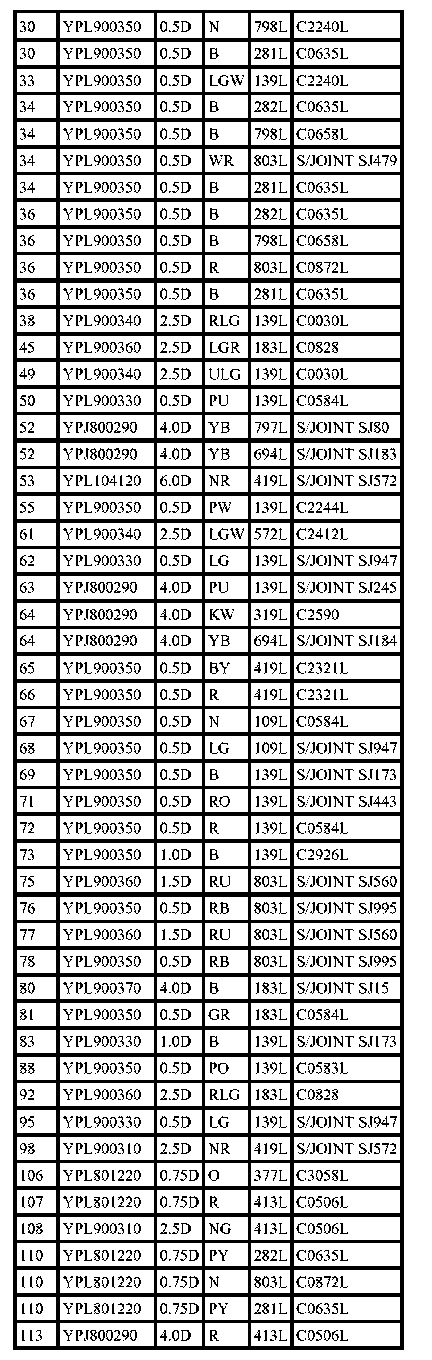

C0570L (Part 2):

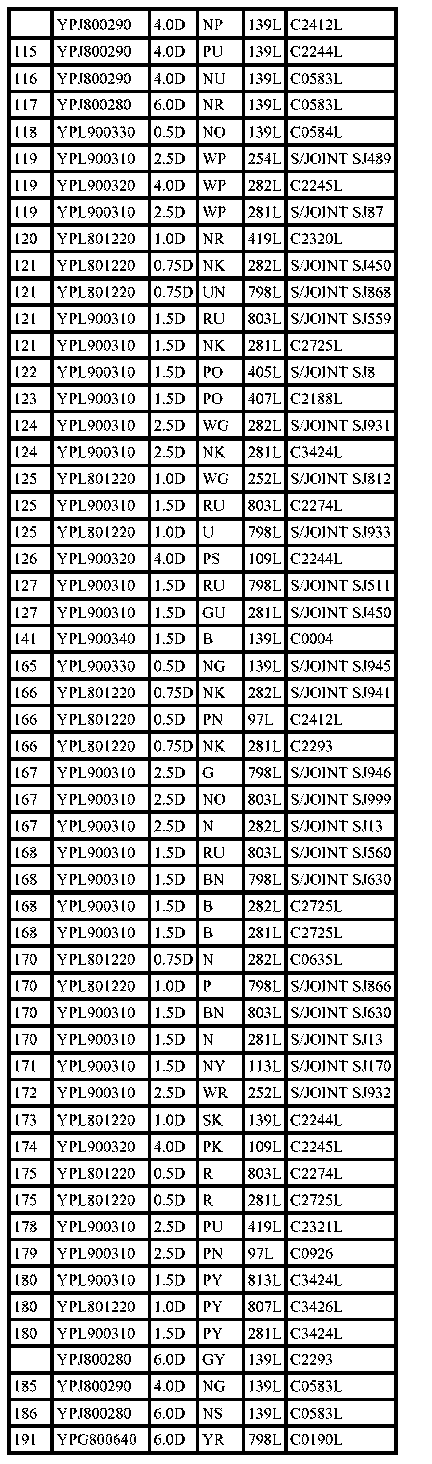

C0570L (Part 3):





C0570L (Part 4):
