Repair and Diagnosis: Application and ID

Identification Codes

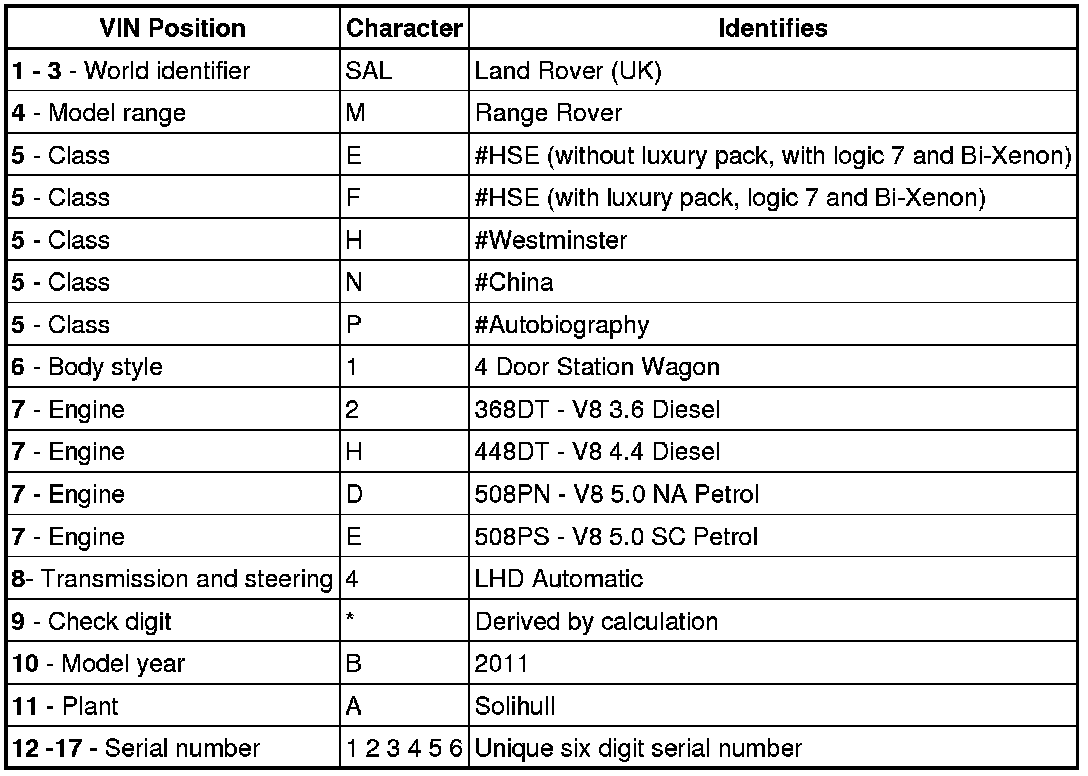

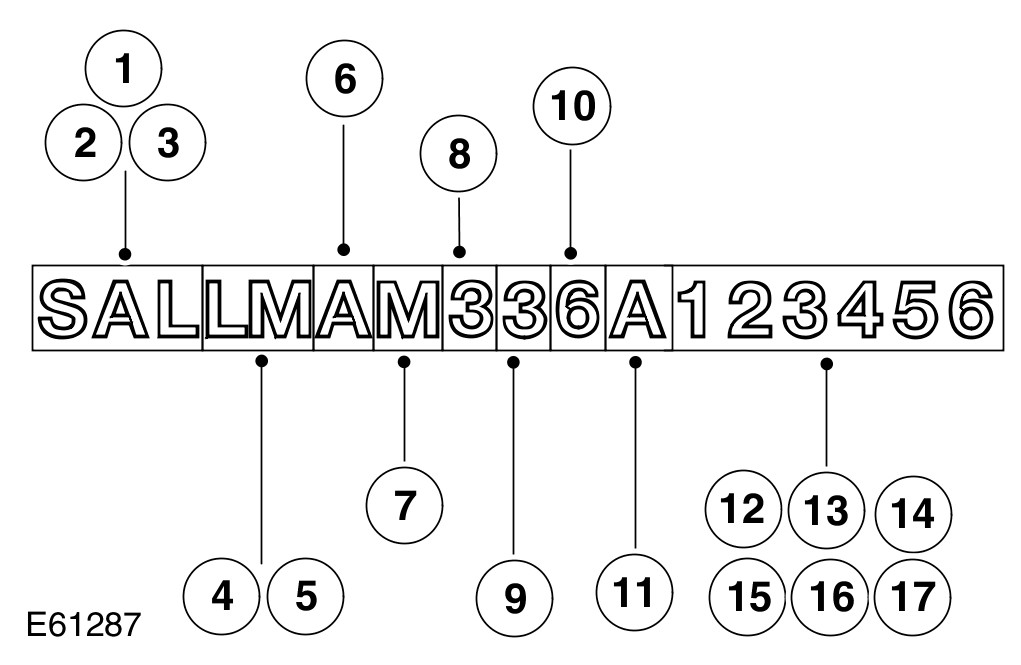

VIN Number

The VIN number will be found in three locations:
- 1. Stamped on the front of the RH front suspension turret.
- 2. At the bottom of the windshield glass on the LH side of the vehicle and visible from the outside.
- 3. UK, Europe and ROW - Not NAS/Canada -On the VIN plate attached to the LH inner wing, forward of the suspension turret.
- 4. NAS/Canada - On the Tire Data/Specification label attached to the front of the LH B-pillar.


RH Front Suspension Turret VIN





Windscreen VIN





LH Inner Wing VIN





VIN number - UK, EU and ROW









VIN number - NAS and Canada





NOTE:
# Active belts with driver and passenger frontal air bags and side inflatable restraint (1st and 2nd row) and driver knee air bag.





LH Inner Wing, Forward of Suspension Turret, VIN Plate - Not NAS/Canada





The VIN plate contains the following information:
- A - Reserved
- B - Engine Description
- C - Country
- D - Diesel Indicator
- E - Reserved
- F - Headlamp Code/initial aim value - If shown
- G - Colour code/group
- H - Type/Approval Number - If shown
- I - VIN Number
- J - Gross Vehicle Weight
- K - Gross Train Weight
- L - Front Axle Weight
- M - Rear Axle Weight


VIN/Certification/Tire Data Label - NAS only





The Certification Label contains the following VIN information:
- A - VIN Number
- B - Bar code identification


VIN/Tire Pressure Specification Label - Canada only





The Tire Pressure Certification Label contains the following VIN information:
- A - VIN Number
- B - Vehicle Type

Unit/Assembly Serial Number Locations


3.6 Litre V8 Diesel Engine Serial Number





The 3.6 Litre V8 Diesel Engine Serial Number is stamped on the RH side of the cylinder block.

4.4 Litre V8 Diesel Engine Serial Number





The 4.4 Litre V8 Diesel Engine Serial Number is stamped on the RH side of the cylinder block.

5.0 Litre SC and 5.0 Litre NA V8 Petrol Engine Serial Number





The 5.0 Litre SC and 5.0 Litre NA V8 Petrol Engine Serial Number is stamped on the LH side of the cylinder block.

Transmission Serial Number

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.





The transmission serial number is on a plate attached to the LH side of the transmission casing.

Front Differential Serial Number





The Front Differential Serial Number is stamped on top of the differential casing and is located above the removable cross member.

Rear Differential Serial Number





The Rear Differential Serial Number is stamped on the underside of the differential casing adjacent to the front mounting.

Transfer Case Serial Number





The Transfer Case serial number is stamped on the RH side of the transfer case and may also be on a bar coded self-adhesive label attached to the case.
