Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2011
>>
Range Rover Sport (LS) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C1254 - C1300
C1254 - C1300

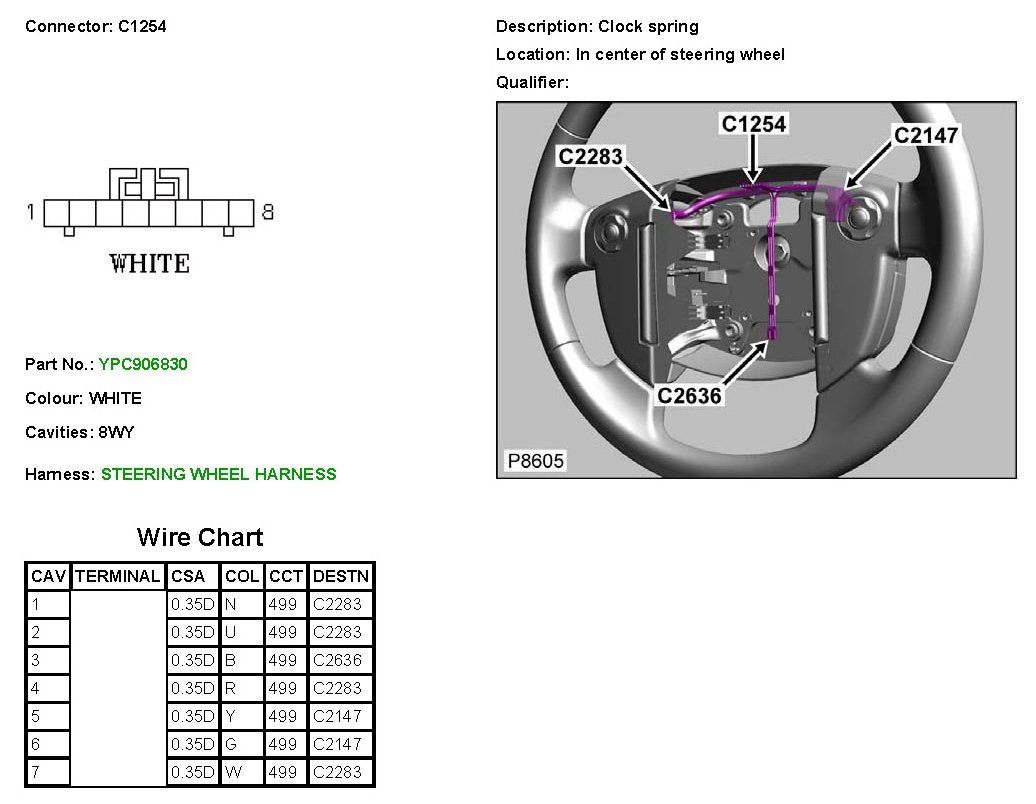

C1254
C1254:
