Condenser HVAC: Service and Repair

Condenser Core
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

NOTE:
Removal steps in this procedure may contain installation details.

WARNING: Make sure to support the vehicle with axle stands.

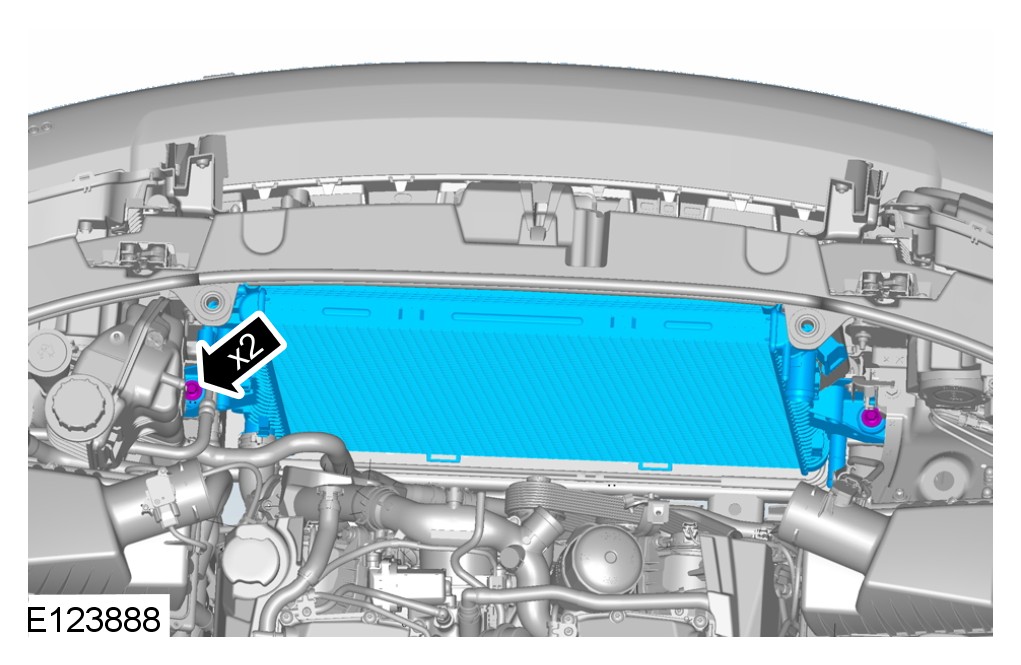

1 Raise and support the vehicle.
For additional information, refer to Air Conditioning (A/C) System Recovery, Evacuation and Charging Service and Repair
For additional information, refer to Radiator Grille Service and Repair
For additional information, refer to Coolant Pump Service and Repair
For additional information, refer to Cooling Fan - Vehicles With: Supercharger Service and Repair





NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

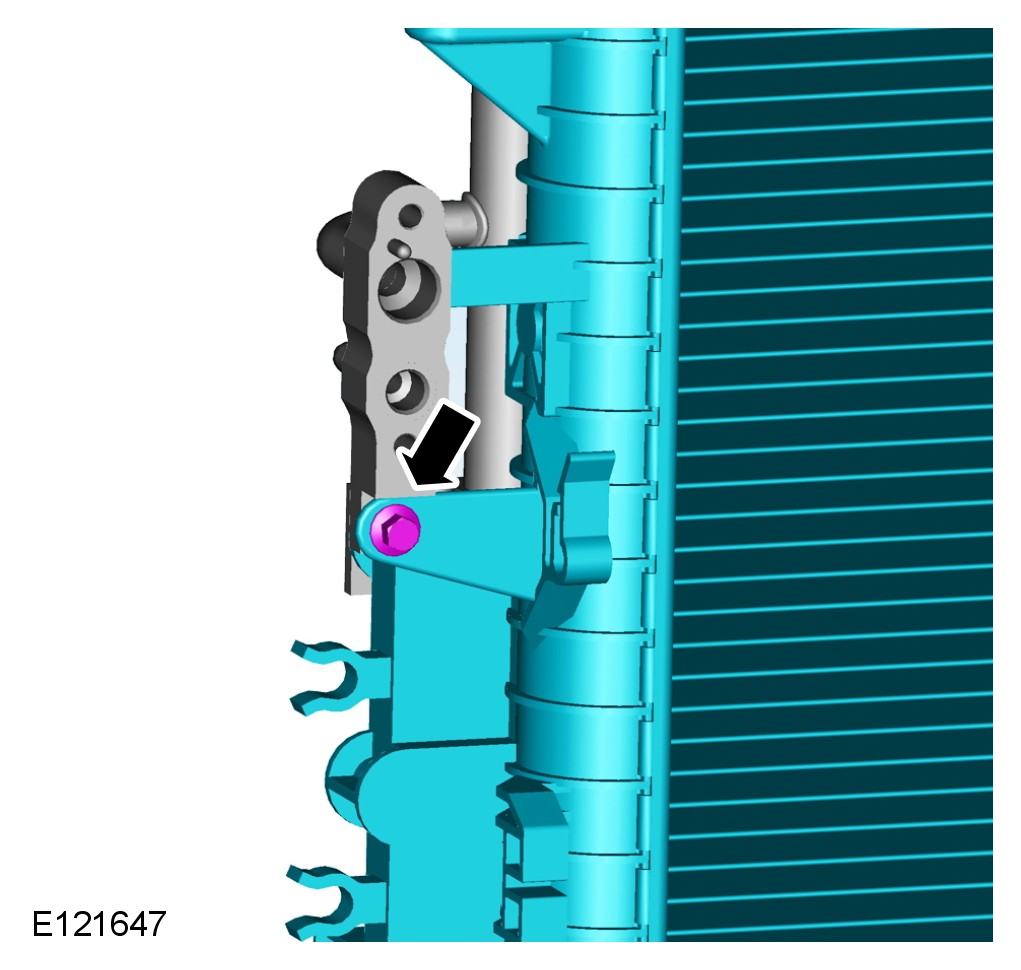

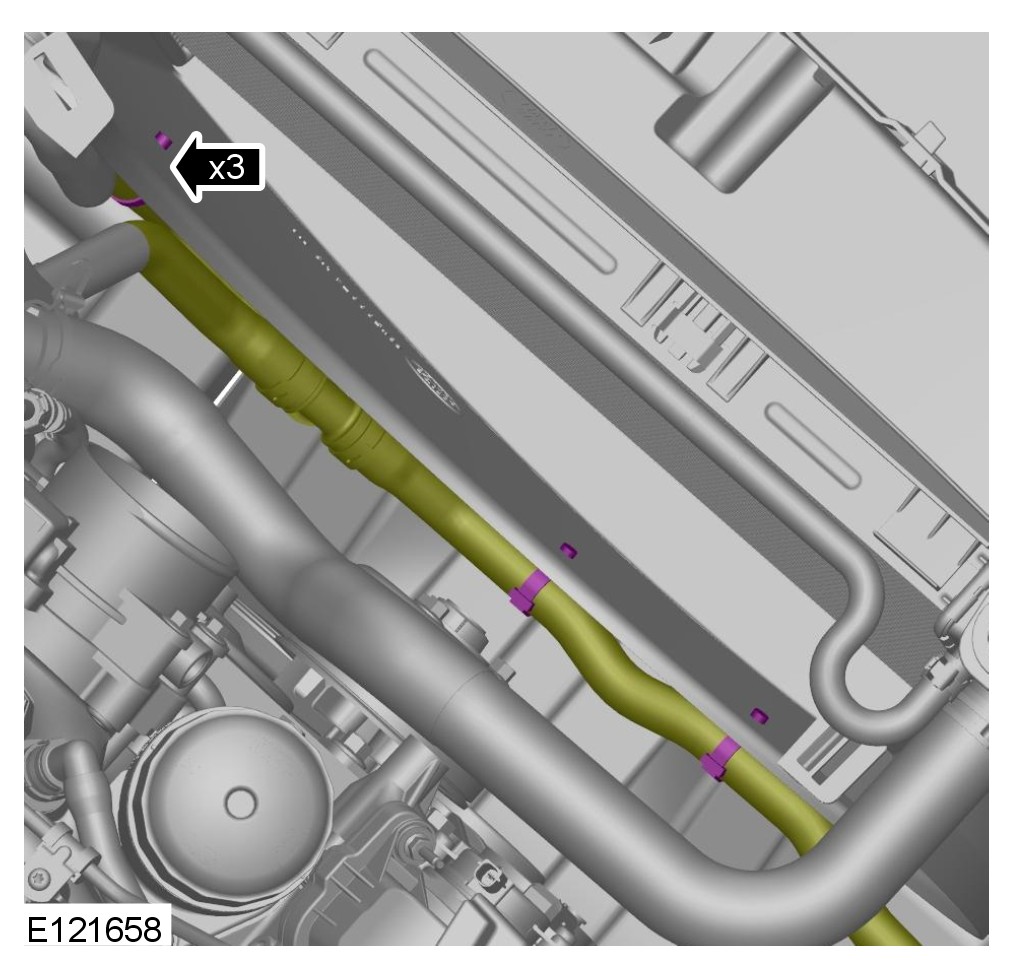

Torque to: 9 Nm





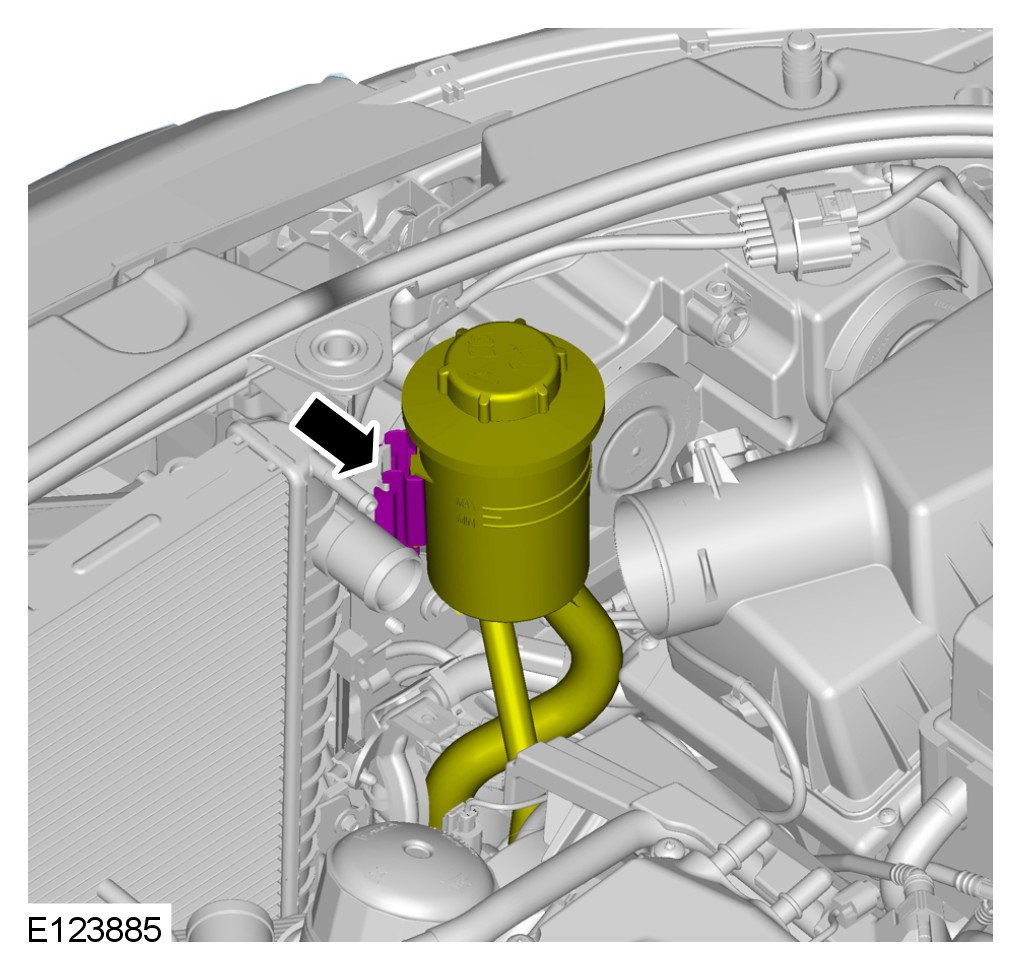

CAUTION: Always plug any open connections to prevent contamination.





NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

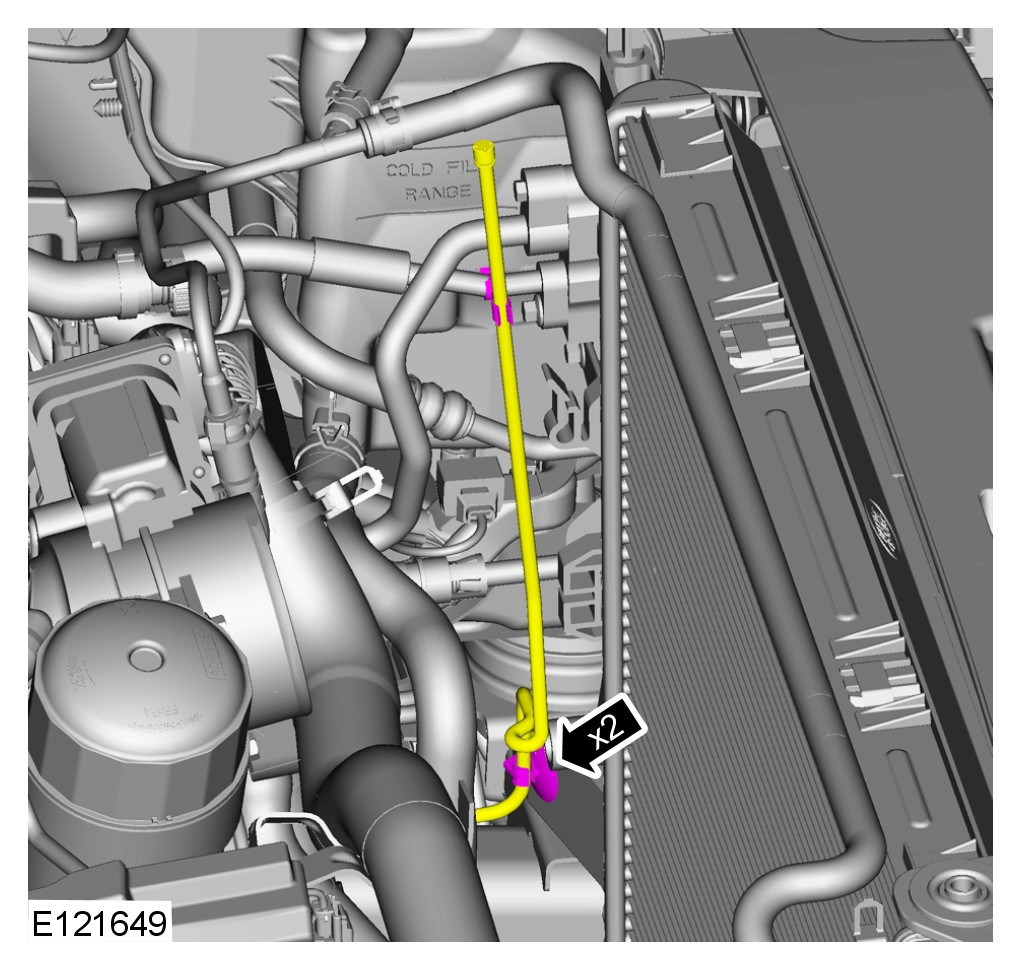

Torque to: 9 Nm

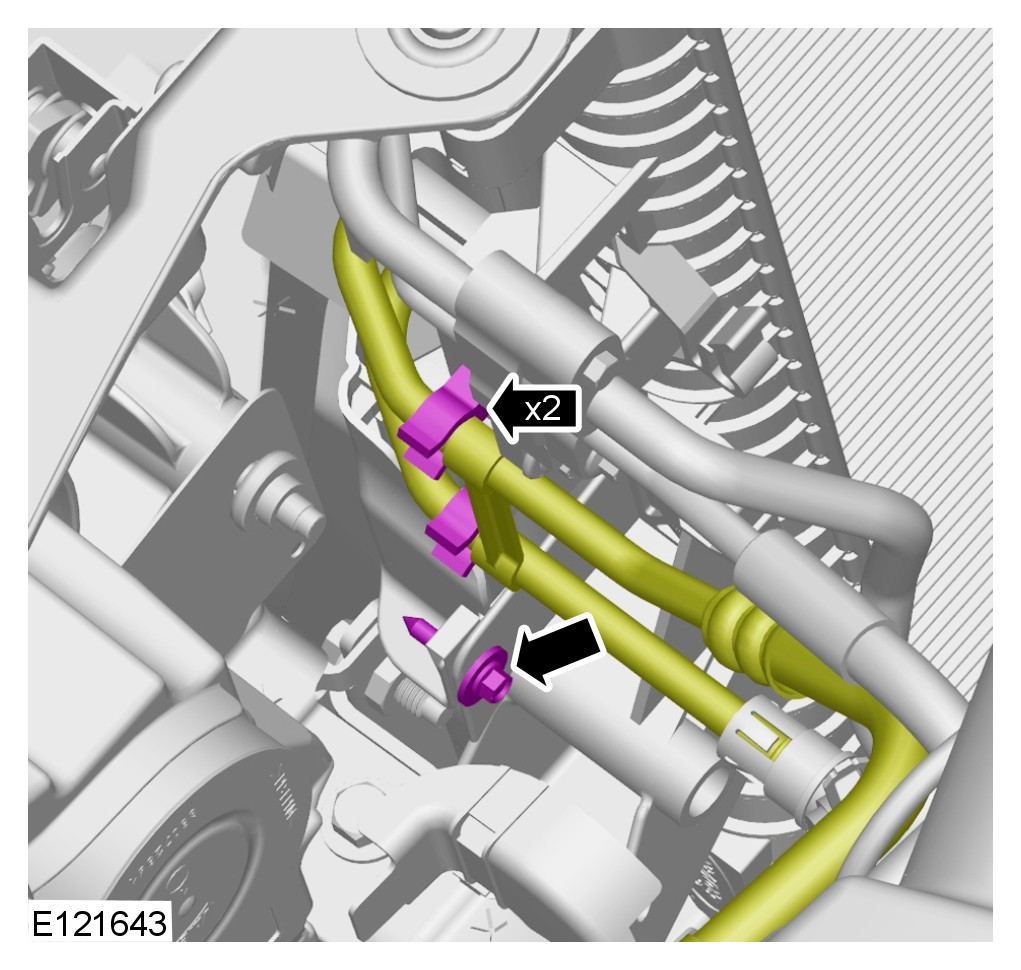

CAUTION: Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.

Torque to: 10 Nm





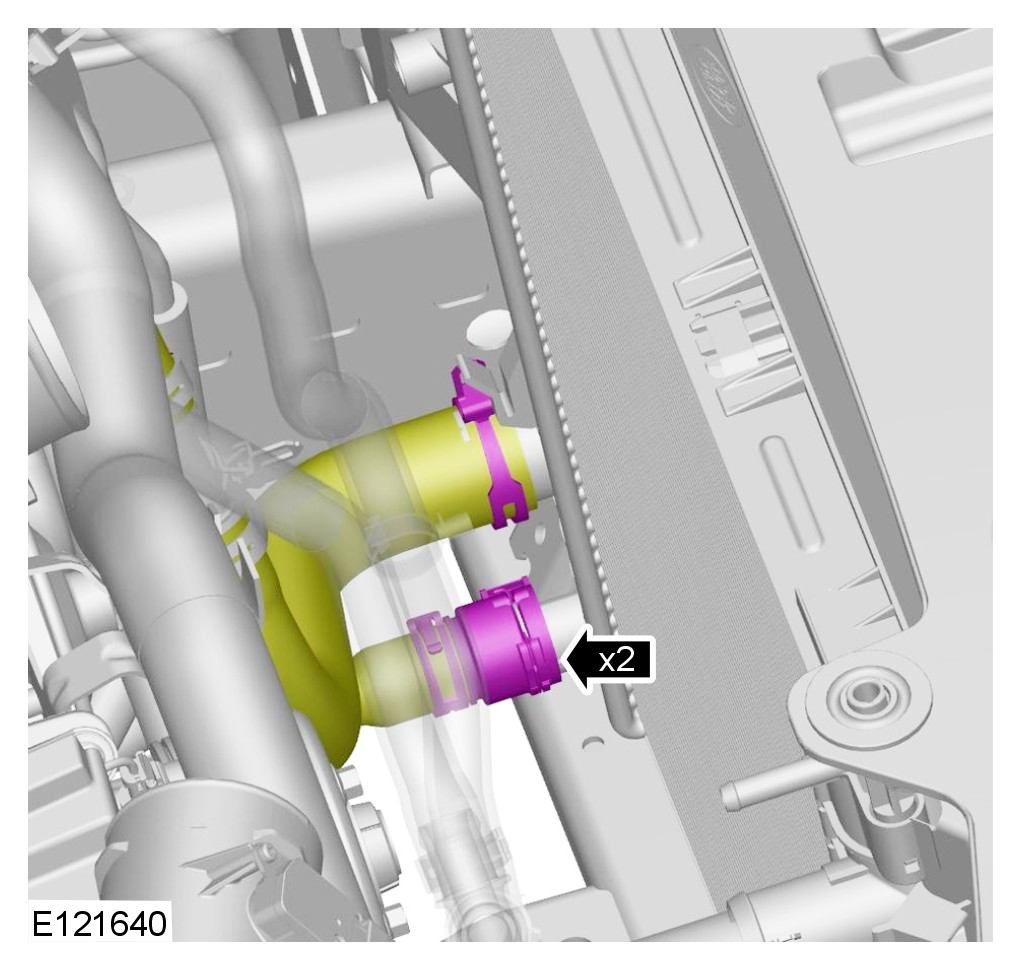

CAUTION: Be prepared to collect escaping coolant.

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

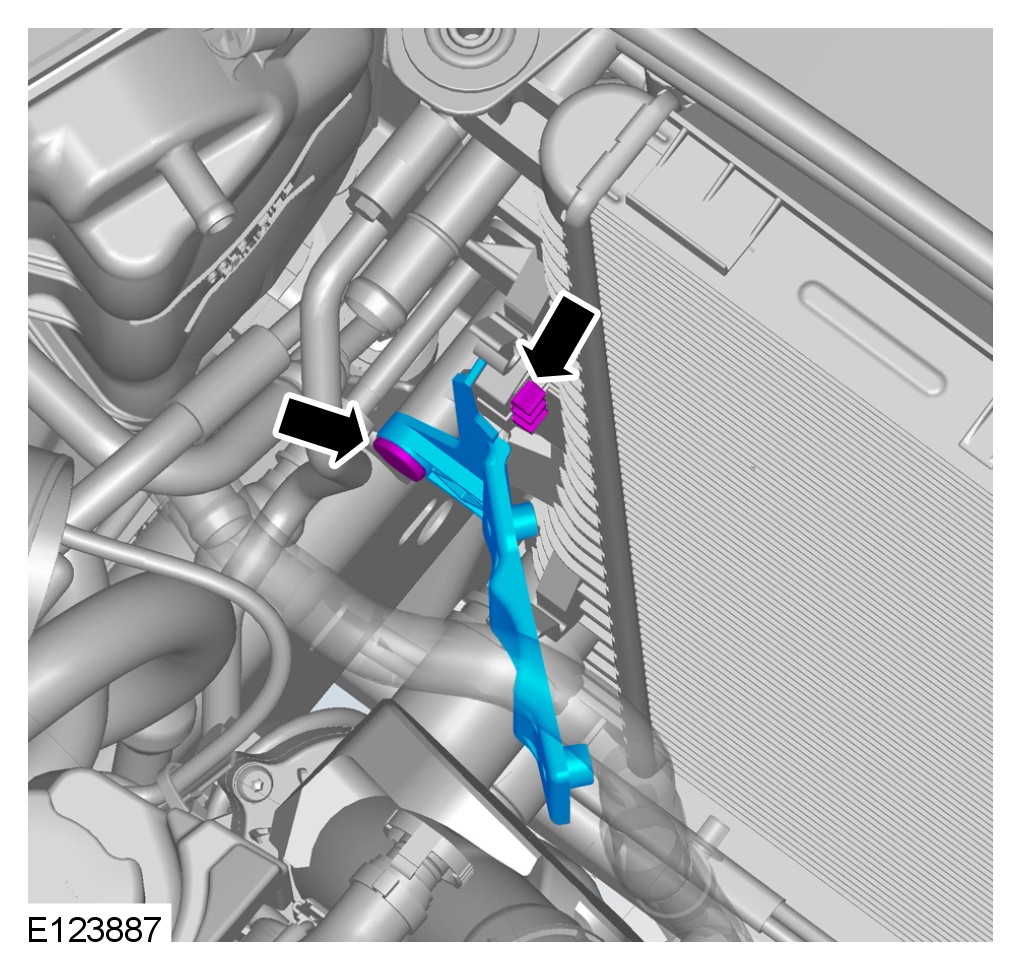

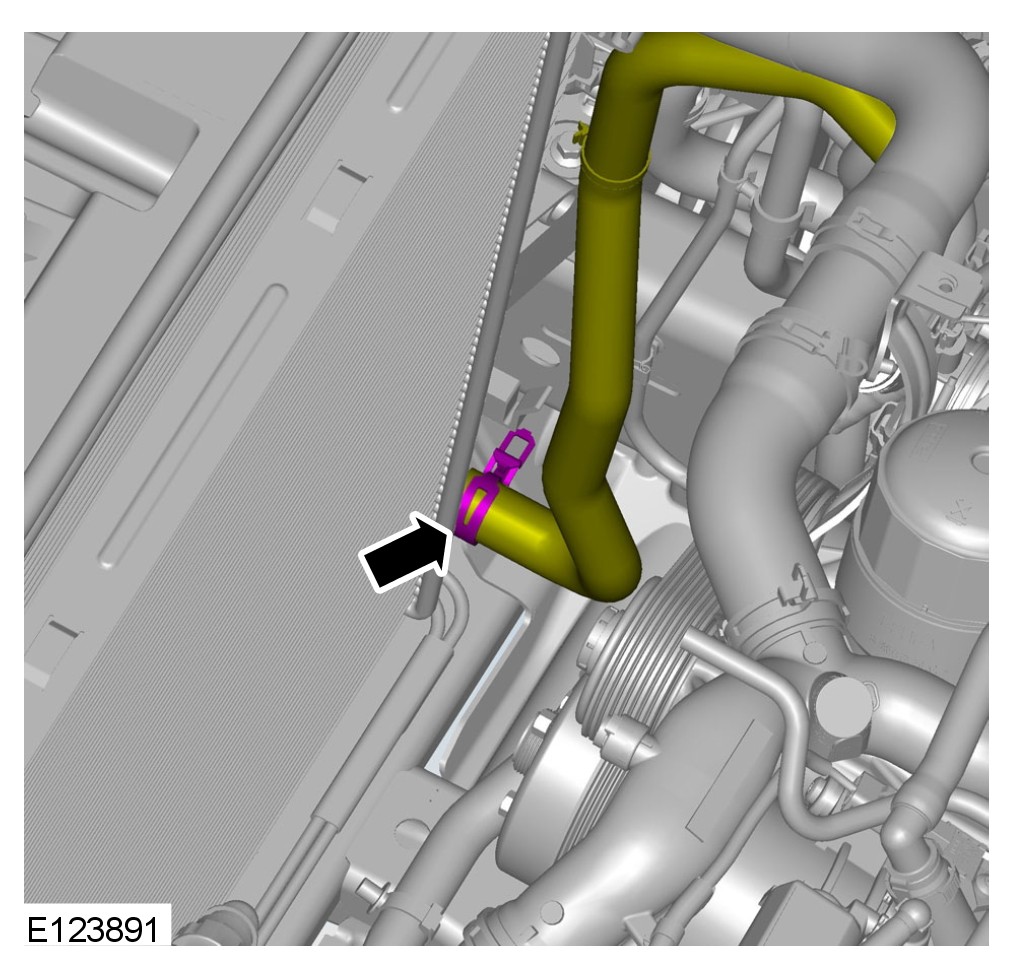

CAUTION: Be prepared to collect escaping coolant.













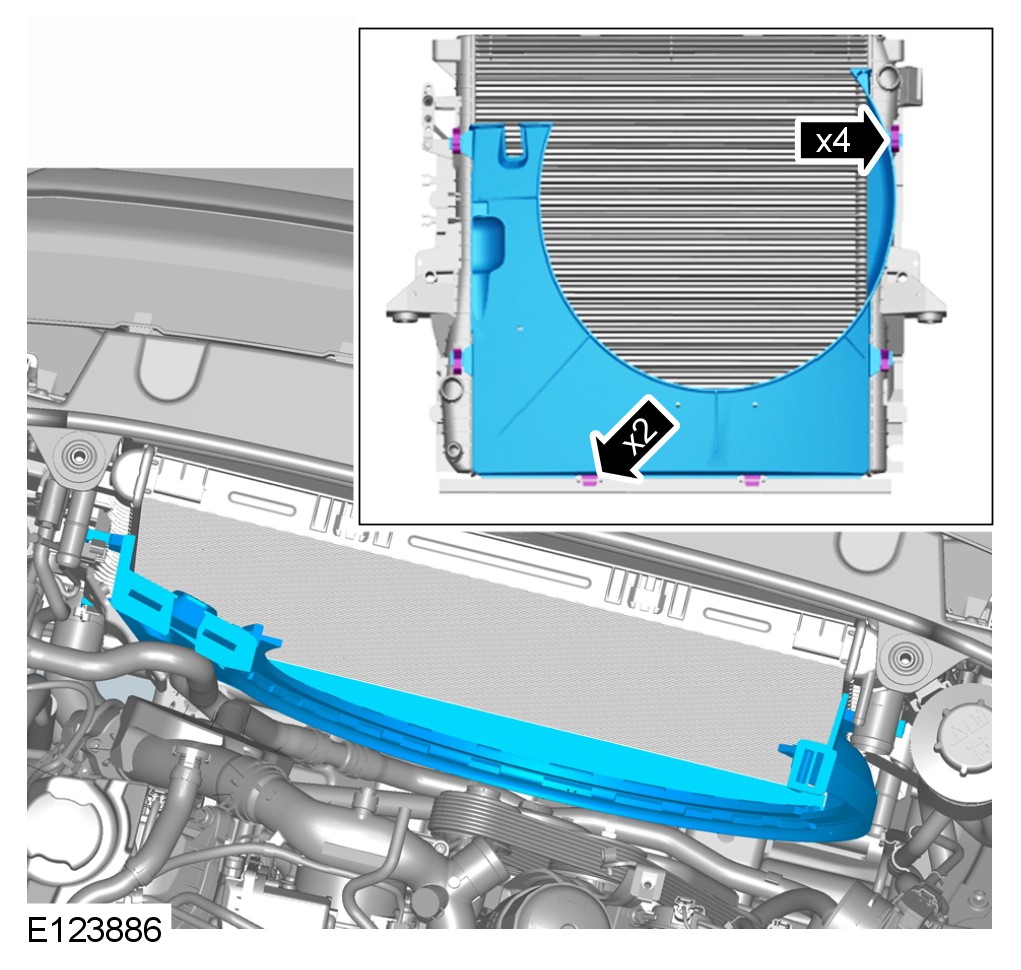

CAUTION: Always protect the cooling pack elements to prevent accidental damage.

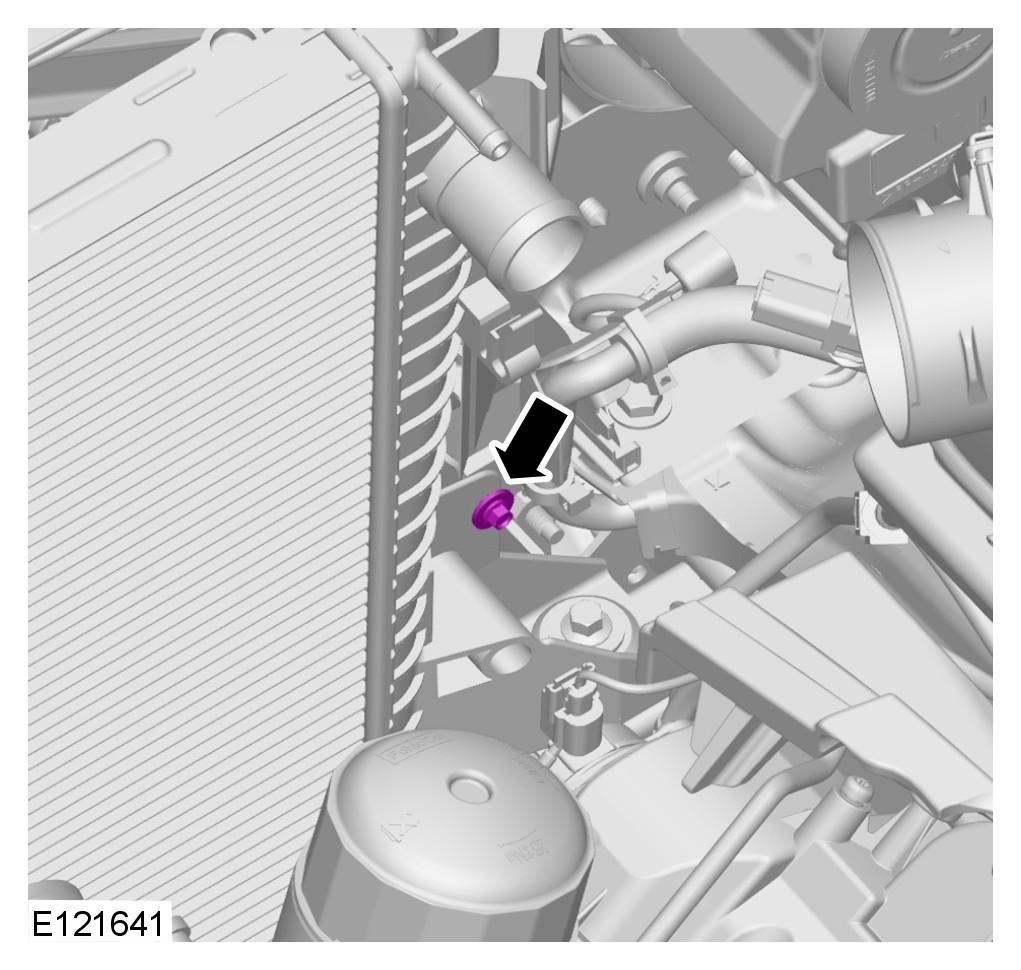

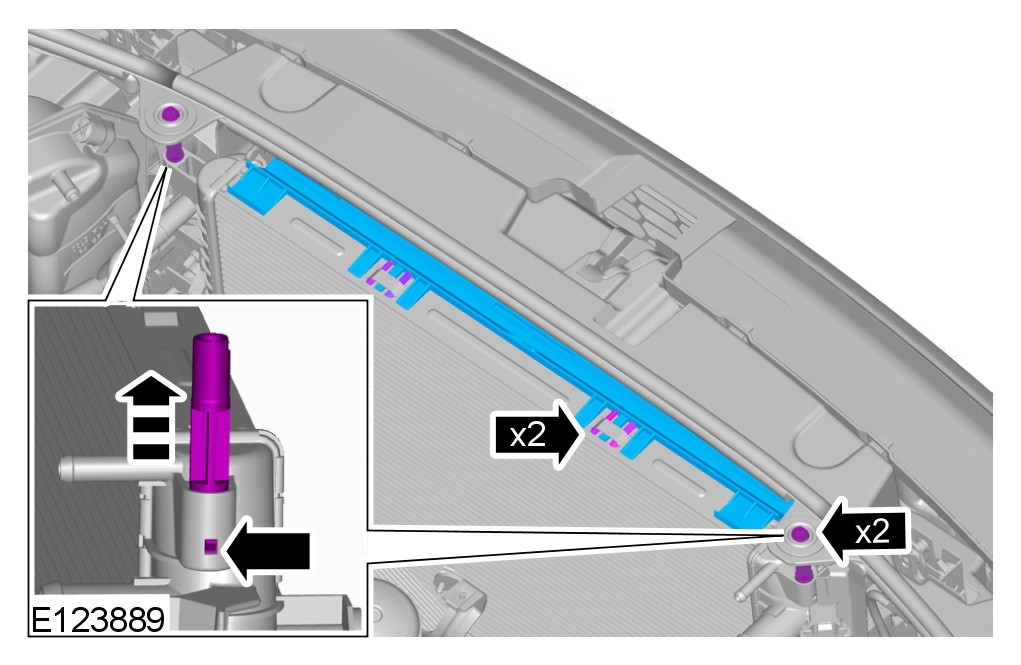

Torque to: 25 Nm





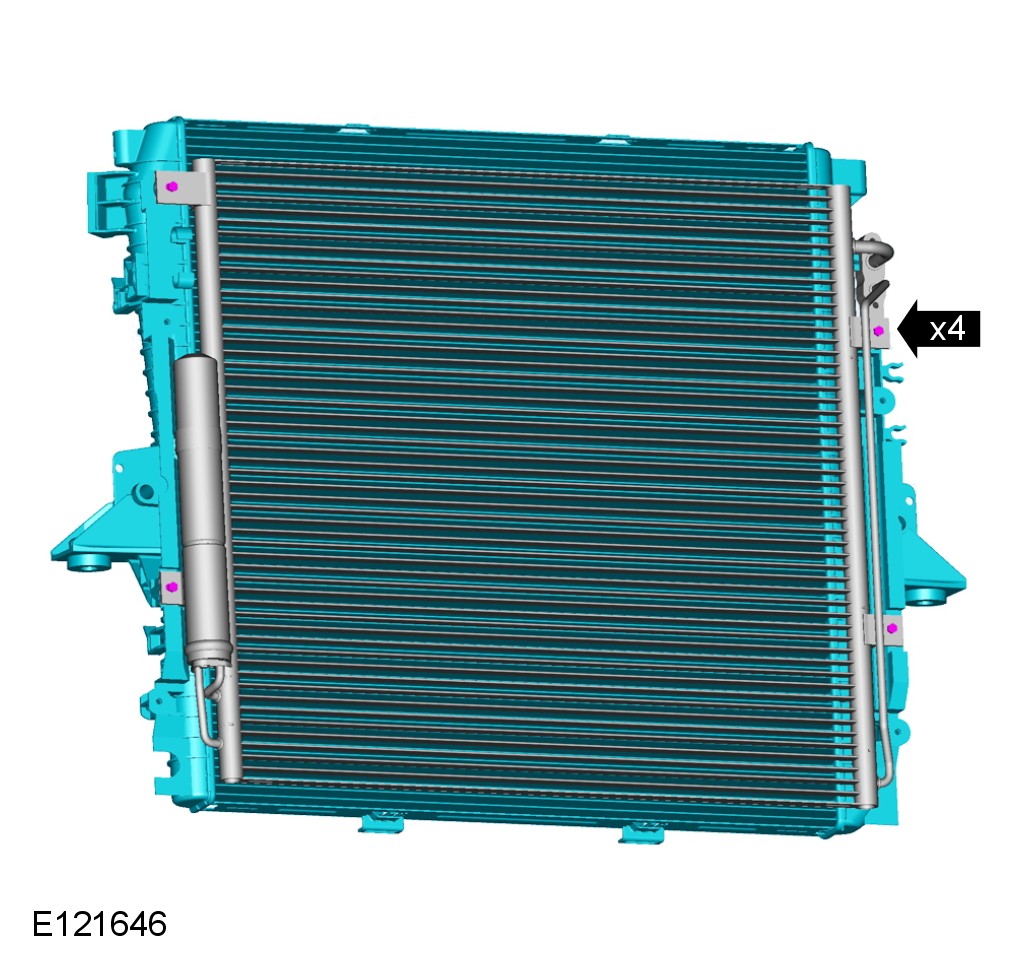

Torque to: 10 Nm





Torque to: 10 Nm





Torque to: 10 Nm

Installation
1 To install, reverse the removal procedure.
