Part 1
Exterior Lighting
Exterior Lighting Component Location
GENERAL
The exterior lighting system comprises the following exterior lamps:
- Front and rear side lamps
- License plate lamps
- Side marker lamps (if fitted)
- Front and rear turn signal indicator lamps
- Turn signal indicator repeater lamps
- Stop lamps and high mounted stop lamp
- Reversing lamps
- Rear fog lamps
- Front fog lamps (if fitted)
- Cornering/Static bending lamps (if fitted) - All except NAS
- Low and high beam headlamps
- Adaptive Front lighting System (AFS) (if fitted).
The exterior lighting system also has the option of an auto headlamp feature and a high beam assist feature.
Exterior Bulb Type/Rating
The following table shows the bulbs used for the exterior lighting system and their type and specification.
The bulbs and the Light Emitting Diode (LED)'s are driven by Metal Oxide Semiconductor Field Effect Transistors (MOSFET's) within the Central Electronics Module (CEM) which is an integral component of the Central Junction Box (CJB). An exception to this is the front and rear position lamps, front fog lamps and the reversing lamps which are supplied with power via relays within the CJB and are protected by conventional fuses.
CENTRAL JUNCTION BOX
The CJB is located behind the glove compartment and is connected to the vehicle wiring harness with 8 multiplugs.
The CJB receives four permanent battery power supplies via the Engine Junction Box (EJB).
The lighting circuits are not all protected by conventional fuses as some are protected by MOSFET's. The control circuitry within the CJB for each individual circuit can detect and isolate a problem circuit.
Failure of a lamp is not notified to the driver. If a turn signal indicator fails the turn signal warning indicator in the instrument cluster will flash at double speed.
Input Signals for Lamp Control
The CJB receives inputs from the following switches:
- Lighting control switch for side lamps, headlamps and auto headlamps (if fitted)
- Momentary push switches for front and rear fog lamps
- Left hand steering column multifunction switch for turn signal indicators and high beam/headlamp flash and high beam assist system
- Brake pedal switch
- Momentary push switch for hazard warning.
The switches are supplied with a 10mA supply from the CJB and switch to ground when operated. The CJB detects that a switch has been operated (ON) when its closing resistance is less than 100 Ohm and is detected as OFF when its resistance is more than 10K Ohm.

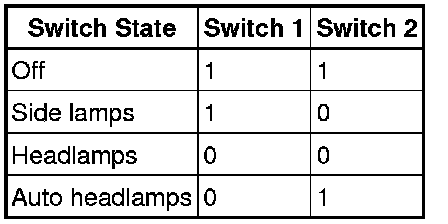

The lighting control switch uses a binary system which is detected by the CJB which determines the selected position. The output from the lighting control switch is shown in the following table:
The CJB also receives ignition status via hard wired connections from the stop/start switch.
A reverse gear engaged signal is also received on the high speed Controller Area Network (CAN) bus from the Transmission Control Module (TCM) to enable the CJB to activate the reverse lamps.
The CJB can receive a hazard warning indicator activation message from the Restraints Control Module (RCM), via the high speed CAN bus, in the event of a crash. The CJB can also activate the hazard warning indicators to signify vehicle locking to the driver.
On vehicles with high beam assist, the high beam assist control module outputs signals on the medium speed CAN bus to the CJB to control the high beam headlamps. Power for the high beam assist control module is supplied via a relay located in the EJB.
Circuit Protection
Operation of the lamps is performed using overload proof Metal Oxide Semiconductor Field Effect Transistors (MOSFETs). The MOSFETs can detect overload, load interruption with the lamps switched on and short circuit to positive with the lamps switched off.
The MOSFETs are protected against short circuits, removing the requirement for the lamps circuits to be protected by fuses. The MOSFETs respond to heat generated by increased current flow caused by a short circuit. Normally this would cause the fuse to blow. The MOSFETs react to the heat increase and cut the supply to the affected circuit. Once the fault has been rectified or the MOSFET has cooled, the MOSFET will automatically reset and operate the circuit normally.
If an overload occurs, the current flow is dependant on the temperature of the related MOSFET and can be up to 20 times the rated current of the lamp. The MOSFET heats up and deactivates the load applied to the circuit. When the MOSFET cools the circuit is once again reactivated. This thermal cycling occurs continuously in the event of an overload occurring.
A number of lamps are controlled by relays and these circuits are protected by conventional fuses.
Bulb Monitoring
Bulb failure monitoring is performed by the CJB processor. The lamps are cold and warm monitored by the MOSFETs in order to detect bulb failure.
NOTE:
Relay controlled lamps have no diagnostic monitoring.
The CJB processor provides outputs to each MOSFET. The output switches the MOSFET to supply the required output to power the applicable lighting circuit. The microprocessor evaluates the circuits by detecting the returned signals from the controlling MOSFET.
When the bulb or LED is functioning normally, the output signal voltage from the controlling MOSFET is 0V. If a bulb or LED in the circuit fails, an open circuit occurs and the MOSFET outputs a signal of 5V to the processor. The signal is interpreted as a bulb or LED failure and generates a Diagnostic Trouble Code (DTC) which can be retrieved using an approved Land Rover diagnostic system.
Warm monitoring is performed continuously when the lights are switched on by evaluating the diagnostic output of the MOSFET switches. Cold monitoring is performed at 32 second intervals when the lights are switched off. The MOSFETs briefly switch on the lights for approximately 1 millisecond (this is insufficient to illuminate the bulb or LED) and checks the bulb or LED as per warm monitoring.
When a xenon bulb fails, the control module's current consumption falls to 60mA, which the CJB detects as unsuccessful bulb illumination.
Alarm Indications
The CJB can also display alarm visual indications for alarm arm, disarm and triggered conditions.
If the hazard warning lamps are active when a lock or unlock request is made, the hazard warning cycle is interrupted to allow the visual indication of the requested lock cycle. When visual indication is completed, the hazard warning operation will continue.
If the vehicle is involved in crash of a severity for the RCM to initiate deployment of the airbags, the control module outputs a hazard warning lamps on request on the medium speed CAN bus to the CJB. The hazard warning lamps will be activated and will continue until the RCM outputs a message to deactivate the hazard warning lamps.
Redundant Data Storage
The CJB stores data relating to the Vehicle Identification Number (VIN), total mileage and service interval indicator. This data is received by the CJB from the instrument cluster and used as a back-up in the event of instrument cluster replacement.
If the CJB is to be replaced, an approved Land Rover diagnostic system must be connected to the vehicle and the CJB replacement procedure followed to ensure that the stored data is transferred to the new unit.
Low Voltage Operation
If the battery voltage falls below 11.2V, the CJB operates the minimum lighting to preserve the remaining battery charge.
Crash Signal Activation
In the event of an accident of a severity to activate and deploy the airbags, the RCM requests various electrical operations to assist with the crash situation. The RCM requests via the bus systems to the CJB to activate the hazard warning lamps.
Security System Activation
In the event of the security system being triggered, the CJB requests activation of the hazard warning lamps.
Instrument Panel and Switch Illumination Dimming
The CJB controls the instrument cluster backlighting illumination and also illumination of all instrument panel switches.
The CJB supplies a power output to all switch illumination bulbs with a 12V Pulse Width Modulation (PWM) supply determined by the position of the manual dimmer rheostat. The switch illumination is activated when the lighting control switch is in the side lamp or headlamp position.
LIGHTING CONTROL SWITCH

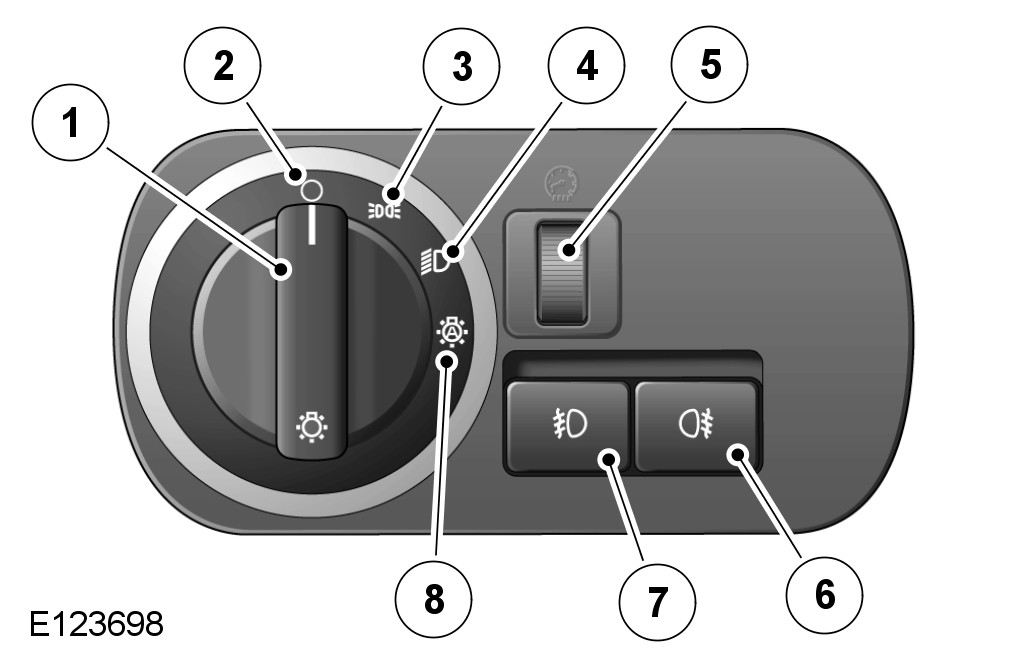

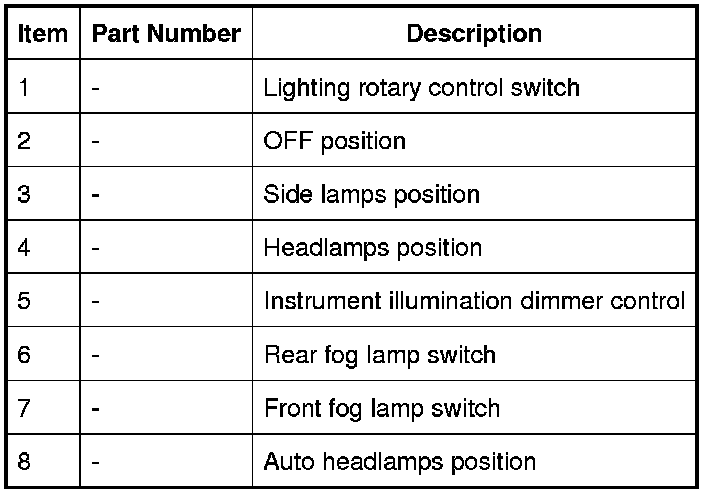

The lighting control switch is located in the driver's side of the instrument panel, below the outer fresh air vent. The switch contains a rotary switch for selecting the vehicle exterior lighting functions, a rheostat for instrument illumination dimmer, a front fog lamp switch and a rear fog lamp switch.
The rotary side and headlamp control switch has 2 connections to the CJB. These 2 connections supply a hardwired binary code to the CJB which correspond to the switch position selection made.
The front and rear fog lamp switches operate by completing earth paths for a reference voltage from the CJB when the switch is pressed. The fog lamp switches are momentary, non-latching switches which briefly complete an earth path which is sensed by the CJB.
Lighting Control Switch Illumination
The switch legends on the lighting control switch are illuminated at the same brightness as the instrument panel switches when the lighting control switch is moved from the 'O' (off) position to the side, headlamp or AUTO position.
Dimmer Control
The CJB provides a Pulse Width Modulation (PWM) output to control the illumination brightness of the instrument panel and other fascia illumination. The dimmer switch operates using a rotary thumbwheel which is connected to a rheostat.
The rheostat is a variable resistor which provides a high or low resistance according to its set position. The CJB provides an output to the rheostat measure the voltage passing through to ground. The CJB measures this voltage and uses it to calculate a PWM output to determine the brightness of the illumination.
Automatic Headlamps
Refer to Automatic Headlamps in this article.
HEADLAMP ASSEMBLY

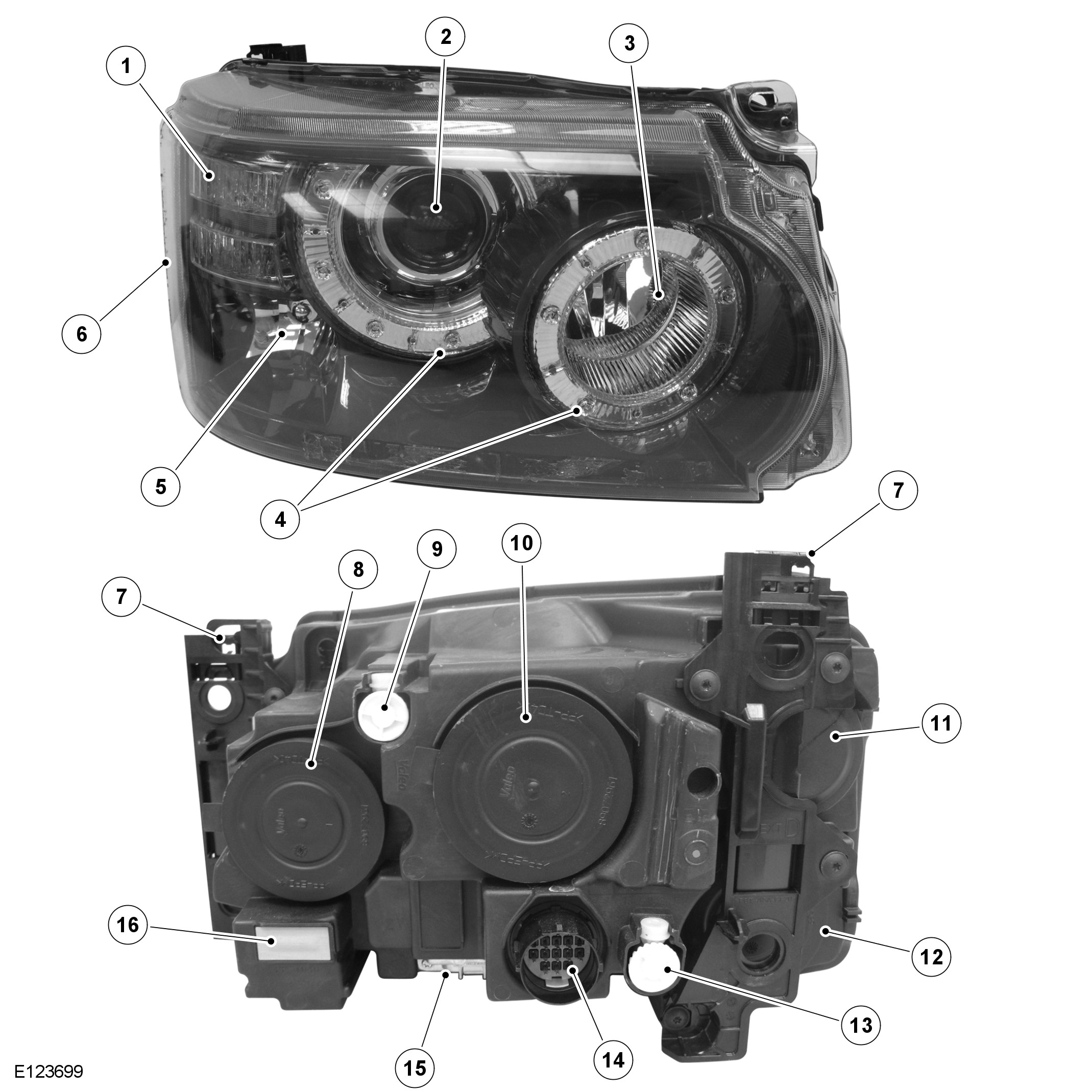

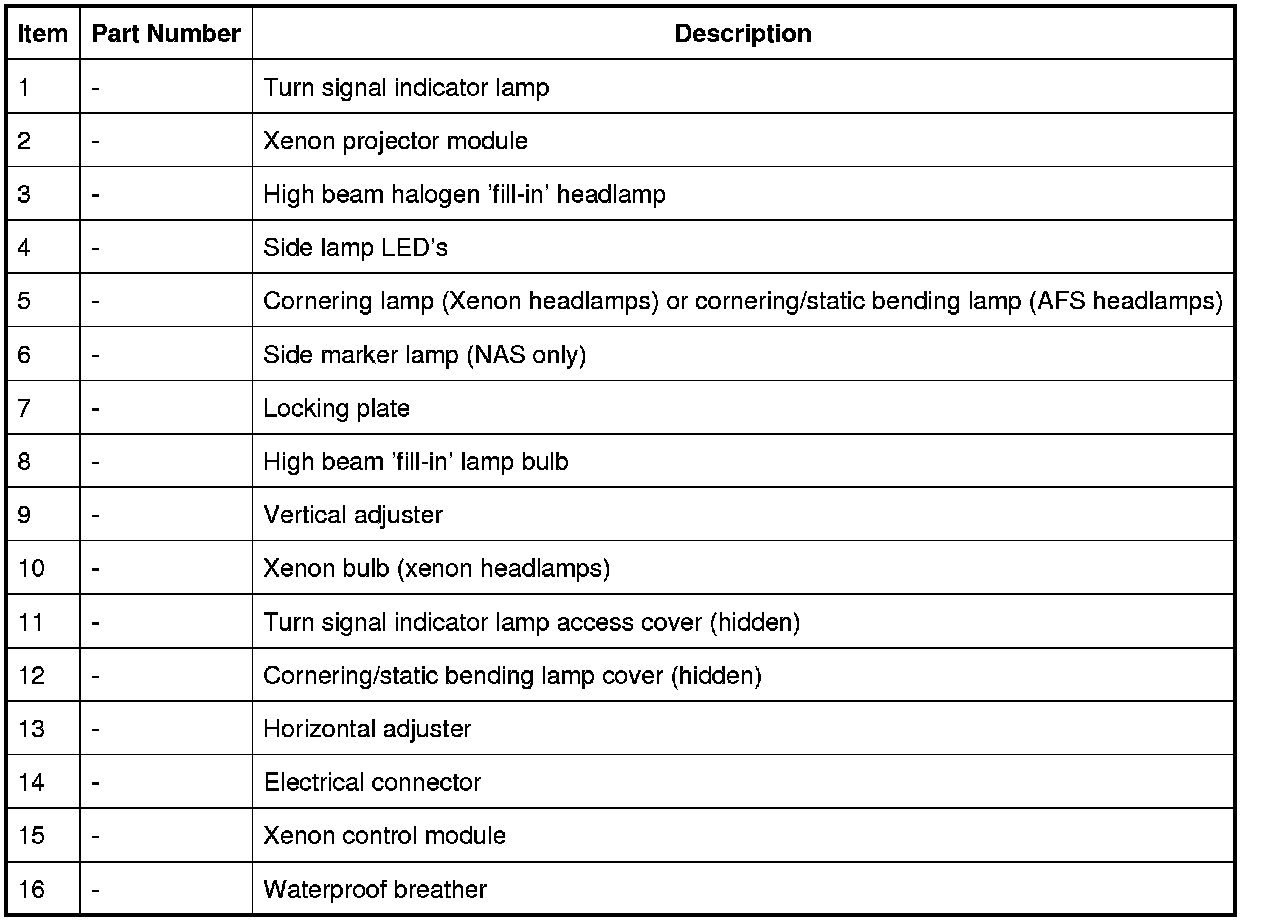

Two types of headlamp are available; Xenon or Xenon with Adaptive Front lighting System (AFS). The headlamps share a common, clear lens.
The headlamps are located behind the front carrier assembly. Each headlamp is secured to the front carrier assembly with two locking plates. The locking plate slides in grooves in the rear of the headlamp and two holes in each plate locate on pins on the carrier. Each locking plate is pressed down to lock the pins in the locking plate holes. The locking plates allow removal of the headlamp from the carrier for bulb changing without the requirement for special tools.
The rear of the headlamp unit has removable access panels which allow access to the bulbs for replacement. A large rubber cover allows access to the low/high beam bulb on both halogen and xenon headlamps. Another removable rubber cover provides access to the high beam only halogen bulb which is retained by a push fit. A smaller cover can also be rotated anti-clockwise to provide access to the turn signal indicator lamp bulb. The indicator bulb is a PY24WY SV+ orange bulb and is clipped into the cover and is pulled to remove. Below this cover is a removable cover which provides access to the side lamp bulb on halogen headlamps or the cornering lamp/static bending lamp bulb on xenon headlamps and the side marker lamp bulb on NAS models. On xenon headlamps the side lamps are LED's and therefore are not serviceable components.
The headlamps have two adjustment screws on the rear which allow for the manual setting of the vertical and horizontal alignment. On NAS vehicles the headlamp is regarded as Visual Optically Left (VOL) aiming. Refer to the Service Repair Procedures manual for headlamp alignment data.
Each headlamp has an integral sixteen pin connector which provides inputs and outputs for the various functions of the headlamp assembly. The usage of the pins differs between model variants, refer to the Electrical Reference Library (ERL) for pin details.
The low beam headlamps are switched on when the ignition is in ignition mode 6 and:
- the lighting control switch is in the headlamp position
- the lighting control switch is in the AUTO position and a 'lights on' signal is received by the CJB from the rain/light sensor.
The low beam headlamps can also be operated by the headlamp delay feature.
The high beam headlamps are switched on when the ignition is in ignition mode 6 and:
- the low beam headlamps are selected on in the headlamp position or activated via the AUTO feature
- The left hand steering column multifunction switch is pushed forward away from the driver
- The high beam assist system (if fitted) has switched on the high beam headlamps.
The high beam headlamps will be switched off when:
- The left hand steering column multifunction switch is moved rearward towards the driver
- The low beam headlamps are switched off
- The ignition mode is changed to the accessory mode 4 or ignition off
- The high beam assist system (if fitted) has switched off the high beam headlamps.
Common Headlamp Features
Turn Signal Indicator Lamp
The turn signal indicator lamp is incorporated into the outer part of the headlamp assembly. The lamp is located above the static bending/cornering lamp. The turn signal indicator lamp uses a PY24W SV+ orange colored bulb. The bulb is connected via contacts on the headlamp housing to the main connector in the headlamp housing. The holder is fitted with a seal and is located into an aperture in the headlamp housing and rotated to lock into position. Access to the bulb requires removal of the headlamp from the front carrier assembly and removal of the outer locking plate from the headlamp and partial removal of the rubber bulb cover.
The turn signal indicator lamps are operated by the left hand steering column multifunction switch or by the hazard flasher switch. The steering column multifunction switch is only active with the ignition in ignition mode 6 (ignition on), the hazard flasher switch is active at all times. When active, the turn signal indicator lamps will flash at a frequency cycle of 400ms on and 400ms off.
If a bulb fails, the remaining turn signal indicator lamps bulbs continue to flash at normal speed. The turn signal indicators in the instrument cluster will flash at double speed to indicate the failure to the driver.
Side Lamp
The side lamps are LED's. The 10 LED's are arranged around the outer part of the halogen fill-in lamp and the xenon projector module.
The side lamps are operated by selecting side lamps or headlamps on the lighting control switch. The side lamps are operational at all times and are not dependant on the ignition switch position. The side lamps will also be illuminated when the lighting control switch is in the AUTO position and a 'lights on' signal is received by the CJB from the rain/light sensor.
Cornering Lamp - Xenon (non-AFS headlamps only)
The cornering lamps are an optional feature designed to illuminate the direction of travel when cornering at low speeds. The design of the lens projects a spread of light from the vehicle at approximately 45 degrees to the vehicle axis.
The cornering lamp is incorporated into the outer part of the headlamp assembly and shares the same housing and reflector as the side lamp.
The cornering lamp uses a 35W Halogen H8 bulb which locates in a holder which is connected on the headlamp housing. The holder is located in an aperture in the headlamp housing and rotated to lock. The bulb is accessible via a removable cover at the rear of the headlamp housing.
The cornering lamps are controlled by the left hand steering column multifunction switch with the lighting control switch in the headlamp position and the ignition in ignition power mode 6. The cornering lamps are supplied power via the ignition circuit to ensure that they do not function with the headlamp delay feature. The cornering lamps are deactivated if the vehicle speed exceeds 25 mph (40 km/h).
Only one cornering lamp will illuminate at any one time. If the left hand turn signal indicators are selected on, the left hand cornering lamp will be illuminated and visa versa, providing the vehicle speed and lighting control switch positions are correct. Cornering lamps are disabled when reverse gear is selected.
Cornering/Static Bending Lamps (Xenon AFS headlamps only)
NOTE:
The static bending lamp function is not allowed in NAS market vehicles
The cornering/static bending lamps are a standard feature on AFS headlamps designed to illuminate the direction of travel when cornering at low speeds. The design of the lens projects a spread of light from the vehicle at approximately 45 degrees to the vehicle axis. The static bending lamps are powered by the CJB and controlled by the AFS control module. The cornering lamp functionality is controlled by the CJB as described for non-AFS headlamps.
The cornering lamp and static bending lamp is incorporated into the outer part of the headlamp assembly.
The cornering/static bending lamp uses a 35W Halogen H8 bulb which locates in a holder which is connected via wires to the main connector on the headlamp housing. The holder is located in an aperture in the headlamp housing and rotated to lock. The bulb is accessible via a removable cover at the rear of the headlamp housing.
AFS Control
On headlamps with AFS, the cornering lamp function is as described previously for the Xenon non-AFS headlamps.
The static bending lamps operate with a steering angle sensor signal which is received by the AFS control module. The AFS control module sends a static bending lamp on request to the CJB which activates the static bending lamp bulb.
The static bending lamp operation is variable with the speed of the vehicle and the steering wheel angle. The static bending lamps illuminate at 0 mph (0 km/h) when the steering wheel rotation reaches 20 degrees. At 43 mph (70 km/h) the static bending lamps will illuminate when the steering wheel angle reaches 10 degrees. The static bending lamps will be switched off when the vehicle speed exceeds 43 mph (70 km/h).
The operation of the static bending lamps is controlled by the AFS control module. When the operation parameters of the lamp are reached, the CJB switches the static bending lamp bulb on instantly. When the lamp is switched off, the CJB fades the bulb off by decreasing the PWM duty cycle from 100% to 0% over a period of 1 second.
