Part 2

Exterior Lighting

Xenon Headlamps
Safety Precautions

WARNING: The Xenon system generates up to 28000 volts and contact with this voltage could lead to fatality. Make sure that the headlamps are switched off before working on the system.
The following safety precautions must be followed when working on the xenon headlamp system:
- DO NOT attempt any procedures on the xenon headlamps when the lights are switched on.
- Handling of the D3S Xenon bulb must be performed using suitable protective equipment, e.g. gloves and goggles. The glass part of the bulb must not be touched.
- Only operate the lamp in a mounted condition in the reflector.
The xenon headlamps use a complex surface reflector for the Halogen fill in high beam lamp only lighting unit, which is of the same design as the high beam unit used on the Halogen headlamps. This type of reflector has the reflector divided into separate parabolic segments, with each segment having a different focal length.
The high beam bulbs are quartz halogen H7, with a rating of 55W. The bulbs are retained in the headlamp unit with conventional wire retaining clips.
The Bi-Xenon (the Bi-Xenon trademark is the property of Hella KGaA Hueck & Co., Germany) projector module headlamp operates as both low beam and high beam headlamp unit. The Xenon lamp (or High Intensity Discharge (HID) lamp), comprises an ellipsoidal lens with a solenoid controlled shutter to change the beam output from low to high beam. The bulb is retained with a locking ring which must be rotated to facilitate removal of the D3S bulb.

NOTE:
If the lighting control switch is in the OFF position, the xenon lamps do not operate when the high beam 'flash' function is operated. If the lighting switch is in the headlamps position or AUTO position with the low beam lamps active, the xenon low beam will remain on when the high beam 'flash' function is operated.
The xenon headlamp system is controlled by the CJB using a control module for each headlamp and an igniter. The control modules and the igniters provide the regulated power supply required to illuminate the xenon bulbs through their start-up phases of operation.

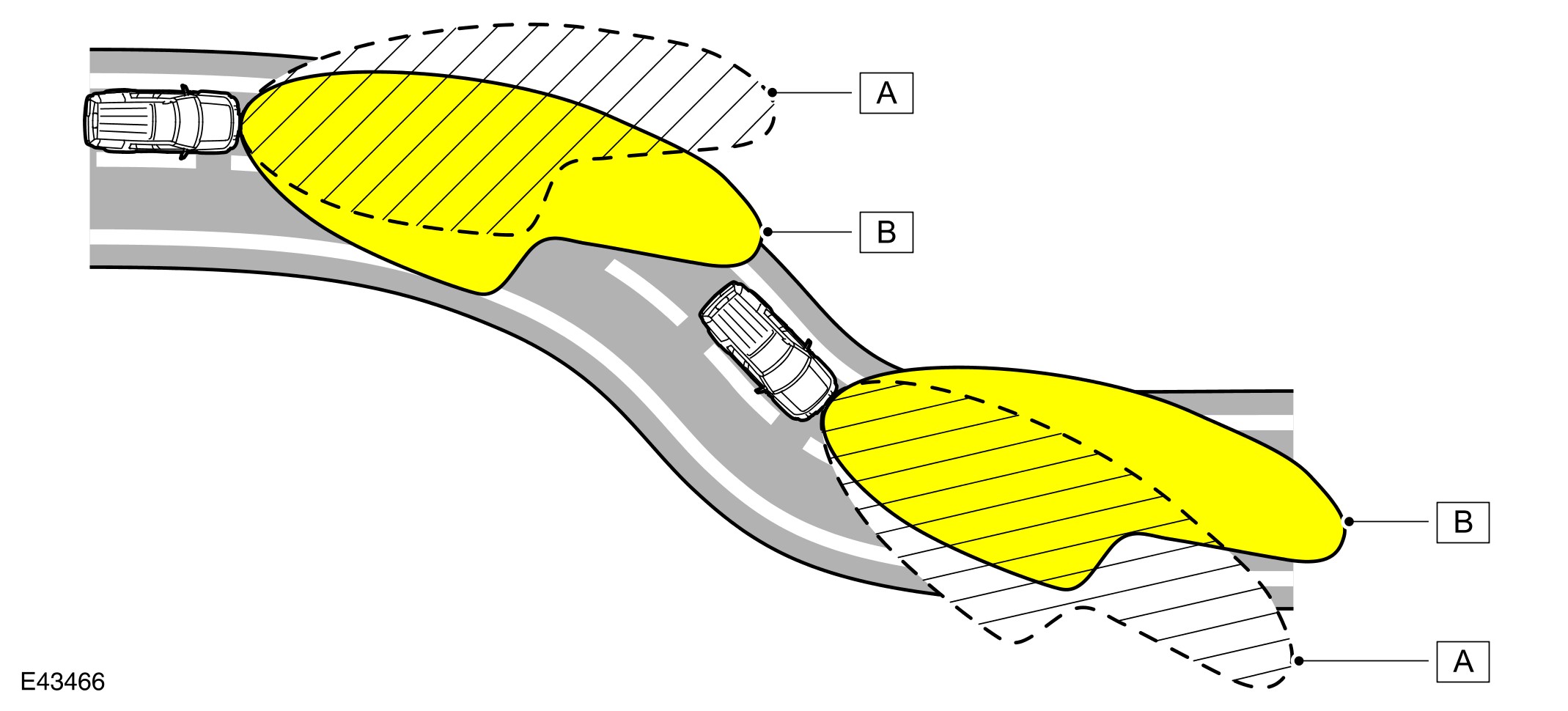

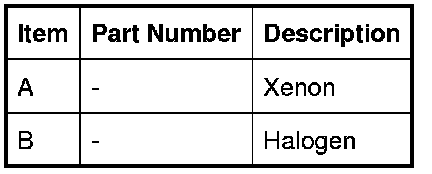

Xenon/Halogen Headlamp Beam Comparison









The Xenon low/high beam headlamps use ellipsoidal technology for the lens and reflector providing improved night time visibility compared to conventional halogen headlamps. The Xenon headlamps provide the following benefits when compared to halogen headlamps:
- Longer bulb life - Approximately 3 to 5 times longer than a halogen bulb
- Increased light output - Xenon headlamps output 3 to 4 times more light on the road surface than halogen headlamps
- Blue/White light which is closer to natural daylight - Xenon lamps produce a blue/white light compared to a yellow light produced by a halogen bulb
- Improved night time driving visibility - Xenon lamps produce a wider and brighter beam in front of the vehicle than conventional halogen bulbs
- Lower running temperatures
- Lower power consumption
- Mercury free.

Xenon Headlamp Construction









The Xenon headlamp is a self contained unit located within the headlamp assembly. The unit comprises a reflector, an adaptor ring, the lens, a shutter controller and the Xenon 35W D3S bulb, which as an assembly is known as the projector module.
The reflector is curved and provides the mounting for the xenon bulb. The bulb locates in a keyway to ensure correct alignment in the reflector and is secured by rotating a locking ring on the projector module to lock. The bulb has a pin connector which is a push to lock fitting.
The shutter controller is a solenoid which operates the shutter via a lever mechanism. The shutter is used to change the beam projection from low beam to high beam and visa versa.
A tourist lever mechanism is located on the right hand side of the projector module. This mechanism moves to blank off a portion of the beam spread to enable the vehicle to be driven in opposite drive hand markets without applying blanking decals to the headlamp lens. The beam is changed by removing the access cover at the rear of the lamp assembly and moving a small lever located near the bulb holder, at the side of the projector module. Make sure that the headlamps are off before removing the access cover.
The Xenon bulbs illuminate when an arc of electrical current is established between two electrodes within the bulb. The xenon gas sealed in the bulb reacts to the electrical excitation and the heat generated by the current flow. The xenon gas reaction to the controlled current flow between the electrodes produces the blue/white light.
To operate at full efficiency, the xenon bulb goes through three stages of operation before full output for continuous operation is achieved. The three phases are; start-up phase, warm-up phase and continuous phase.
In the start-up phase, the bulb requires an initial high voltage starting pulse of 18000 to 28000 volts to establish the arc. This is produced by the igniters. The warm-up phase begins once the arc is established. The Xenon control modules regulate the supply to the bulbs to 2.6A which gives a lamp output of 75W. During this phase, the Xenon gas begins to illuminate brightly and the environment within the bulb stabilizes ensuring a continual current flow between the electrodes. When the warm-up phase is complete, the xenon control modules change to continuous phase. The supply voltage to the bulb is reduced and the operating power required for continual operation is reduced to 35W.
The Xenon system is controlled by the CJB, the two xenon control modules and the two igniters. The xenon control modules (one per headlamp) receive an operating voltage from the CJB when the headlamps are switched on. The modules regulate the power supply required through the phases of start-up.
The igniters (one per headlamp) generate the initial high voltage required to establish the arc. The igniters have integral coils which generate high voltage pulses required for start-up. Once the xenon bulbs are operating, the igniters provide a closed circuit for regulated power supply from the control modules.

ADAPTIVE FRONT LIGHTING SYSTEM (AFS)
The AFS is a system to improve driver visibility under differing driving conditions. AFS provides a larger visible area which is illuminated when cornering by adjusting the position of the beam distribution on the road. Horizontal adjustment is made automatically to the most suitable orientation for the driving conditions using steering angle and information from other vehicle sensors.
AFS is only available with adaptive Bi-Xenon headlamps. The 'Xenon' module within the headlamp is controlled by actuator motors which rotate the projector module on its horizontal axis to adjust the beam output to suit the cornering conditions and vehicle inclination. Only the adaptive bi-xenon lamp projector module swivels, the non adaptive xenon and halogen high beam lamp units remains static.
The AFS system is controlled by an AFS control module which is located at the bottom of the passenger side 'A' pillar. The control module controls the horizontal alignment of the adaptive Bi-Xenon projector module. The operation of the static bending lamp is controlled by the AFS control module, but powered by the CJB.

AFS Concept









AFS Control Module
The AFS control module is connected to the high speed CAN bus and receives inputs from other vehicle systems on the status of the following parameters:
- Steering angle - from steering angle sensor
- Vehicle speed - from ABS module
- Low beam status - from CJB
- Suspension height - from air suspension control module
- Odometer value - for diagnostics only
- Engine running - from ECM
- Gear position - From transmission control module or transfer box control module
- Engine crank - from ECM
- Exterior/interior temperature - for diagnostics only.
The AFS will only operate when the AFS control module receives an engine running signal on the CAN bus. When the engine running signal is received, the AFS control module performs an initialization routine which is only performed at engine crank (power mode 9).
The AFS will also function when the lighting control switch is in the AUTO position and the AFS control module receives a lights on signal from the rain/light sensor and an engine running signal.
The AFS control module then monitors the inputs from the other vehicle systems to control the AFS functionality according to cornering angles and vehicle speed.
The AFS control module is connected to each headlamp on a private Local Interconnect Network (LIN) bus. The AFS control module then drives the DC motor actuators inside the headlamp assembly.
The AFS control module controls the swiveling angle of each projector module using speed and steering angle signals. The angles of each projector module differ to give the correct spread of light, For example, when turning left, the Left Hand (LH) projector module will have a greater swiveling angle than the Right Hand (RH) projector module
Reverse mode disables the swivel function when reverse gear is selected. The AFS projector modules move to their central straight ahead position and the static bending lamp, if active, will go off. When reverse gear is deselected, the AFS projector modules will move to a position to match the steering angle and the static bending lamp will illuminate if the operating conditions are correct (for example vehicle speed above 1.86 mph (3 km/h).

Xenon Headlamp Assembly with AFS Construction
The AFS xenon headlamp construction is similar to the non-AFS xenon headlamp assembly. The AFS assembly contains an additional carrier frame which provides the location for the AFS components. The remaining lamps are as described previously for the Xenon headlamp assembly. The functionality of the static bending lamp on the AFS headlamp is different from the functionality of the cornering lamp on the xenon headlamp.
The carrier frame has a radial bearing at the top and a thrust washer at the bottom which provide the horizontal pivot points for the xenon projector module. The lamp module lower pivot has a splined end which locates in the mating splines of the AFS horizontal actuator motor. The carrier frame is suspended on two flexible mountings at the top which provide for the vertical pivot points for the xenon projector module which allow for the vertical adjustment of the projector module. The bottom of the carrier frame is attached to the AFS vertical actuator motor.
The AFS actuator motors are dc motors which are driven by a power output from the CJB in response to signals from the AFS control module.
The actuators contain a potentiometer which is connected via wires with gold plated connector pins to the AFS control module. The two wires to each actuator provide a feedback signal to the AFS control module to give the precise position of the xenon projector module.
The AFS control module receives vehicle speed signals from the ABS module to adjust the projector module vertically to increase the beam range as the vehicle speed increases.

Initialization
When the AFS control module receives an engine running signal, the control module performs the initialization procedure which ensures that the headlamps are correctly aligned on their horizontal axis.
The AFS swivel initialization is completed in less than 1 second. The LH and RH AFS motors flick the headlamps to calibrate the centre position of the headlamps.

Failure Mode
In the event of a failure of the AFS system, a warning indicator in the instrument cluster is illuminated to warn the driver. The AFS warning indicator illuminates when the ignition is in accessory power mode 4 or ignition power mode 6 and will flash continuously until the fault is rectified. The AFS warning indicator will also be illuminated if a failure of the steering angle sensor or the vehicle speed signal is detected.
Illumination of the AFS warning indicator does not necessarily mean that there is a fault with the AFS system. The fault may be caused by a failure of another system preventing the AFS system operating correctly.
The AFS control module performs a diagnostic routine every time AFS is requested. If any fault is found, the AFS control module will suspend the operation of the AFS function.
If the AFS system has failed with the xenon projector module in a position other than the correct straight ahead position, the AFS control module will attempt to drive the xenon projector module to the zero (straight ahead) position. If this is not possible, the AFS control module will lower the projector module using the leveling actuator motors to prevent excess glare to oncoming vehicles.
The AFS control module software can detect an internal failure of the control module control circuits. The control module will power the projector modules to the zero position and prevent further operation.
Faults can be investigated by interrogating the AFS control module using an approved Land Rover diagnostic system to check for fault codes.
