Fog/Driving Lamp: Adjustments

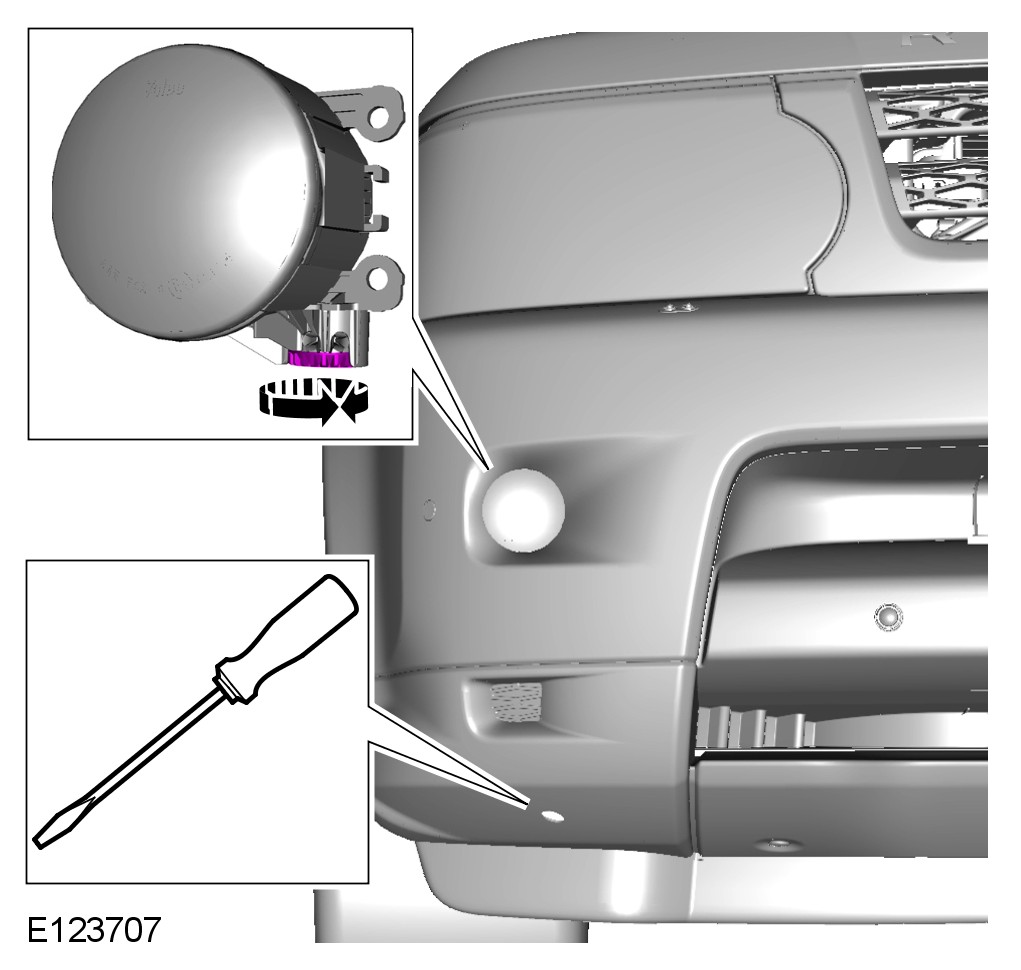

Front Fog Lamp Adjustment

NOTE:
With self leveling suspension, make sure the vehicle is at the standard ride height.

NOTE:
The fog lamp setting is 2% below horizontal.

NOTE:
With self leveling suspension, make sure the vehicle is at the standard ride height.





NOTE:
The procedure must be carried out on both sides.
