Front Wheel Speed Sensor
Front Wheel Speed Sensor
Removal
All vehicles
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
2 Remove the front wheel and tire.
3 Remove the fender splash shield. For additional information, refer to Fender Splash Shield Fender Splash Shield

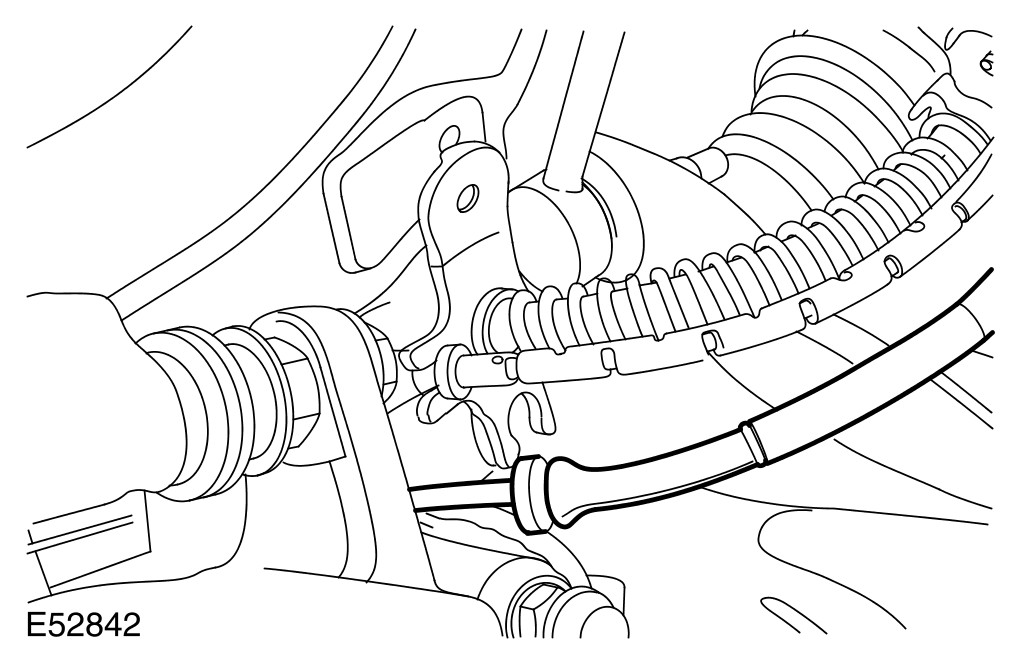

4 Release the wheel speed sensor lead from the brake hose retaining bracket.
Vehicles with standard brakes
5
CAUTION: Do not allow the brake caliper to hang on the brake hose.
Release the brake caliper anchor plate from the wheel knuckle and tie the caliper aside.
- Remove the 2 retaining bolts.
Vehicles with high performance brakes
6
CAUTION: Do not allow the brake caliper to hang on the brake hose.
Release the brake caliper from the wheel knuckle.
- Remove the 2 retaining bolts.
- Tie the brake caliper aside.
All vehicles
7
NOTE:
The brake disc is shown removed for clarity.
Release the wheel speed sensor from the wheel knuckle.
- Remove the bolt.
8 Remove the wheel speed sensor.
- Disconnect the electrical connector.
- Release the wiring harness from the clips.
Installation
All vehicles
1 Make sure the wheel speed sensor location in the wheel knuckle is free of dirt.
2
NOTE:
Make sure the electrical connector retaining clip is attached to the body wiring harness.
Install the wheel speed sensor.
- Tighten the bolt to 9 Nm (7 lb.ft).
- Connect the electrical connector.
- Secure the wiring harness in the clips.
Vehicles with standard brakes
3 Secure the brake caliper and anchor plate to the wheel knuckle.
- Tighten the bolts to 275 Nm (203 lb.ft).
Vehicles with high performance brakes
4 Secure the brake caliper to the wheel knuckle.
- Tighten the bolts to 275 Nm (203 lb.ft).
All vehicles
5 Secure the wheel speed sensor lead to the brake hose retaining bracket.
6 Install the fender splash shield. For additional information, refer to Fender Splash Shield Fender Splash Shield
7 Install the wheel and tire.
- Tighten the wheel nuts to 140 Nm (103 lb.ft).
