Brakes - Revised Park Brake Cable Removal/Installation

No.: LTB00145

Issue: 1

Date: 13 May 2008

SECTION: 206

Revised Workshop Procedure - Remove / Install Parking Brake Cables

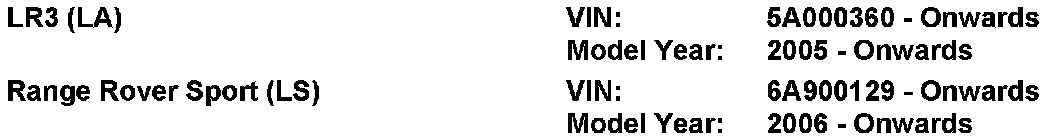

AFFECTED VEHICLE RANGE

CONDITION SUMMARY:

Situation:

Revised workshop procedures have been developed for the removal and installation of the parking brake cables. In the new procedures, the electronic park brake actuator remains in position and the cables are removed through the wheel arch.

Action:

When removing / installing the parking brake cables, refer to the Repair Procedure outlined below.

PARTS:

No parts required





WARRANTY:

NOTE:
Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to DDW to obtain the latest repair time.

DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.

REPAIR PROCEDURE

NOTE:
Global Technical Reference (GTR) lookup sequence is as follows:

GTR Home > NAS > Model > Service Information > Model Year > Workshop Manuals > 2: Chassis > 206: Brake System > 206-05: Parking Brake and Actuation.

1. Refer to Workshop Manual (GTR) Section 206-05: Parking Brake and Actuation for the revised removal / installation.
