Brakes - Revised Parking Brake Actuator Service

No: LTB00189

Issue: 1

Date: 06 JAN 2009

SECTION: 206
New Workshop Procedure - Remove / Install Parking Brake Actuator

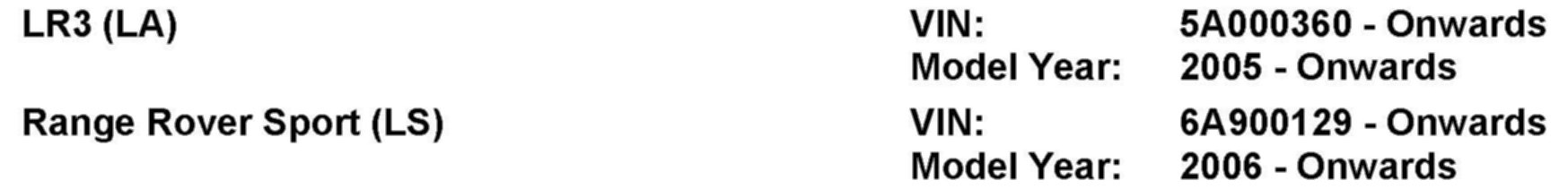

AFFECTED VEHICLE RANGE

CONDITION SUMMARY:

Situation:

The procedure to remove / install the parking brake actuator has been revised. It is no longer necessary to lower the spare wheel / tire and remove the parking brake actuator mounting bracket. The parking brake actuator and cables are removed through the right rear wheel opening.

Action:

In the event it becomes necessary to remove / install the parking brake actuator, refer to the Repair Procedure outlined below.

PARTS:

No parts necessary; information only

TOOLS:

Refer to Workshop Manual (GTR) for any required special tools

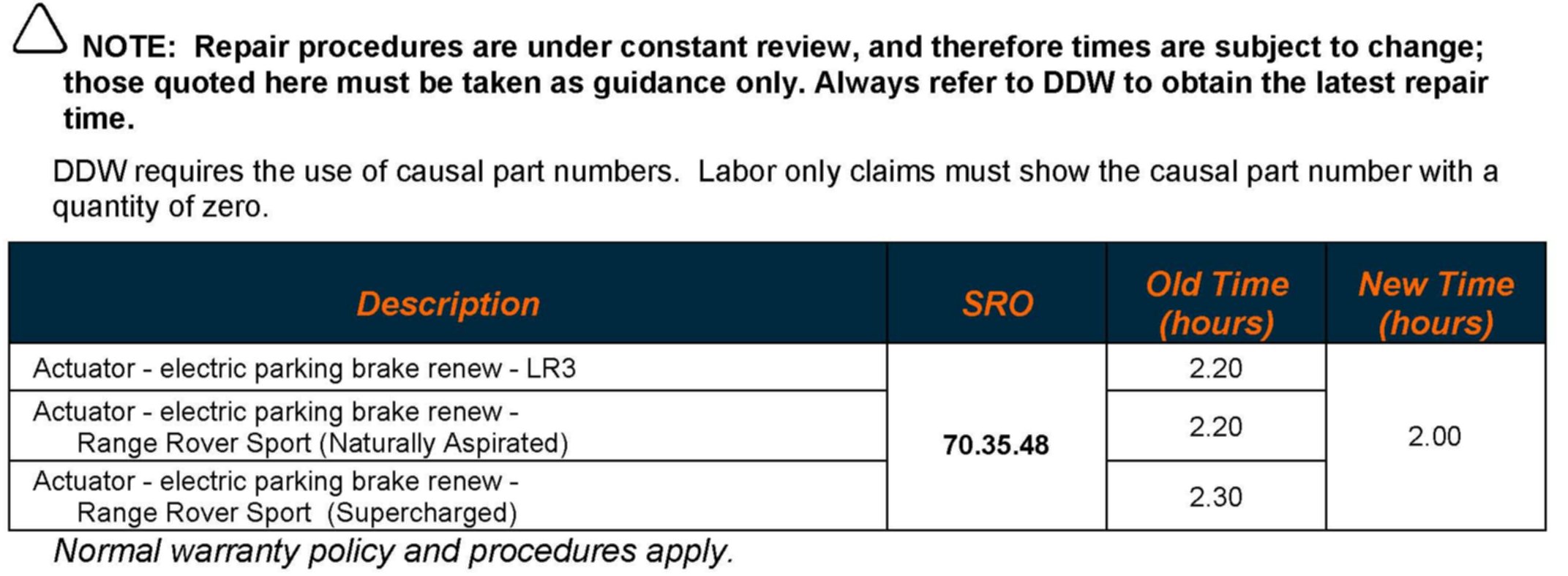

WARRANTY

REPAIR PROCEDURE

NOTE:
Global Technical Reference (GTR) lookup sequence is as follows: GTR Home > NAS > Model > Service Information > Model Year > Workshop Manuals > 2: Chassis > 206: Brake System > 206-05: Parking Brake and Actuation

1. Refer to Workshop Manual (GTR) Section 206-05: Parking Brake and Actuation (70.35.48) to remove / install the parking brake actuator.
