LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C11R - C1BB07G
>>

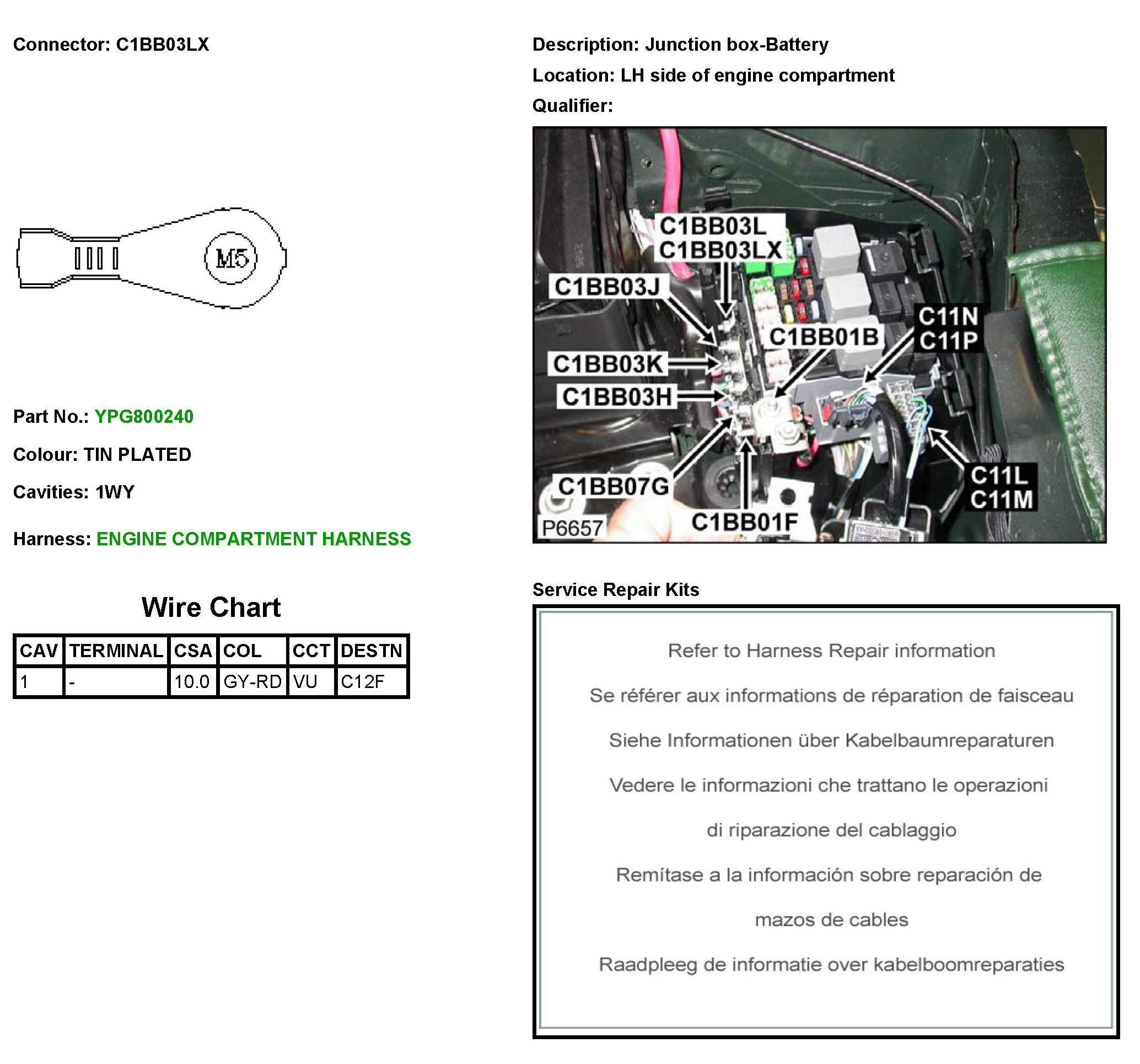

C1BB03LX
C1BB03LX
C1BB03L
