Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2012
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C1BP02A - C1E109A
>>

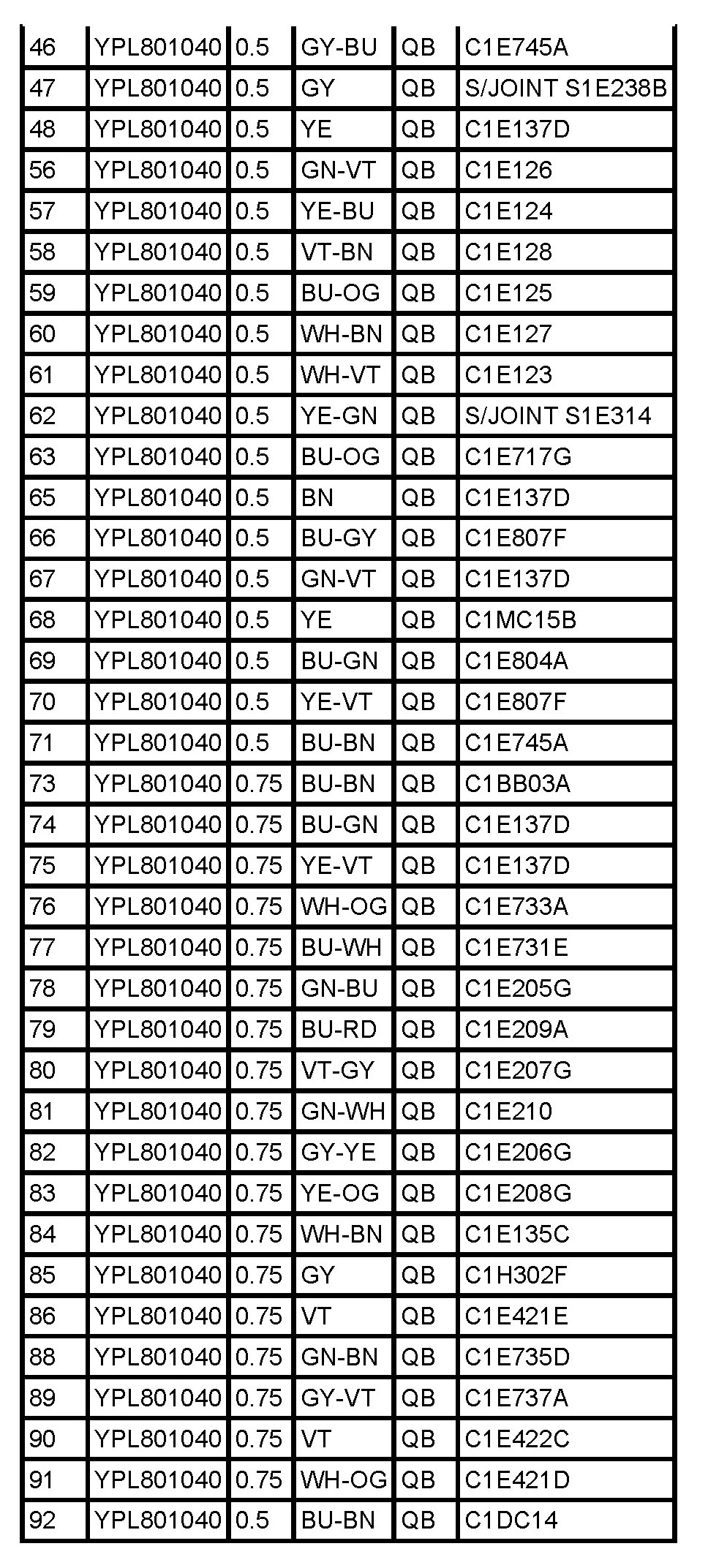

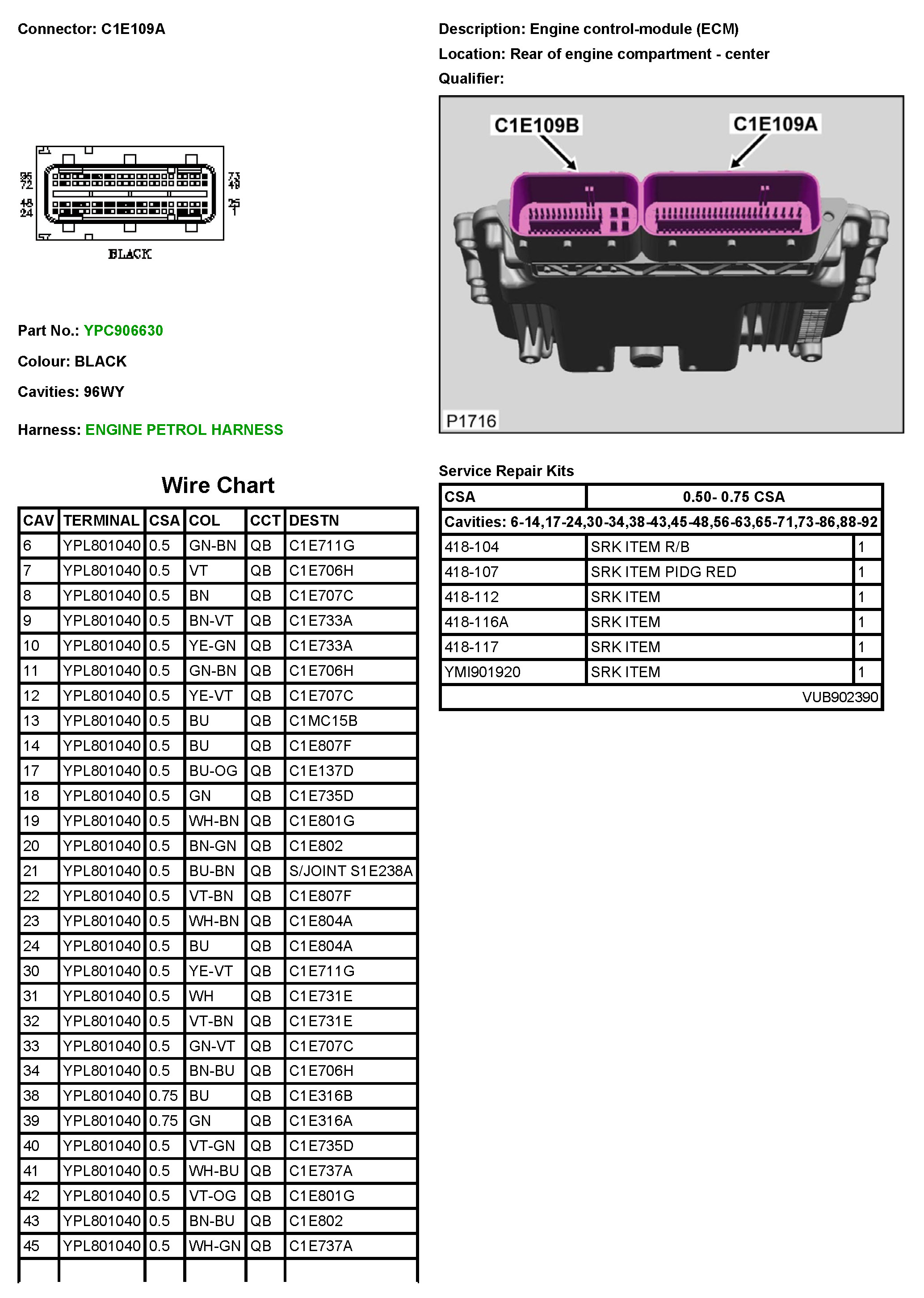

C1E109A
C1E109A
C1E109A
