Home >> Land Rover >> 2012 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Mounted Controls Communication Module >> C2147 Module-Steering-Wheel-RH

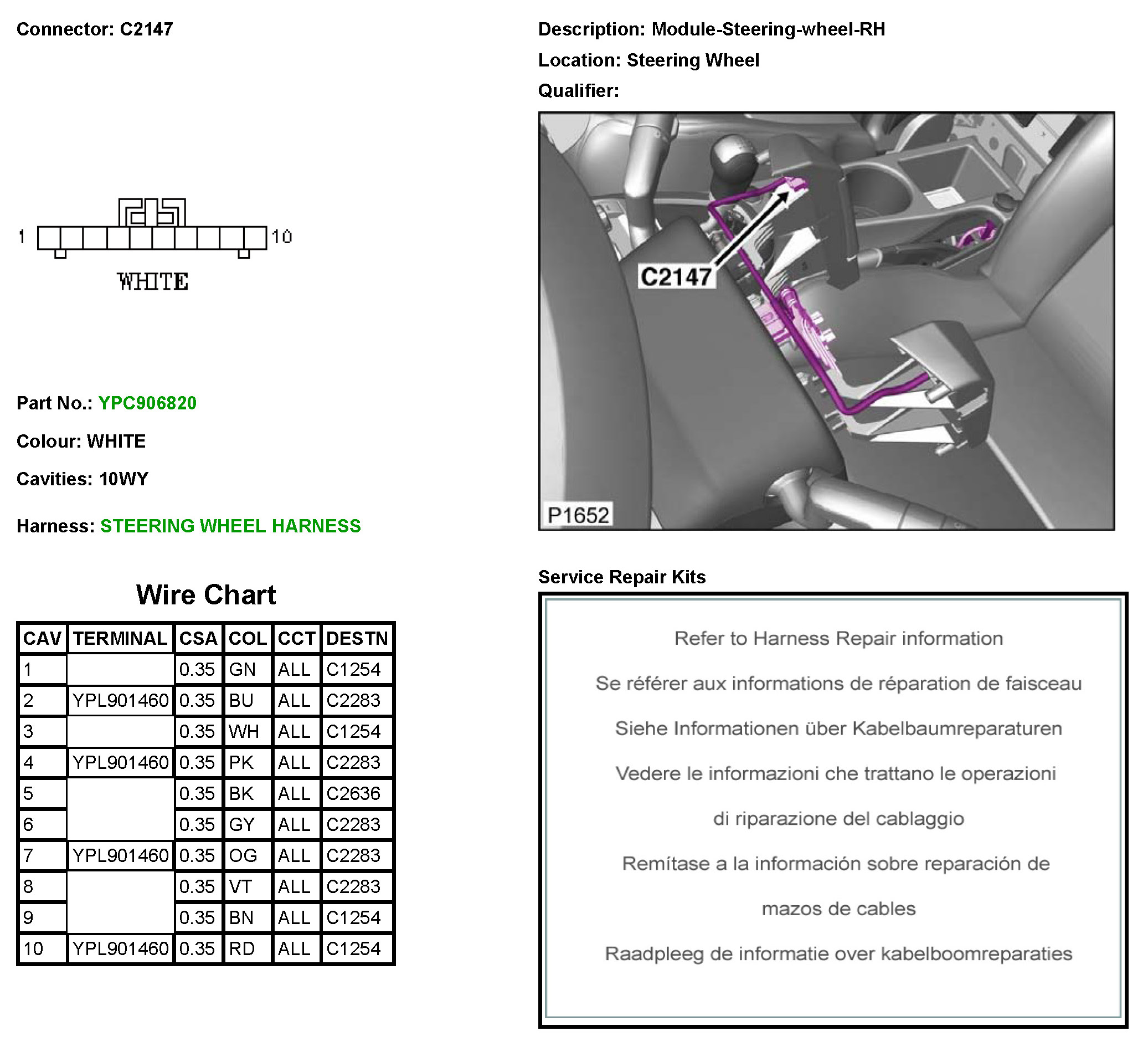

C2147 Module-Steering-Wheel-RH



C2147
