Home >> Land Rover >> 2012 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Diagrams

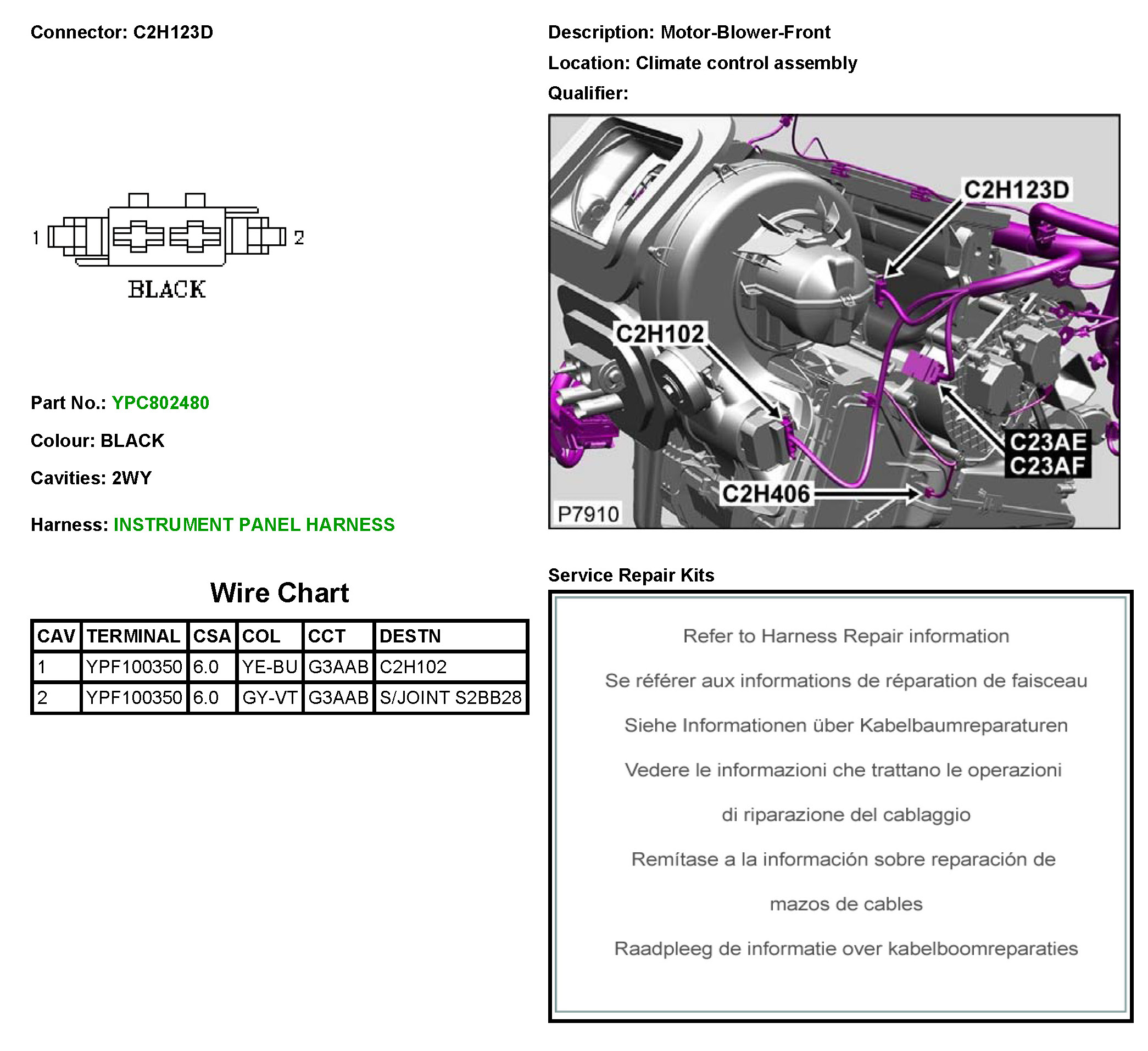

Blower Motor: Diagrams



C2H123D
