Fog/Driving Lamp: Adjustments

Front Fog Lamp Adjustment
1 Align the beam setting equipment to one fog lamp.





NOTE:

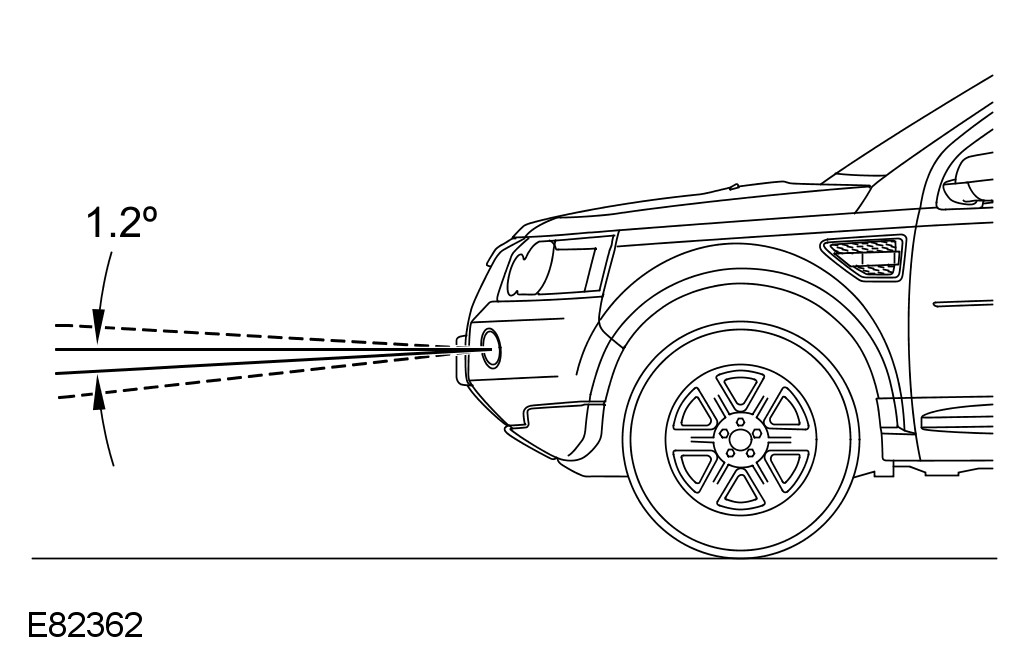

The fog lamp beam should be set at 1.2% below the horizontal and parallel.
2 Check the fog lamp beam alignment.
3 Turn the steering on to full lock for access.

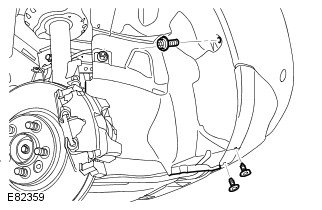

4 Release the front bumper cover from the fender splash shield.




5 Adjust the fog lamp using the thumb wheel.
6 Install the fender splash shield.
7 To adjust the second fog lamp, repeat the above procedure.
