Specifications
>>
Mechanical Specifications
>>
Drive Axles, Bearings and Joints
>>
System Specifications
System Specifications
Specifications

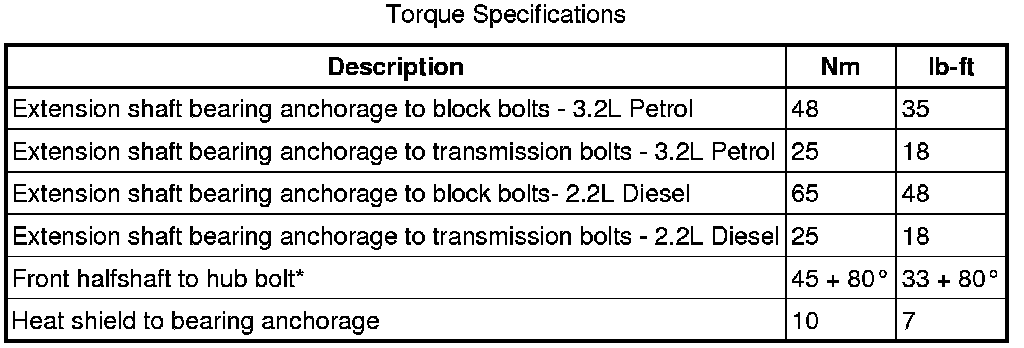

* New nuts/bolts must be fitted
