Fuel Gauge: Testing and Inspection

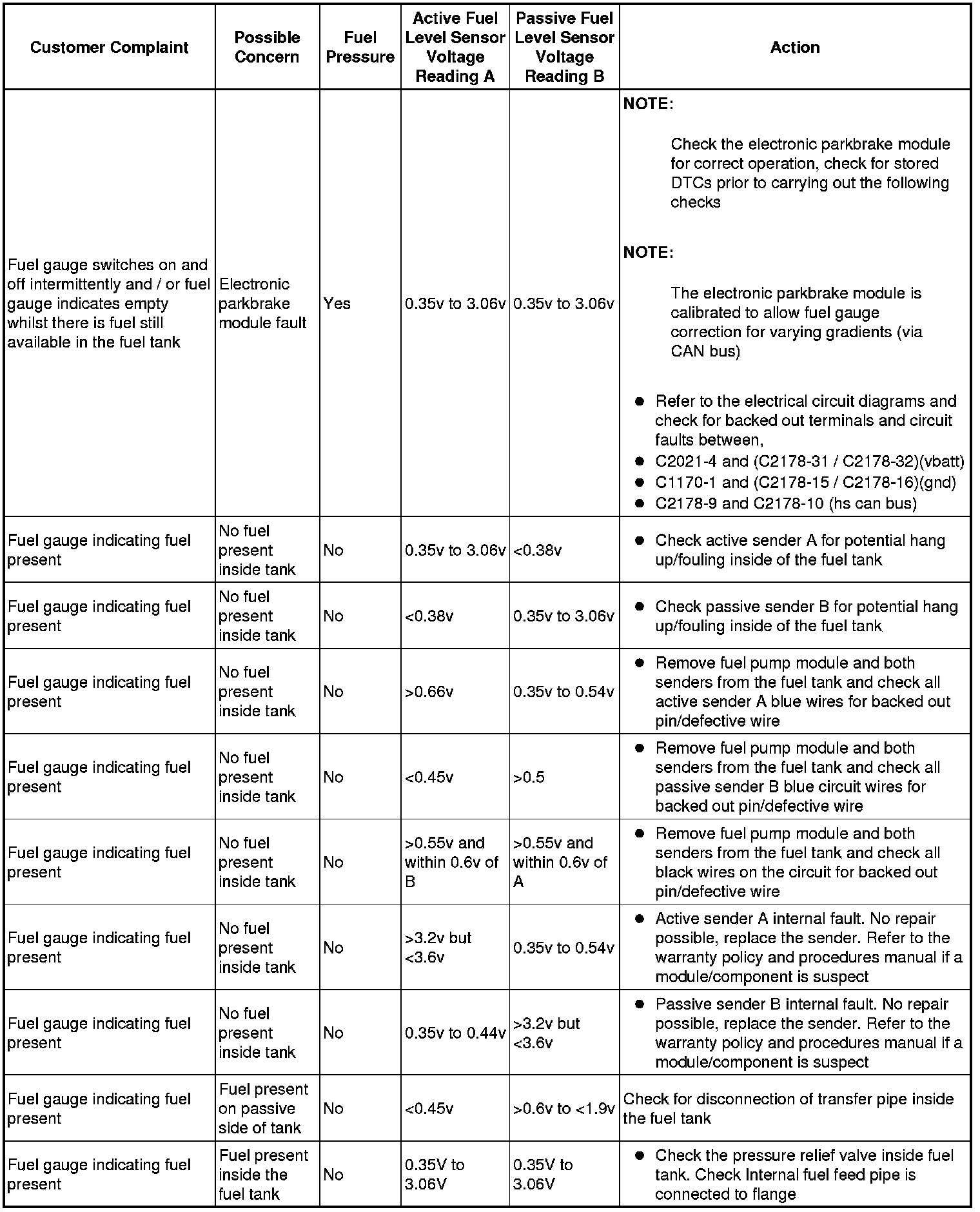

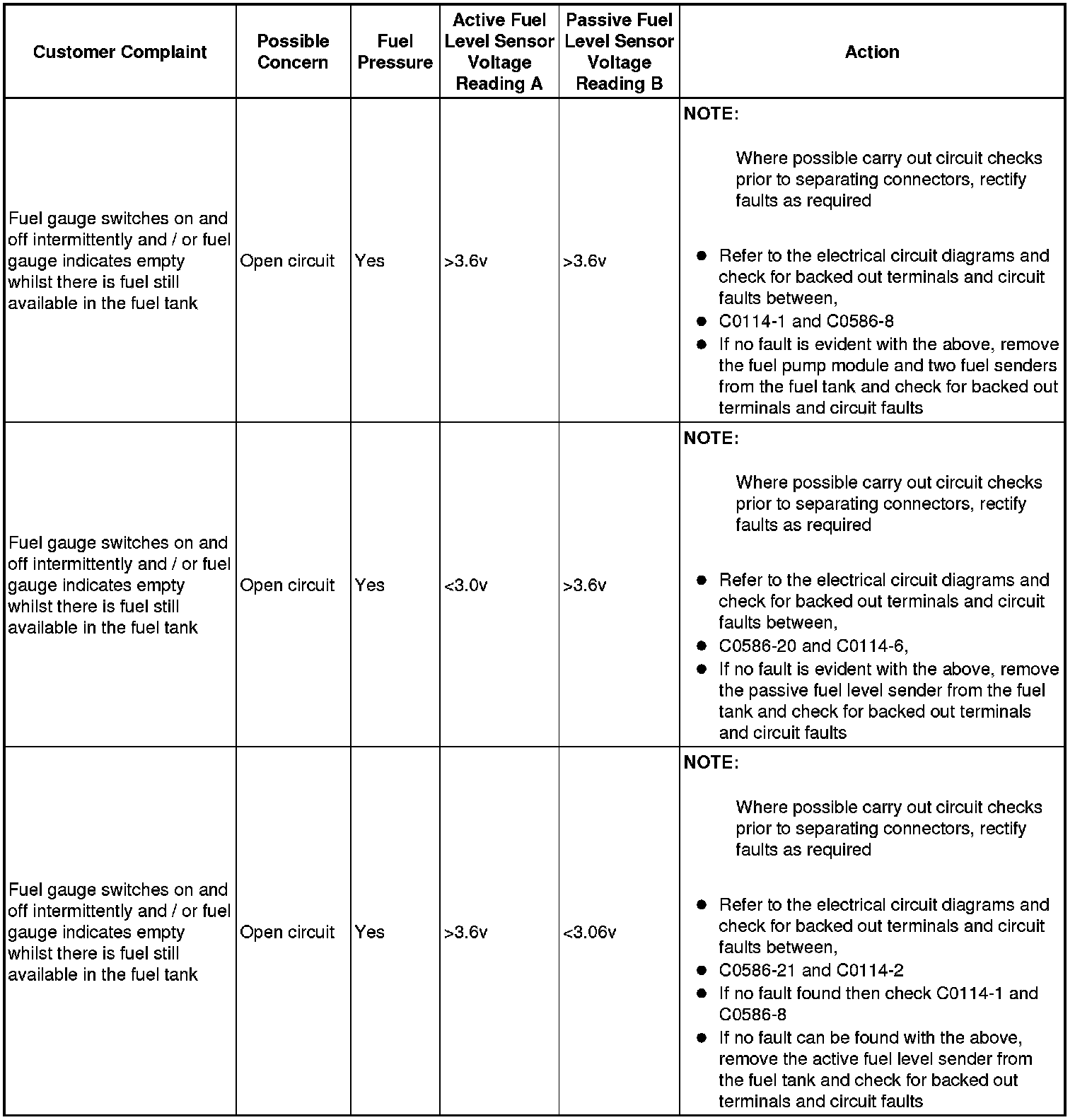

Fuel Gauge Diagnosis
1 Using the manufacturer approved diagnostic system monitor, "active fuel level sensor(A)" and "passive fuel level sensor(B)" data logger signals located within the body control module subsection.
