Body - Rear Door Laminated Glass Discoloration

No: LTB00398 (Issue 1)

15 AUG 2011

SECTION: 501

Rear Door Laminated Glass Discoloration

AFFECTED VEHICLE RANGE:
Range Rover (LM) VIN: BA325708 - Onwards
Model Year: 2011 - Onwards

CONDITION SUMMARY:

Situation:

The left and right rear door laminated glass may appear to be discolored in sunlight when viewed from inside or outside the vehicle. This may be caused by the laminate being an incorrect specification.

Action:

In the event of a customer concern of the above, refer to the Repair Procedure outlined below to replace the affected door glass.

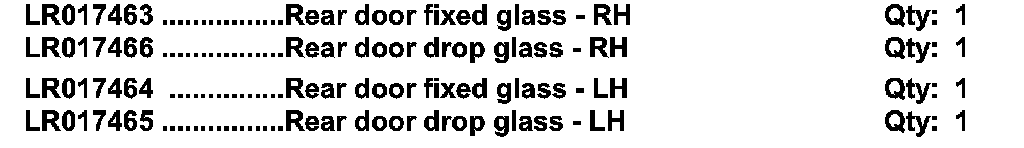

PARTS

TOOLS:

Refer to Workshop Manual for any required special tools





WARRANTY

REPAIR PROCEDURE

REPLACE AFFECTED DOOR GLASS

1. Refer to Workshop Manual 501-11: Glass, Frames, and Mechanisms, and replace the affected rear door fixed and drop window glass.

2. Repeat step 1 for the opposite rear door (only if necessary).
