Windshield Washer Pump: Service and Repair

Windshield Washer Pump

Removal
1 Remove the front LH fender splash shield. For additional information, refer to Fender Splash Shield
2 Position a container to collect any windshield washer reservoir spillage.

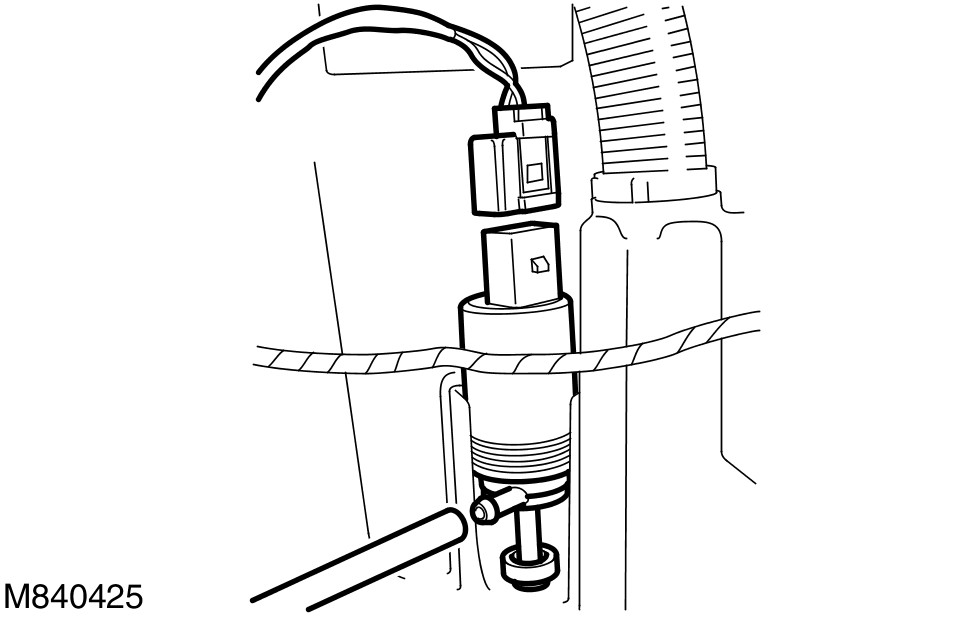

3 Disconnect the windshield washer pump electrical connector.
- Remove the windshield washer pump hose.
4 Remove the windshield washer pump.
- Remove and discard the seal.

Installation
1 Install the windshield washer pump.
- Clean the component mating faces.
- Install a new seal.
2 Connect the electrical connector.
- Connect the hose to the pump.
3 Fill the windshield washer reservoir with the correct fluid and concentration.
4 Install the front LH fender splash shield. For additional information, refer to Fender Splash Shield
