Windshield Washer Reservoir: Service and Repair

Windshield Washer Reservoir

Removal
1 Remove the front LH fender splash shield. For additional information, refer to Fender Splash Shield




2 Release the filler neck from the windshield washer reservoir.
- Position a container to collect any windshield washer reservoir spillage.
- Remove and discard the seal.
3
NOTE:
Note the position of the electrical connectors.

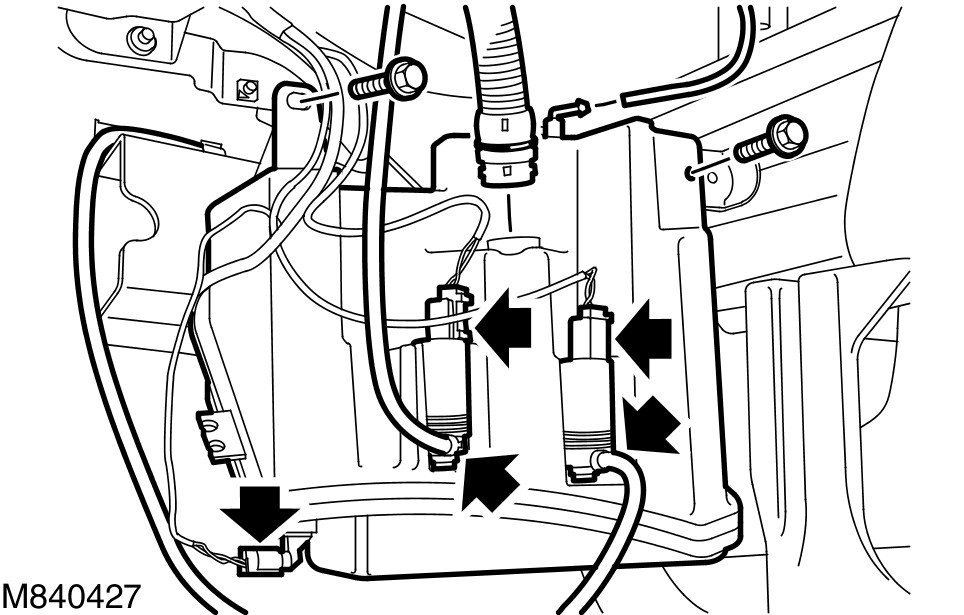

Disconnect the 3 electrical connectors from the windshield washer reservoir pumps.
4
NOTE:
Note the position of the hoses.
Disconnect the 3 hoses from the windshield washer reservoir pumps.
5 Disconnect the low washer fluid warning indicator switch electrical connector.
6 Disconnect the windshield washer reservoir vent pipe.
7 Remove the windshield washer reservoir.
1) Remove the 2 bolts.
2) Release the windshield washer reservoir from the front mounting.
8
NOTE:
Do not disassemble further if the component is removed for access only.
Remove the 3 windshield washer reservoir pumps and discard the 3 seals.

Installation
1 Install the windshield washer reservoir pumps.
- Clean the component mating faces.
- Install new seals.
2 Install the windshield washer reservoir.
- Tighten the bolts to 3 Nm (2.2 lb.ft).
3 Connect the windshield washer reservoir vent pipe.
4 Connect the low washer fluid warning indicator switch electrical connector.
5 Connect the windshield washer reservoir electrical connectors.
6 Connect the windshield washer reservoir pump hoses.
7 Install the windshield washer reservoir filler neck.
- Clean the component mating faces.
- Install a new seal to the windshield washer filler neck.
8 Fill the windshield washer reservoir with the correct fluid and concentration.
9 Install the front LH fender splash shield. For additional information, refer to Fender Splash Shield
