Fuel Filler Door Assembly

Fuel Filler Door Assembly
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

WARNING: Avoid flames, sparks or lighted substances.

CAUTION: Extreme cleanliness must be exercised when handling these components.

NOTE:
Removal steps in this procedure may contain installation details.

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

NOTE:
Make sure that all openings are sealed. Use new blanking caps.

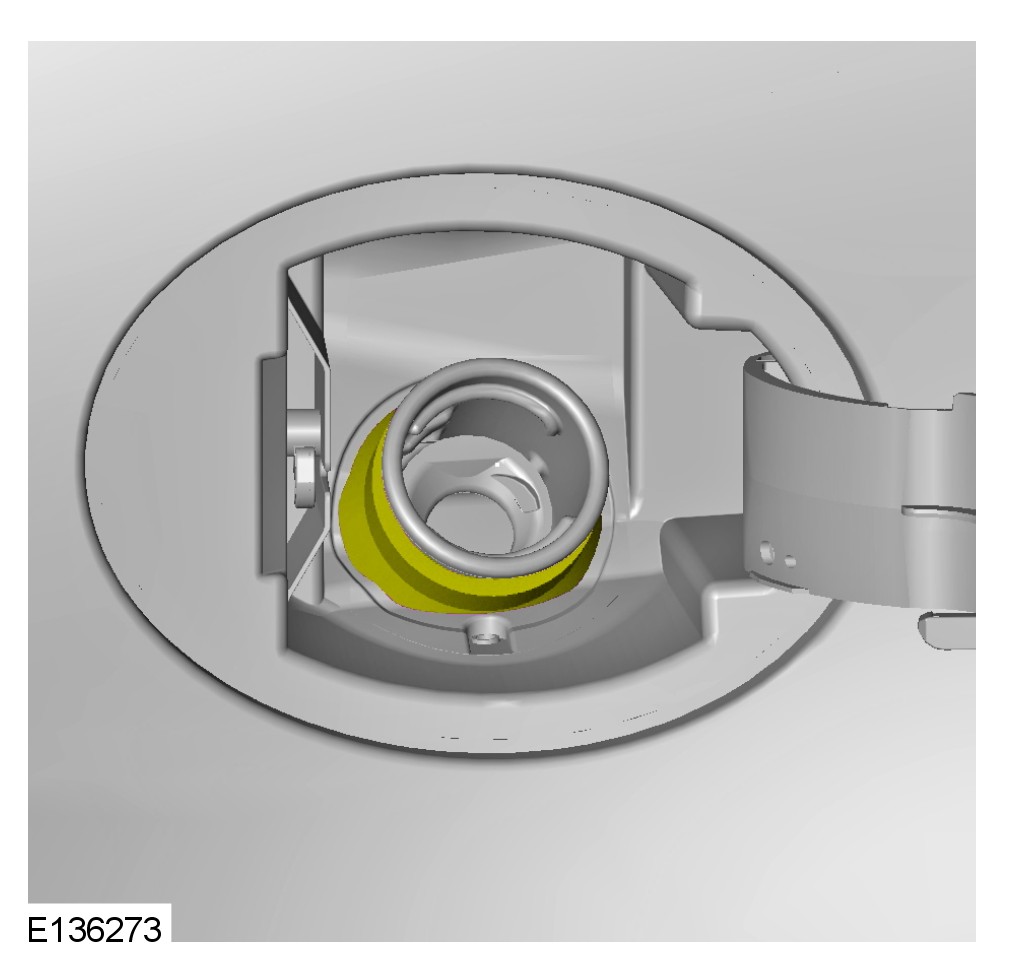

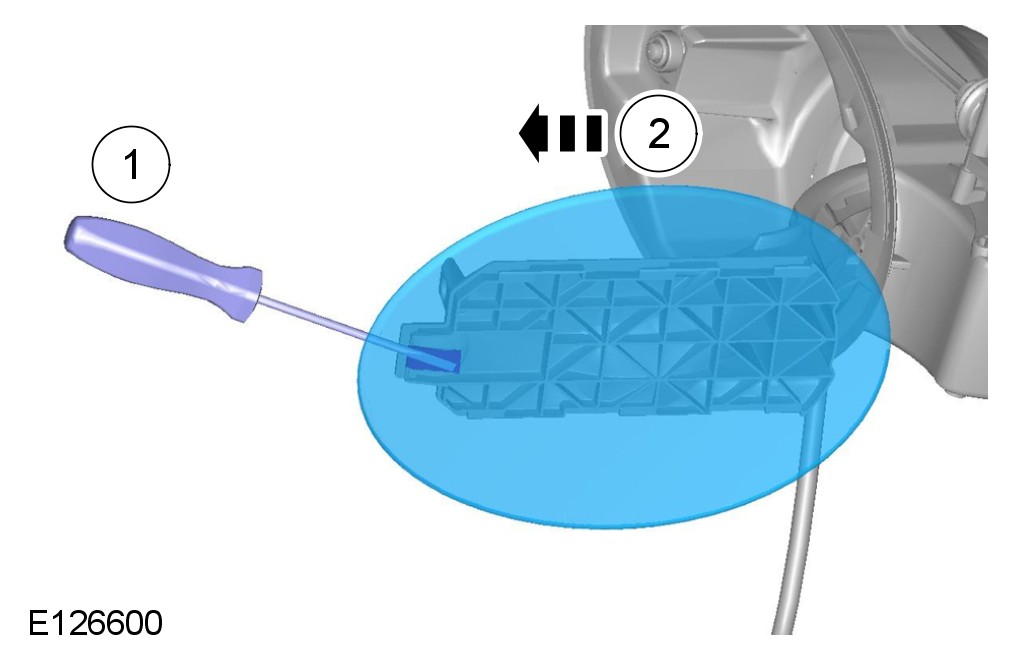

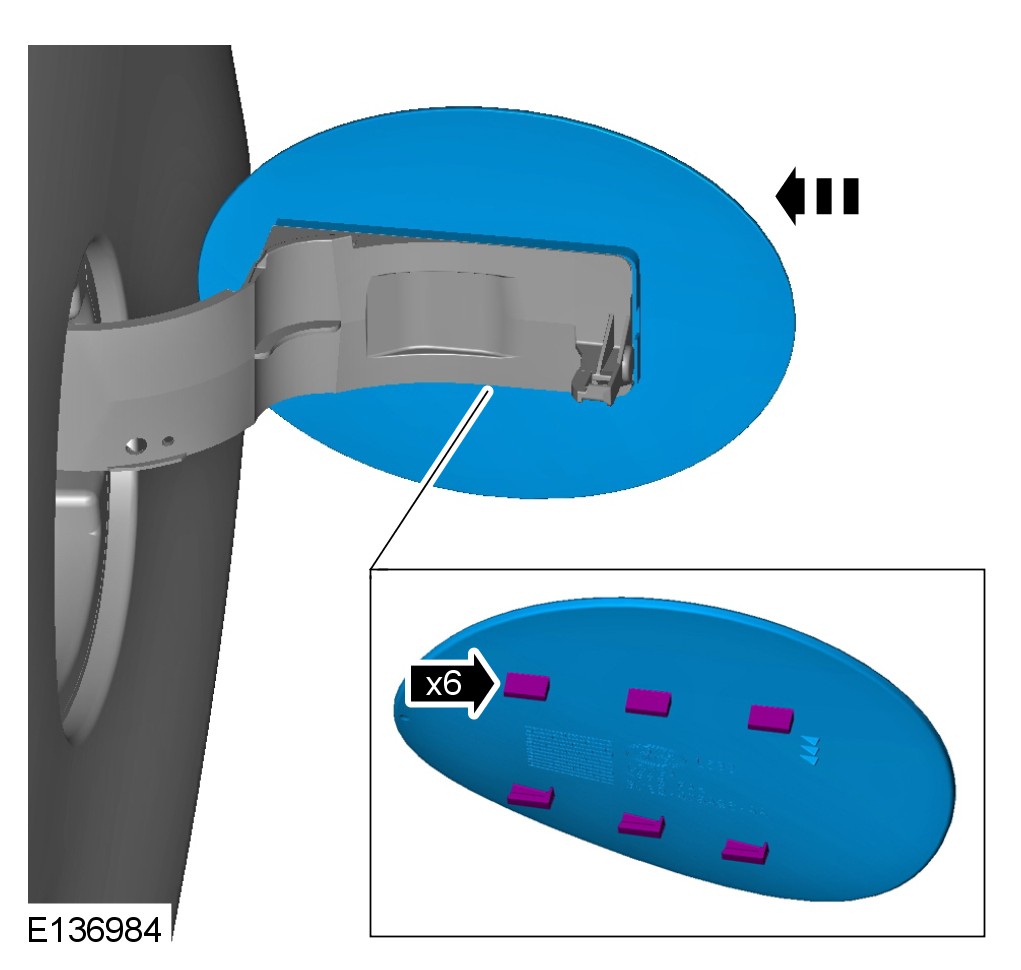

1 Remove the rear wheel.
For additional information, refer to Wheel and Tire Service and Repair

























CAUTION: Make sure to protect the paintwork.

NOTE:
Do not disassemble further if the component is removed for access only.

Installation





1 To install, reverse the removal procedure.
