Front Seat Backrest Cover

Front Seat Backrest Cover
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.

WARNING: Never probe the electrical connectors of air bag modules or any other supplemental restraint system component. Failure to follow this instruction may result in personal injury.

NOTE:
Removal steps in this procedure may contain installation details.

All vehicles
1 Disconnect the battery ground cable.
For additional information, refer to Specifications [1][2]Battery
2 Make the SRS system safe.
For additional information, refer to Standard Workshop Practices Standard Workshop Practices
For additional information, refer to Front Seat Control Switch Front Seat Control Switch
For additional information, refer to Front Seat Removal and Replacement





NOTE:
If equipped.





























3-door





NOTE:
Using suitable tools remove the front seat release lever.

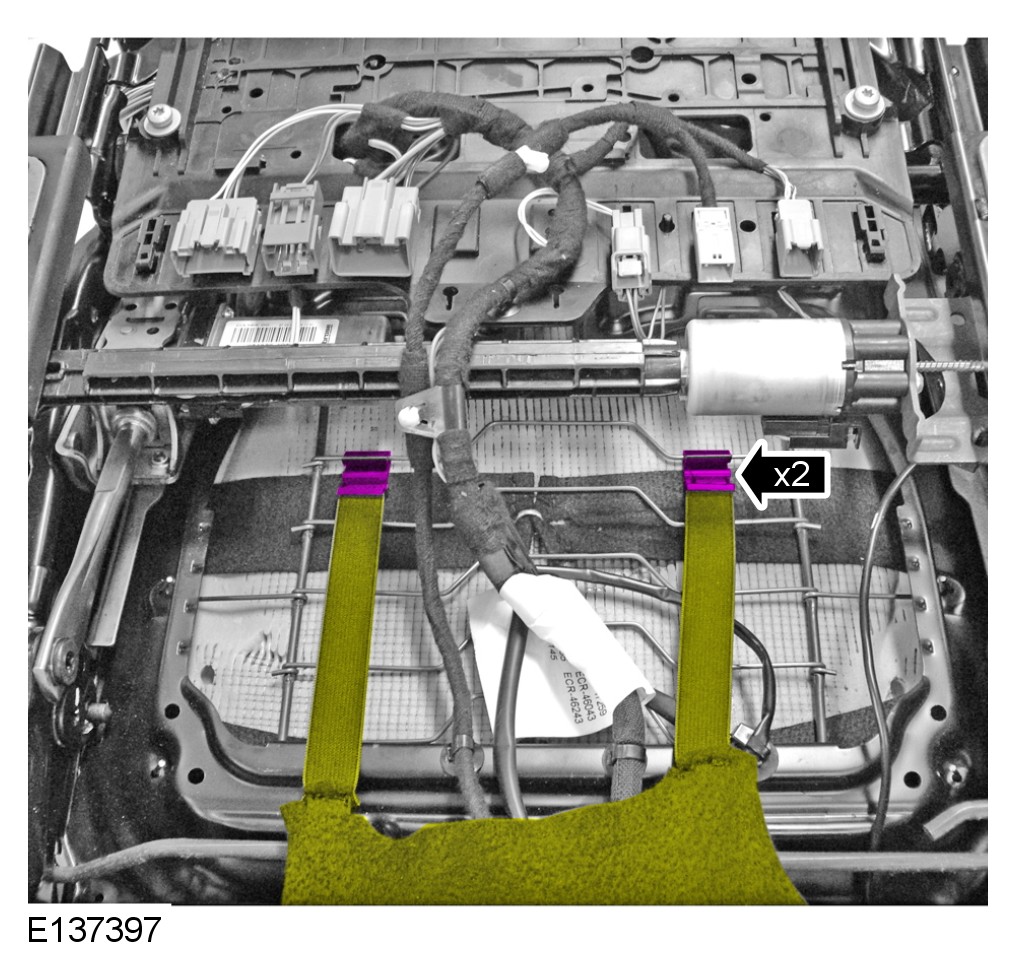

All vehicles

















WARNING: The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.

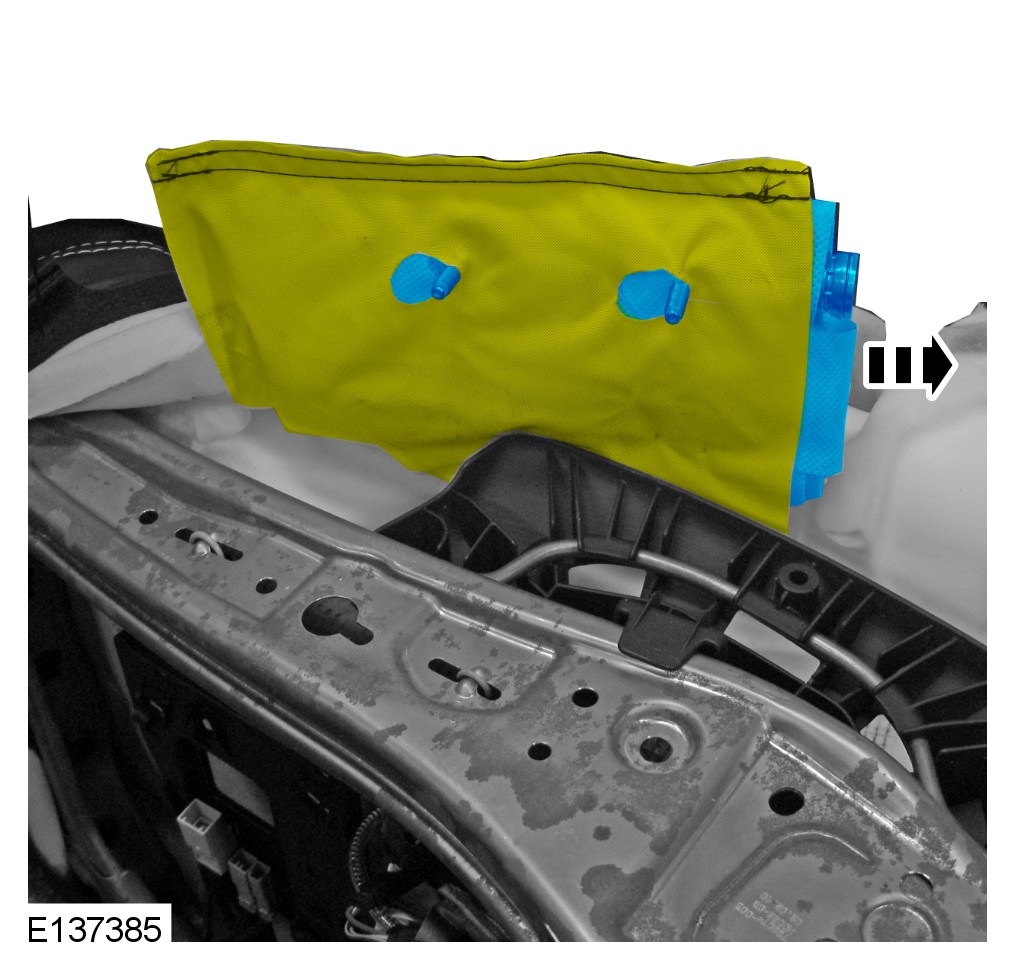

WARNING: Make sure that the air bag is correctly installed in to the fabric chute. Failure to follow this instruction may result in incorrect operation of the air bag.

Torque to: 7 Nm













Vehicles with heated front seats









All vehicles

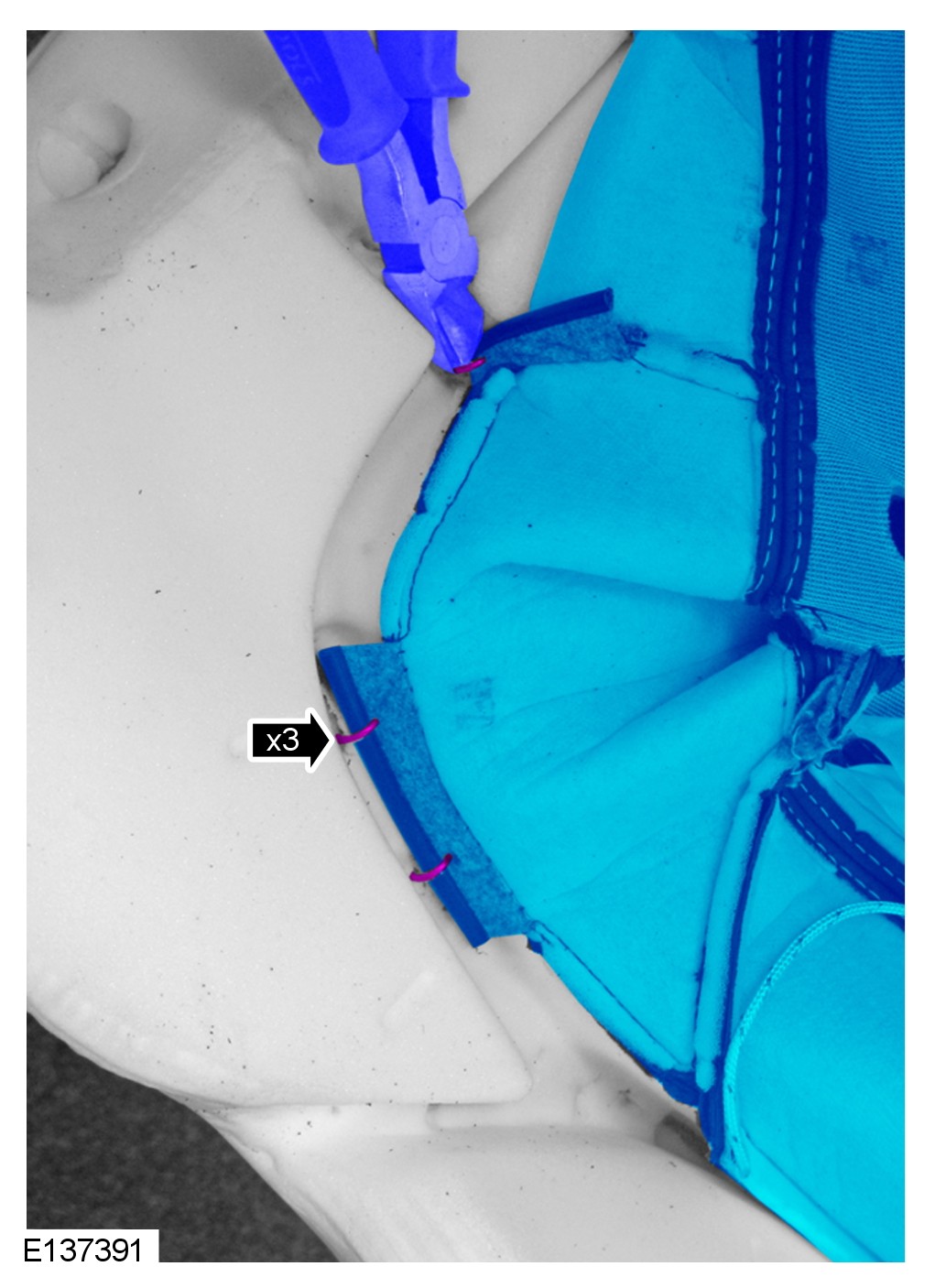

WARNING: Wear safety goggles and protective gloves.





WARNING: Wear safety goggles and protective gloves.
Repeat to the other side.

Installation






NOTE:

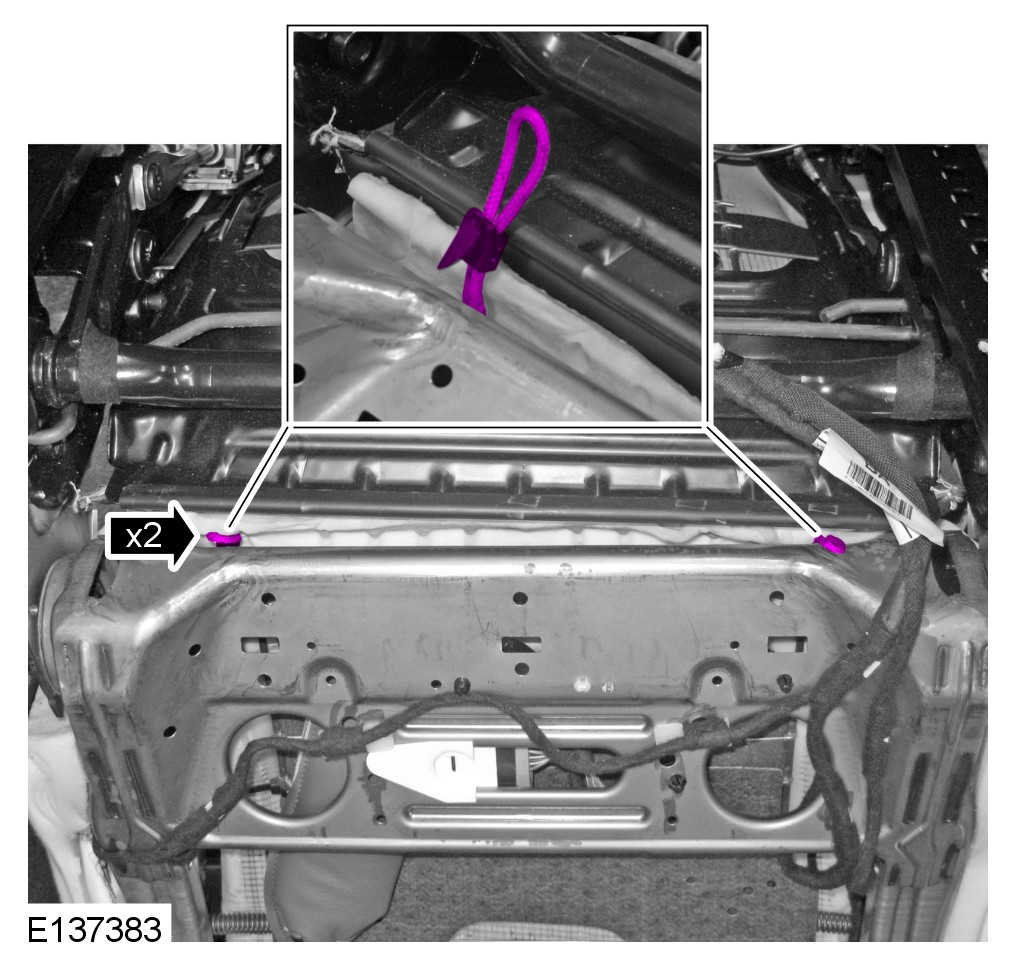

Make sure that new hog rings are installed.

NOTE:
Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.





NOTE:

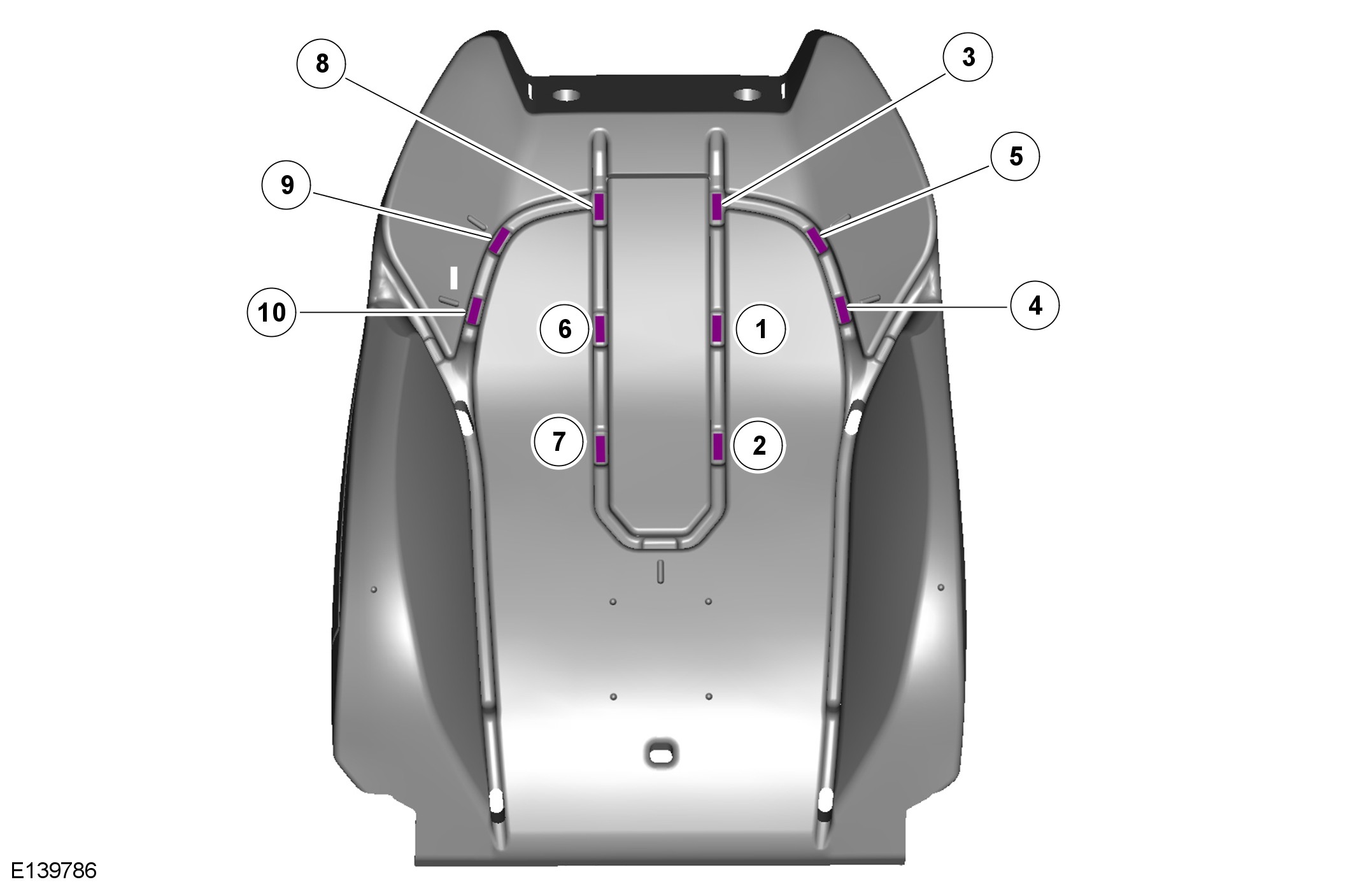

Make sure that the hogrings are installed in the sequence shown.
1 To install, reverse the removal procedure.
