Front Seat Cushion Cover [Vehicles With: Sport Seats]

Front Seat Cushion Cover
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

NOTE:
Removal steps in this procedure may contain installation details.

All vehicles
1 Make the SRS system safe.
For additional information, refer to Standard Workshop Practices Standard Workshop Practices
2 Disconnect the battery ground cable.
For additional information, refer to Specifications [1][2]Battery
For additional information, refer to Front Seat Control Switch Front Seat Control Switch
For additional information, refer to Front Seat Removal and Replacement





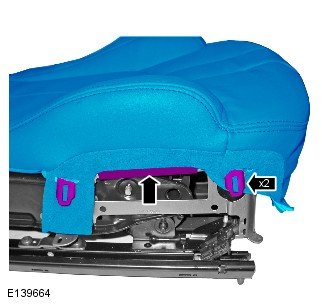

NOTE:
Note the fitted position of the component prior to removal.













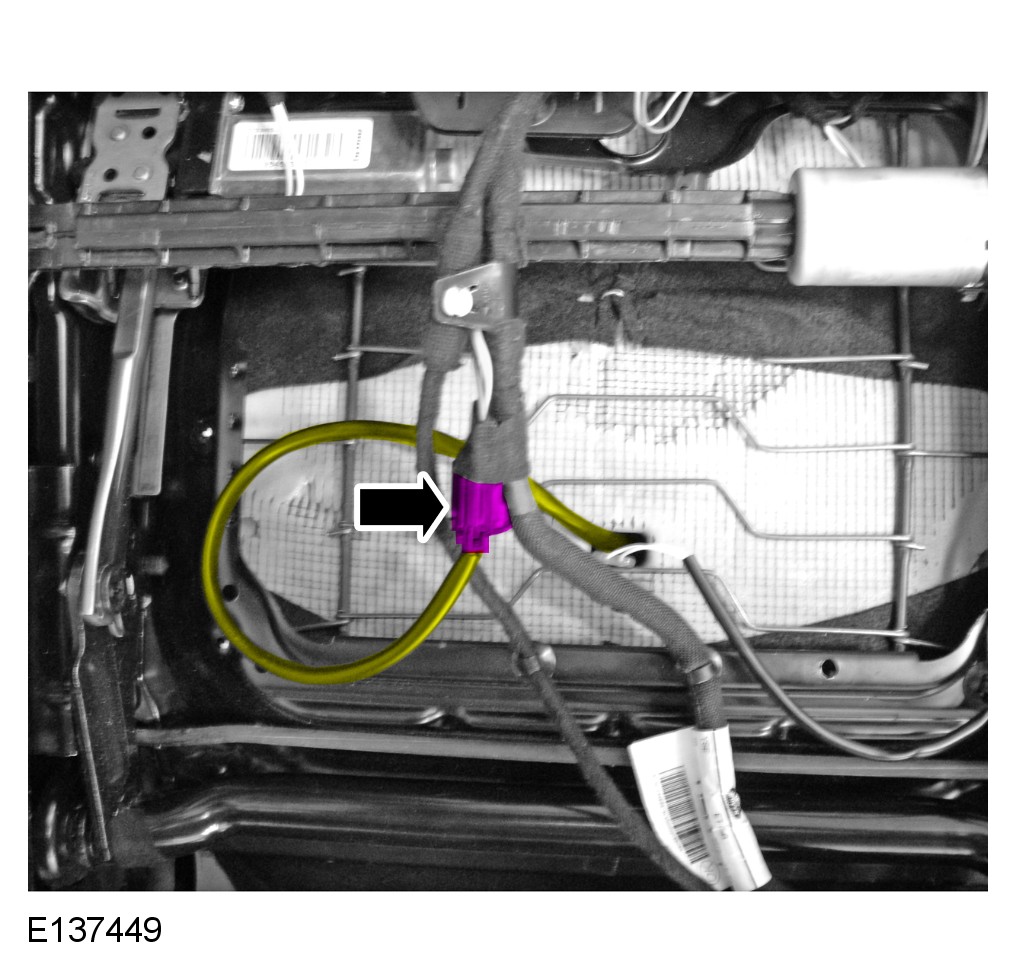

Vehicles with heated front seats





NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

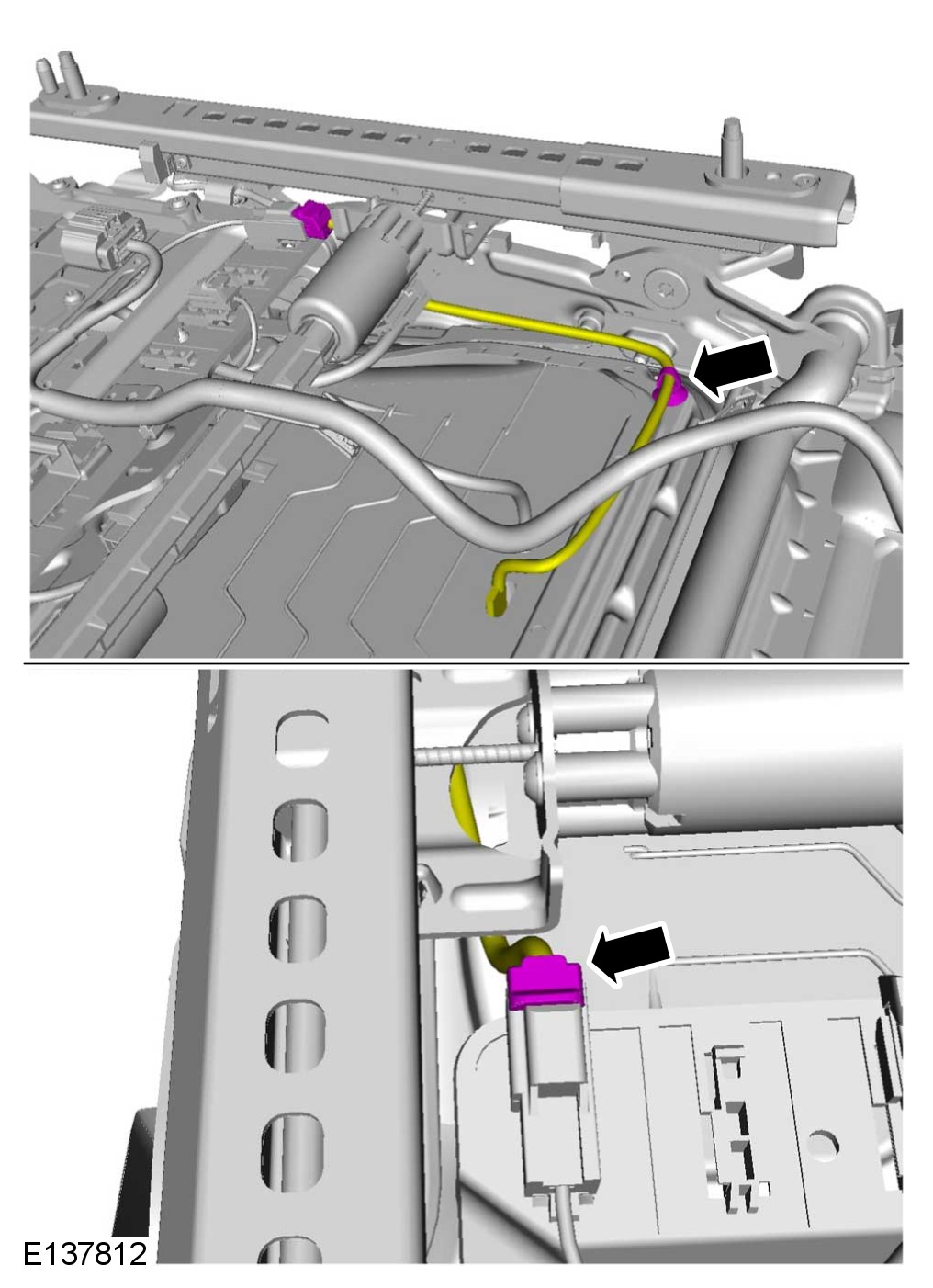

Non NAS vehicles





CAUTION: Make sure the component is aligned as shown.

All vehicles

















WARNING: Wear safety goggles and protective gloves.

NOTE:
Do not disassemble further if the component is removed for access only.





WARNING: Wear safety goggles and protective gloves.

Installation






NOTE:
Make sure that new hog rings are installed.

NOTE:
Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.





NOTE:

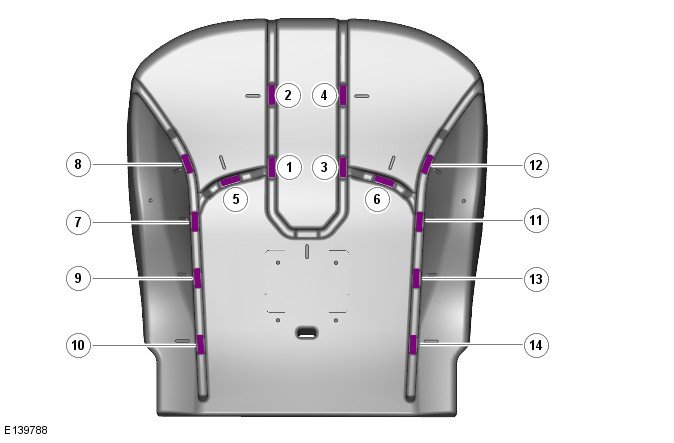

Make sure that the hogrings are installed in the sequence shown.
1 To install, reverse the removal procedure.
