Front Seat Height Adjustment Motor

Front Seat Height Adjustment Motor
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

NOTE:
Removal steps in this procedure may contain installation details.

All vehicles
1 Disconnect the battery ground cable.
For additional information, refer to Specifications [1][2]Battery

WARNING: To avoid accidental deployment, the restraints control module backup power supply must be depleted. Wait at least two minutes after disconnecting the battery ground cable(s) before commencing any repair or adjustment to the supplemental restraint system (SRS), or any component(s) adjacent to the SRS sensors. Failure to follow these instructions may result in personal injury.
For additional information, refer to Standard Workshop Practices Standard Workshop Practices
For additional information, refer to Front Seat Control Switch Front Seat Control Switch
For additional information, refer to Front Seat Removal and Replacement

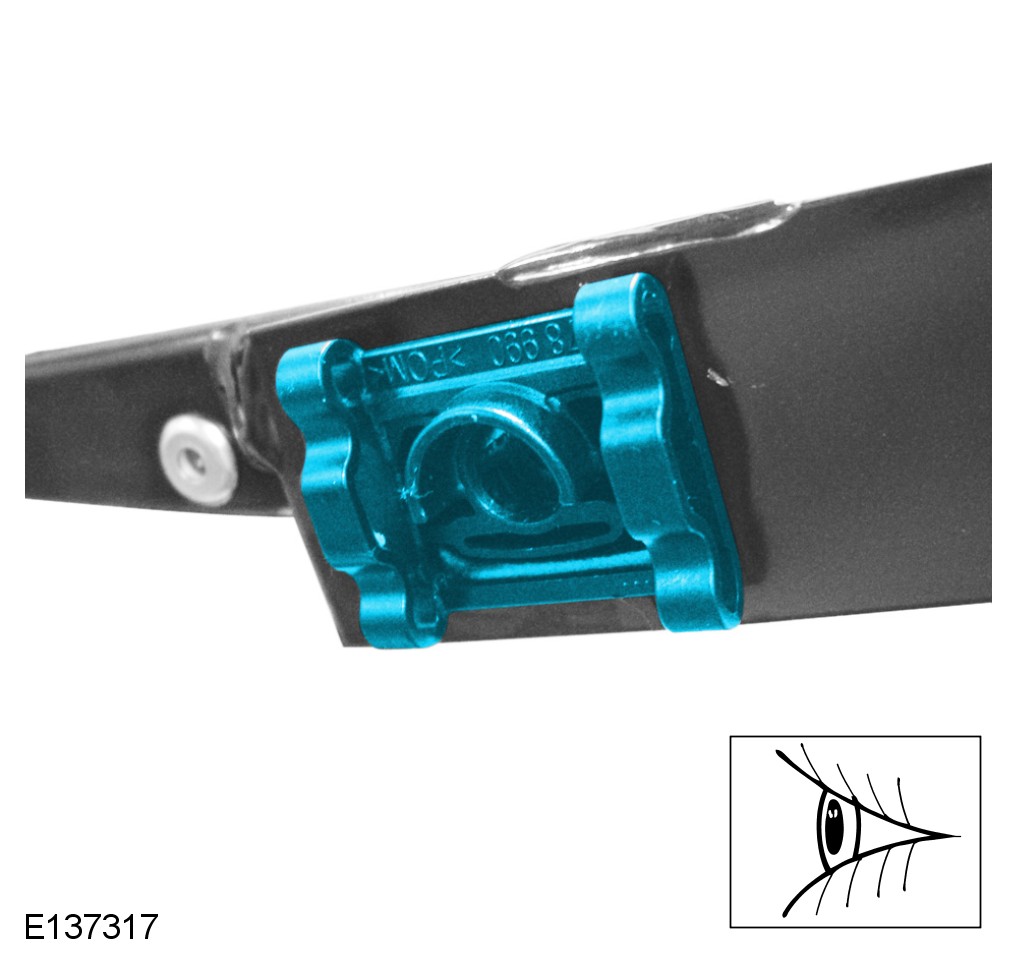

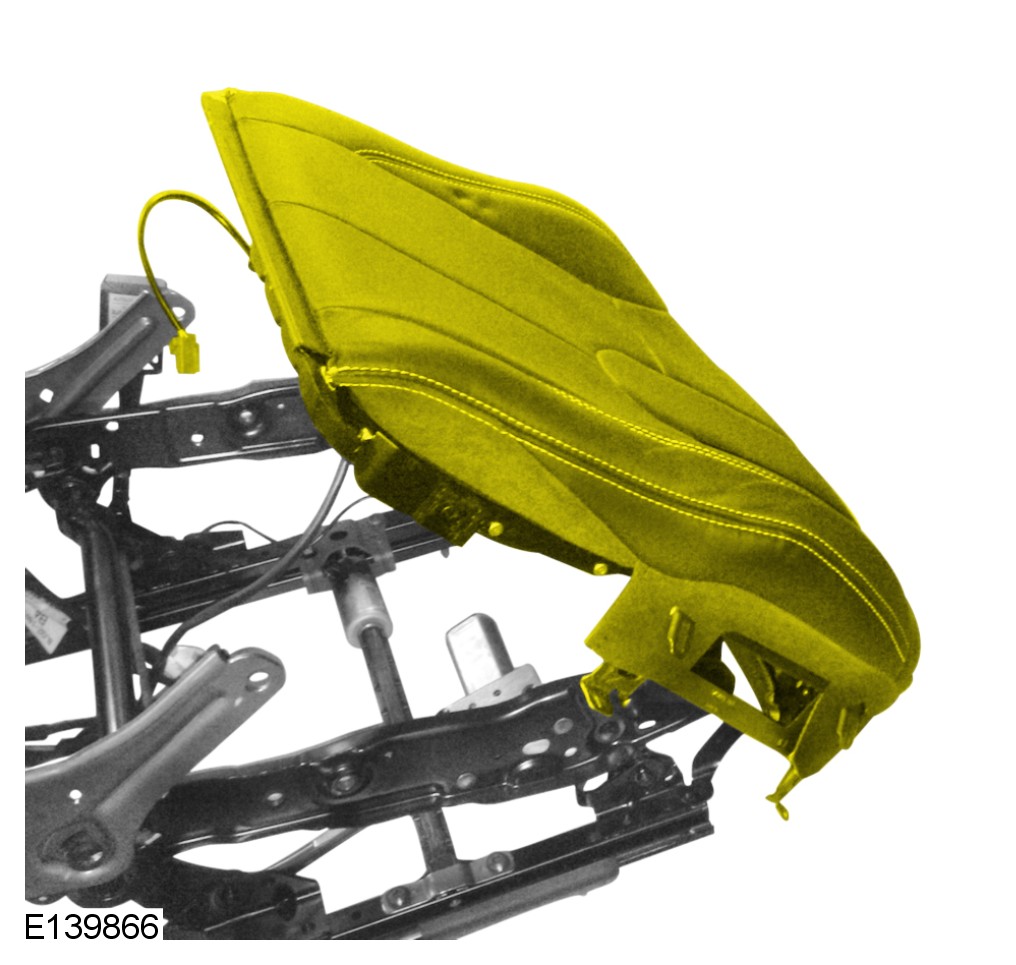

CAUTION: Note the fitted position of the component prior to removal.

Vehicles with sports seats









CAUTION: Note the fitted position of the component prior to removal.

Vehicles with heated front seats





NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

Non NAS vehicles





CAUTION: Make sure that the component is aligned and attached as shown.

NAS vehicles





All vehicles





NOTE:
If equipped.













NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

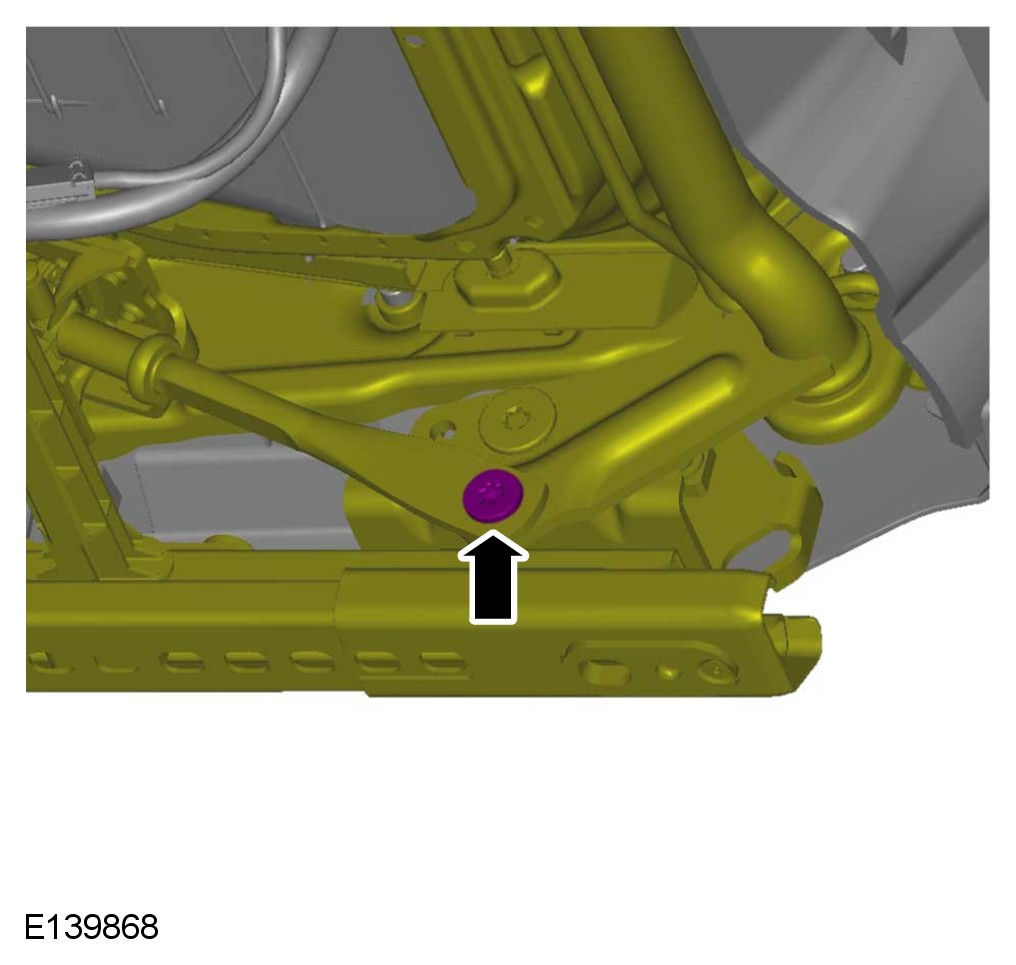

Torque to: 28 Nm





Torque to: 28 Nm





NOTE:
Use a suitable tool to remove the circlips from the seat cushion frame bolts.

NOTE:
Note the orientation of the components.

NOTE:
Right-hand shown, left-hand similar.

NOTE:
Repeat the procedure for the other side.





NOTE:
Right-hand shown, left-hand similar.

NOTE:
Repeat the procedure for the other side.

Torque to: 20 Nm









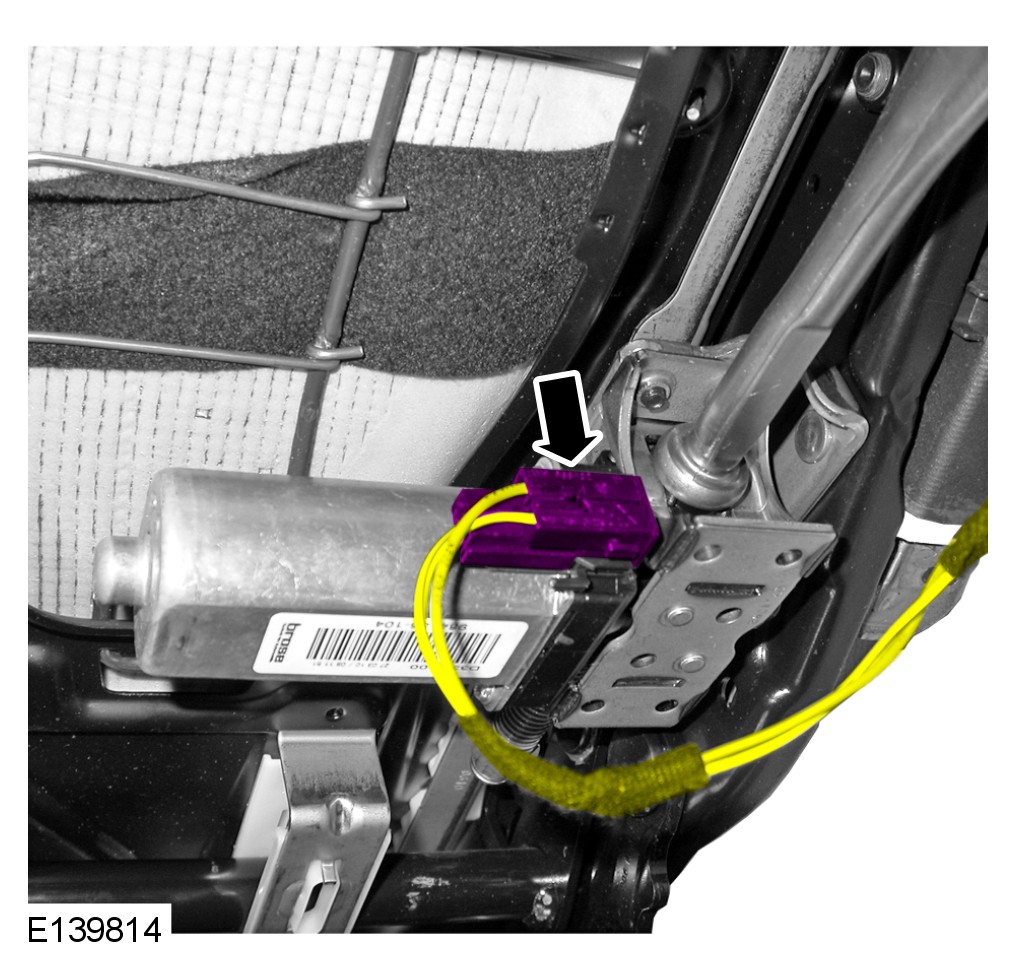

NOTE:
Note the orientation of the components.

NOTE:
Right-hand shown, left-hand similar.

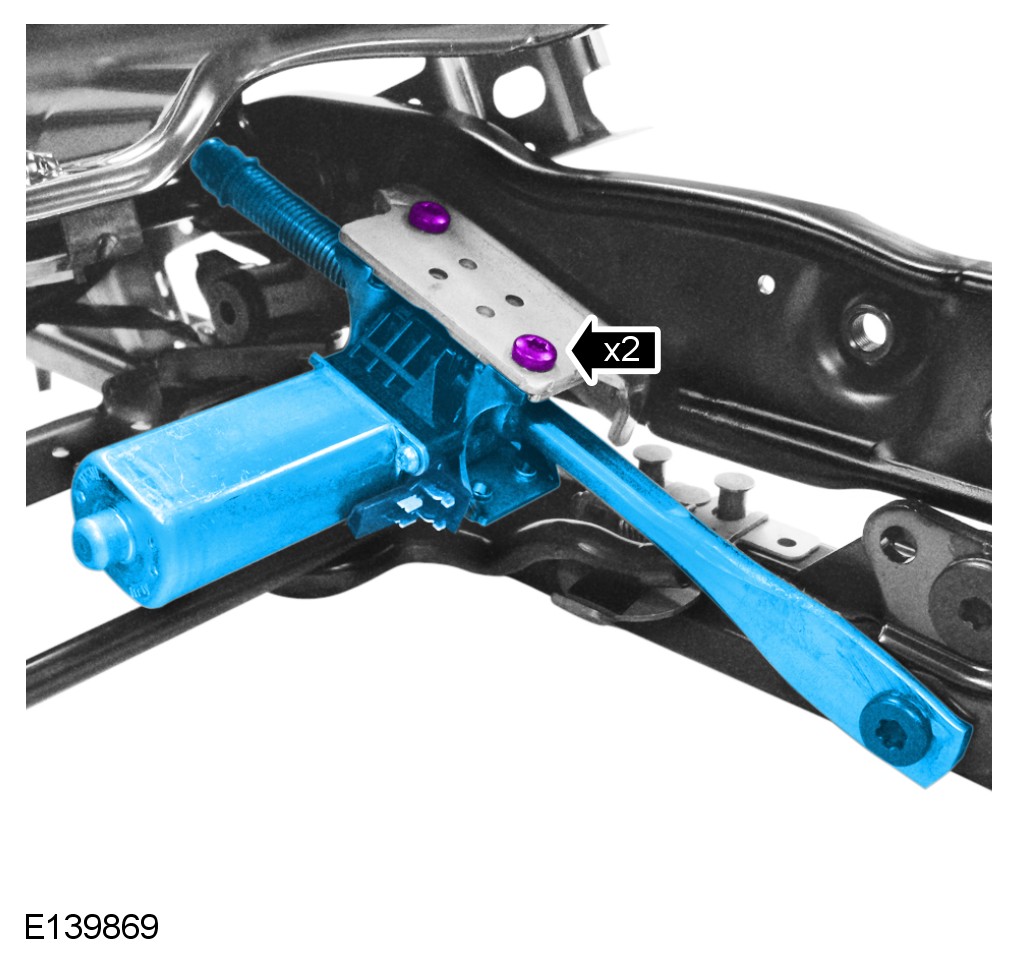

Torque to: 10 Nm

Installation
1 To install, reverse the removal procedure.
