Front Seat Recliner Motor

Front Seat Recliner Motor
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

NOTE:
Removal steps in this procedure may contain installation details.

All vehicles
For additional information, refer to Specifications [1][2]Battery
For additional information, refer to Standard Workshop Practices Standard Workshop Practices
For additional information, refer to Front Seat Control Switch Front Seat Control Switch
For additional information, refer to Front Seat Removal and Replacement

NOTE:
If equipped.

If equipped.

3-door

NOTE:
Using suitable tools remove the front seat release lever.

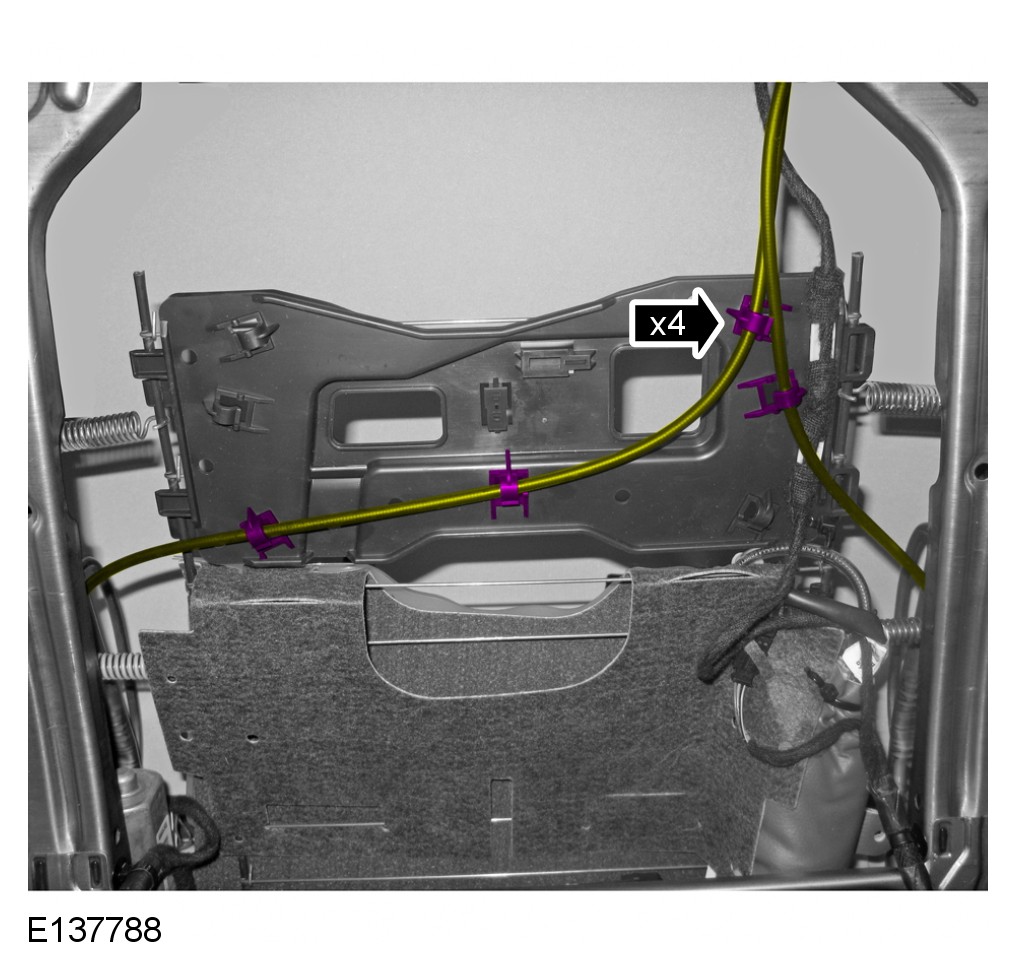

All vehicles

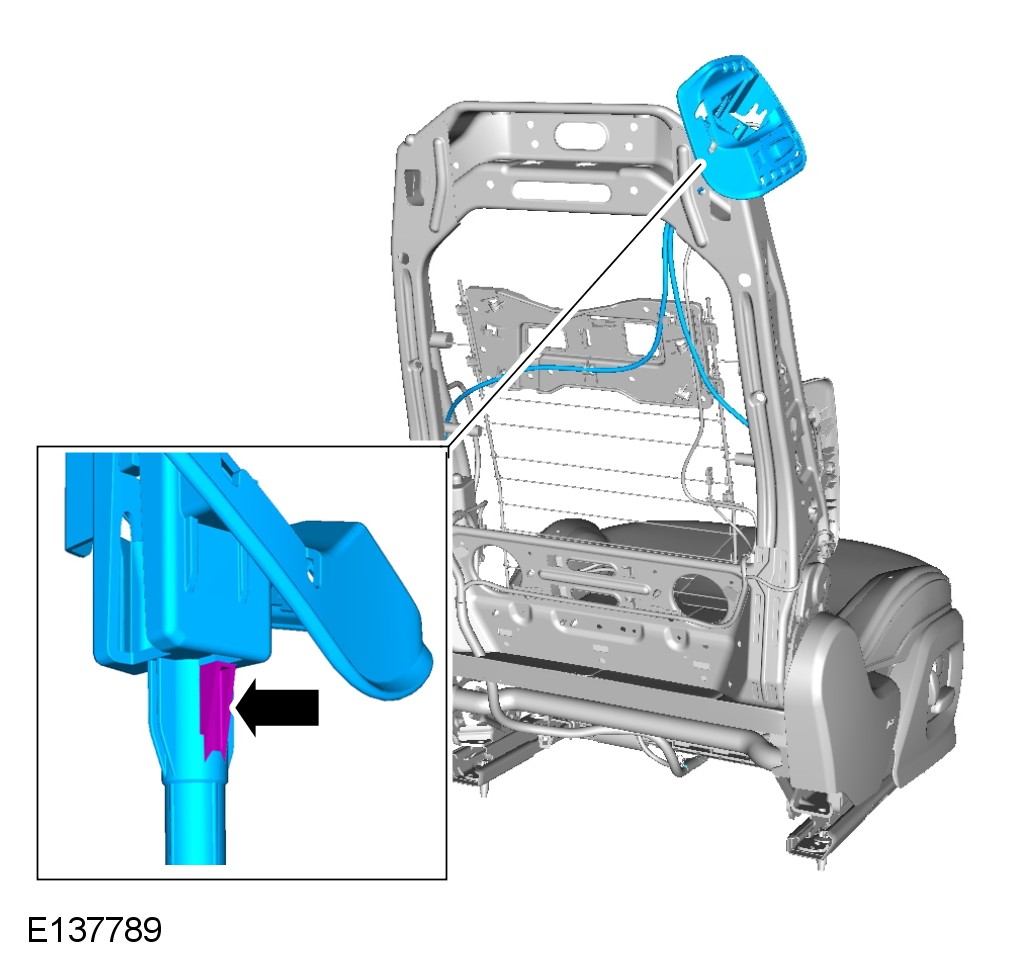

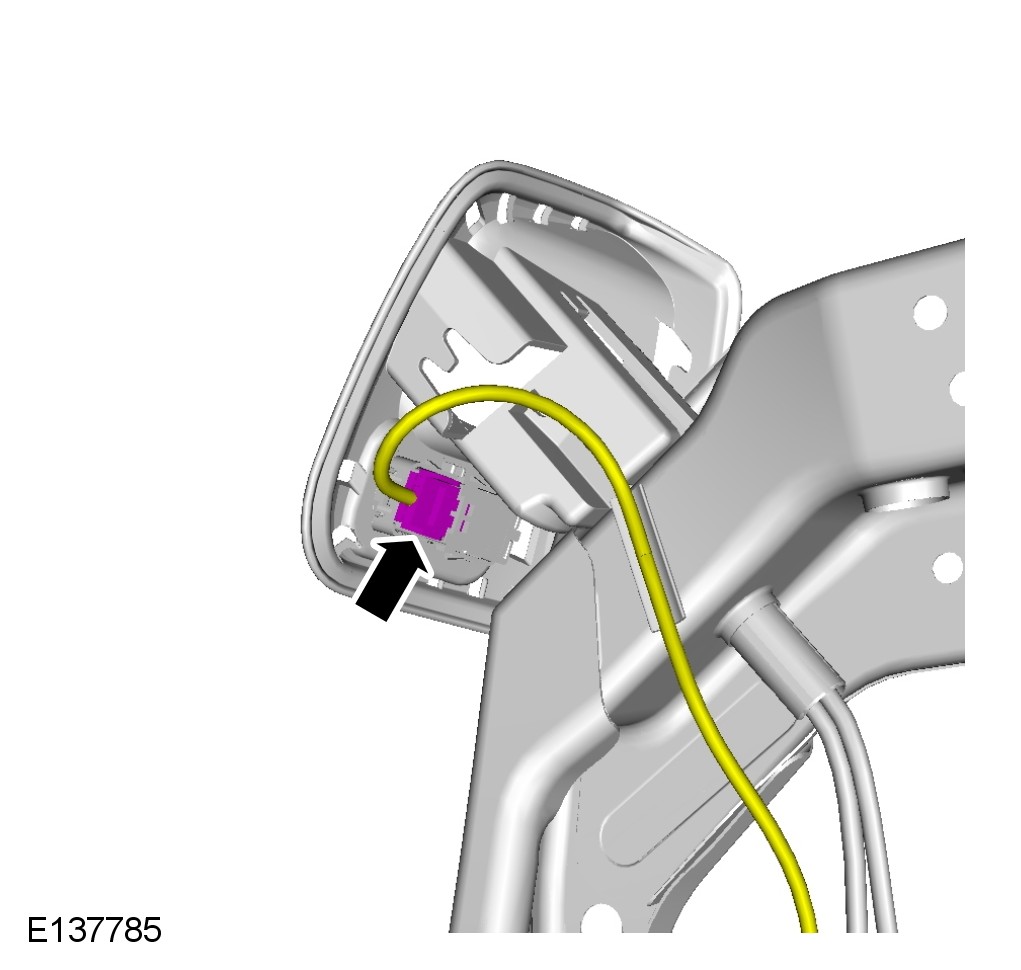

WARNING: The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.

WARNING: Make sure that the air bag is correctly installed in to the fabric chute. Failure to follow this instruction may result in incorrect operation of the air bag.

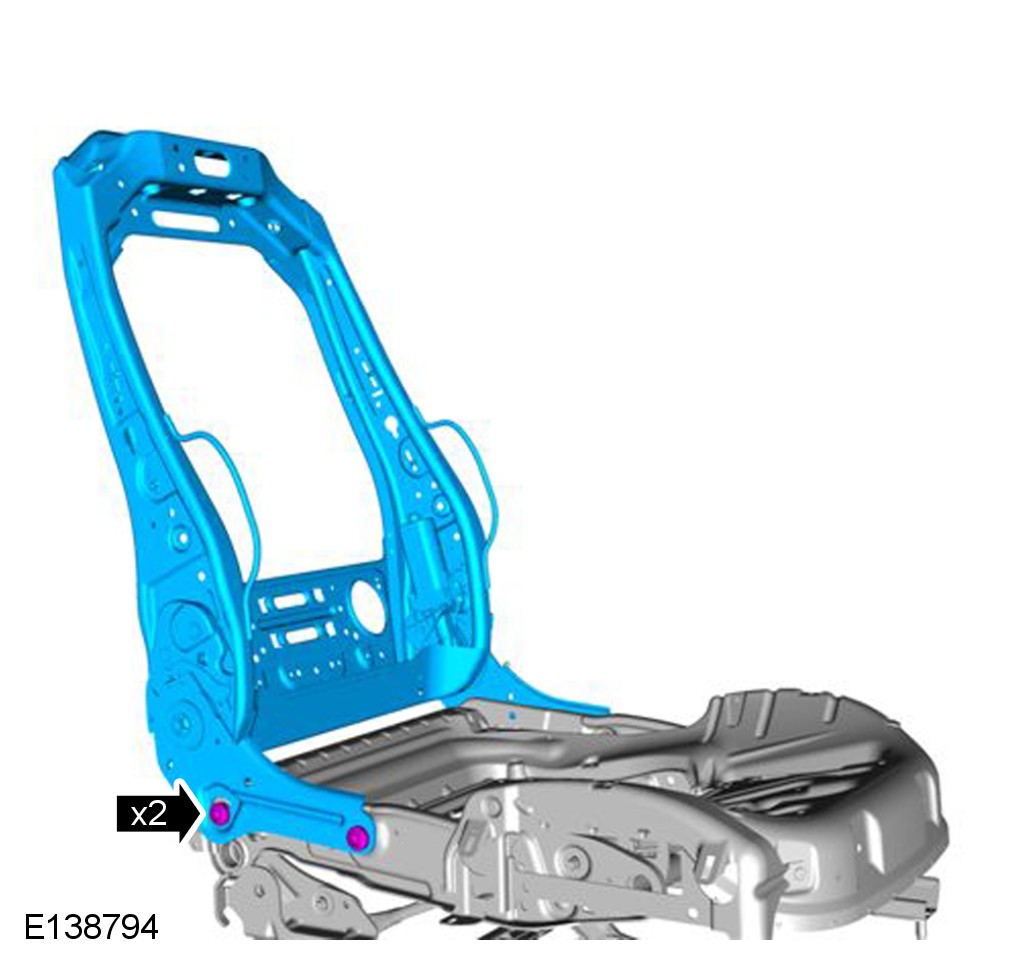

Torque to: 7 Nm
