Front Seat Tilt Motor

Front Seat Tilt Motor
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

NOTE:
Removal steps in this procedure may contain installation details.
1 Raise the front seat to the highest position.
2 Disconnect the battery ground cable.
For additional information, refer to Specifications [1][2]Battery

WARNING: To avoid accidental deployment, the restraints control module backup power supply must be depleted. Wait at least two minutes after disconnecting the battery ground cable(s) before commencing any repair or adjustment to the supplemental restraint system (SRS), or any component(s) adjacent to the SRS sensors. Failure to follow these instructions may result in personal injury.
For additional information, refer to Standard Workshop Practices Standard Workshop Practices
For additional information, refer to Front Seat Removal and Replacement

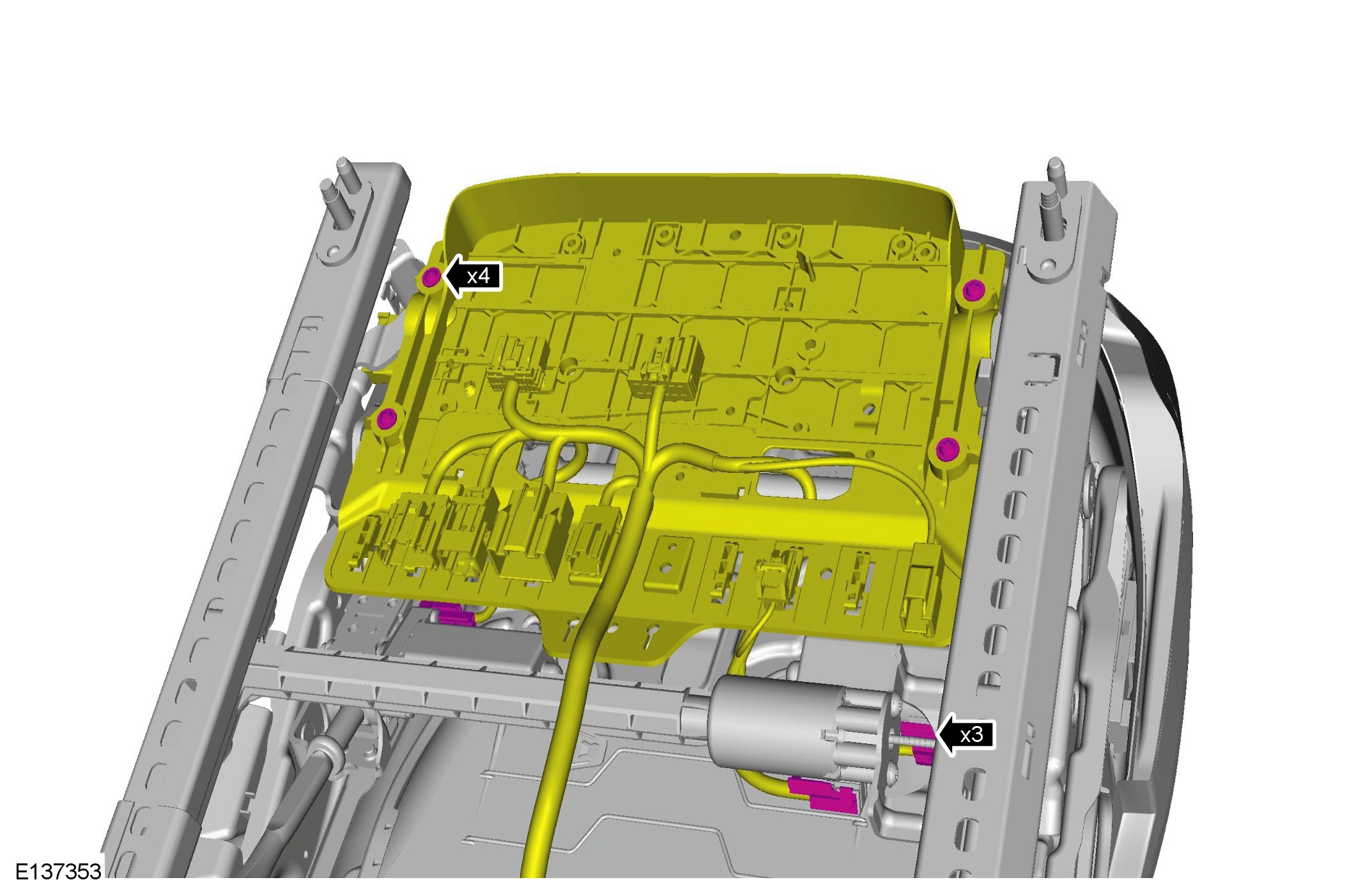

Torque to: 10 Nm





NOTE:
Front seat track shown removed for clarity.
Bolt: 22 Nm
Screws: 10 Nm

Installation
1 To install, reverse the removal procedure.
