Front Seat Track Motor

Front Seat Track Motor
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

NOTE:
Removal steps in this procedure may contain installation details.
1 Raise the front seat to the highest position.
2 Disconnect the battery ground cable.
For additional information, refer to Specifications [1][2]Battery

WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.
For additional information, refer to Standard Workshop Practices Standard Workshop Practices
For additional information, refer to Front Seat Removal and Replacement





NOTE:
Front seat track shown removed for clarity.

NOTE:

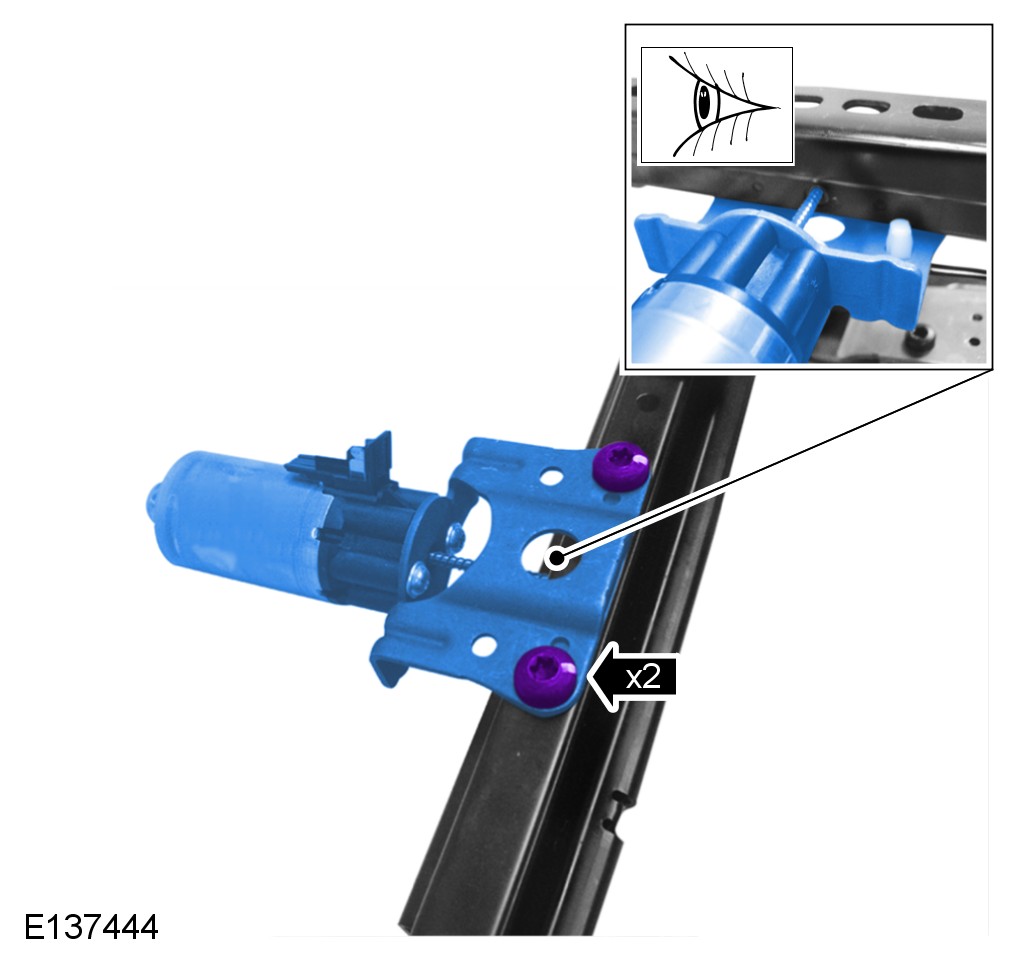

Install the rear retaining bolt first.

Torque to: 28 Nm





NOTE:
Note the orientation of the electrical connector and wiring harness.





NOTE:
Make a note of the orientation of the front seat track motor cable.

NOTE:
Do not remove the front seat track motor cable guide or cable from the seat frame.

Torque to: 10 Nm





NOTE:
Make a note of the orientation of the electrical connector.

Torque to: 1.7 Nm

Installation






CAUTION: Make sure that these components are installed to the noted removal position.

CAUTION: Make sure that the front seat track motor is correctly installed to the front seat track.
1 To install, reverse the removal procedure.
