Rear Seat Cushion Cover

Rear Seat Cushion Cover
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

NOTE:

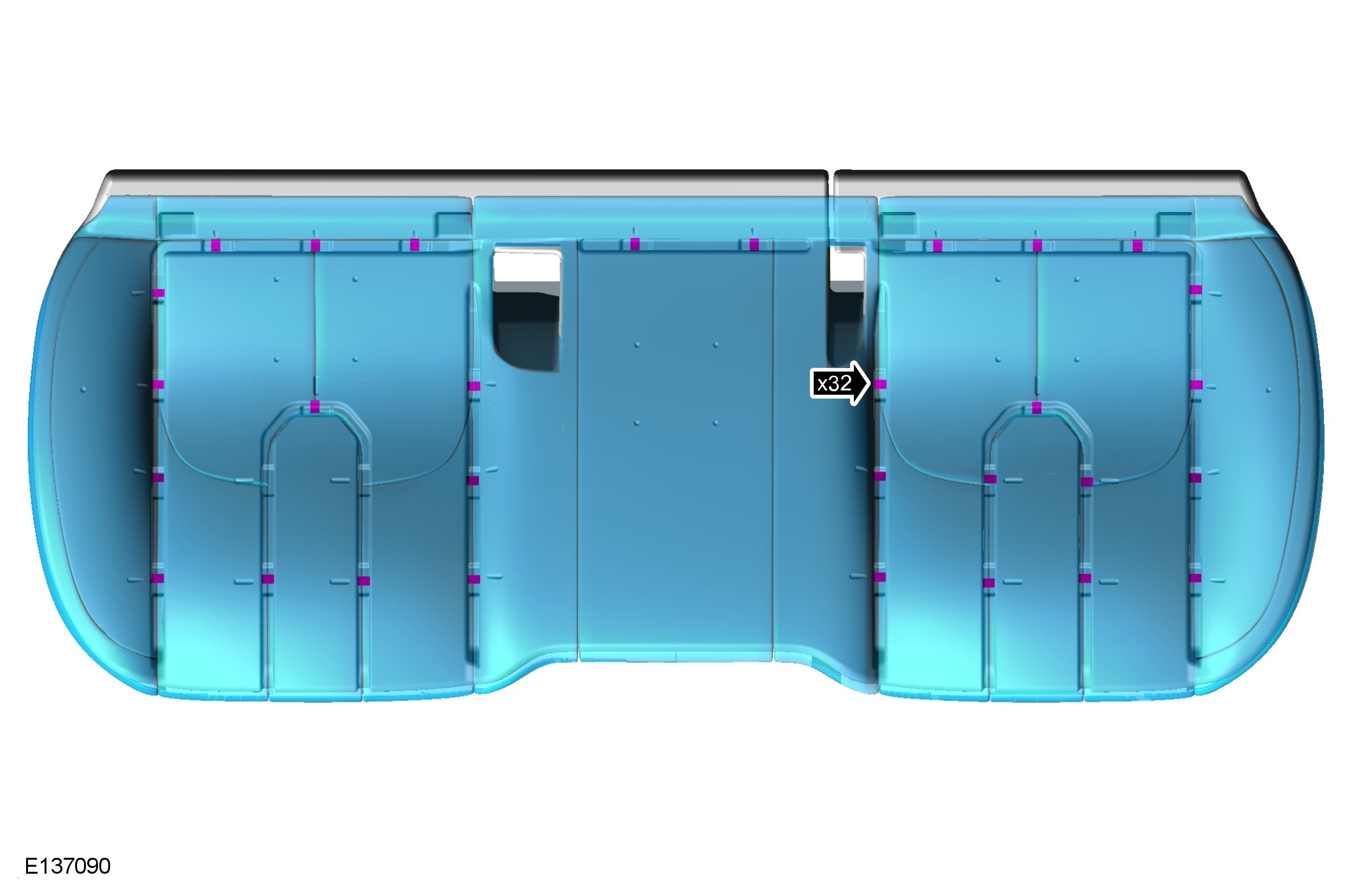

Removal steps in this procedure may contain installation details.
For additional information, refer to Rear Seat Cushion Rear Seat Cushion









NOTE:

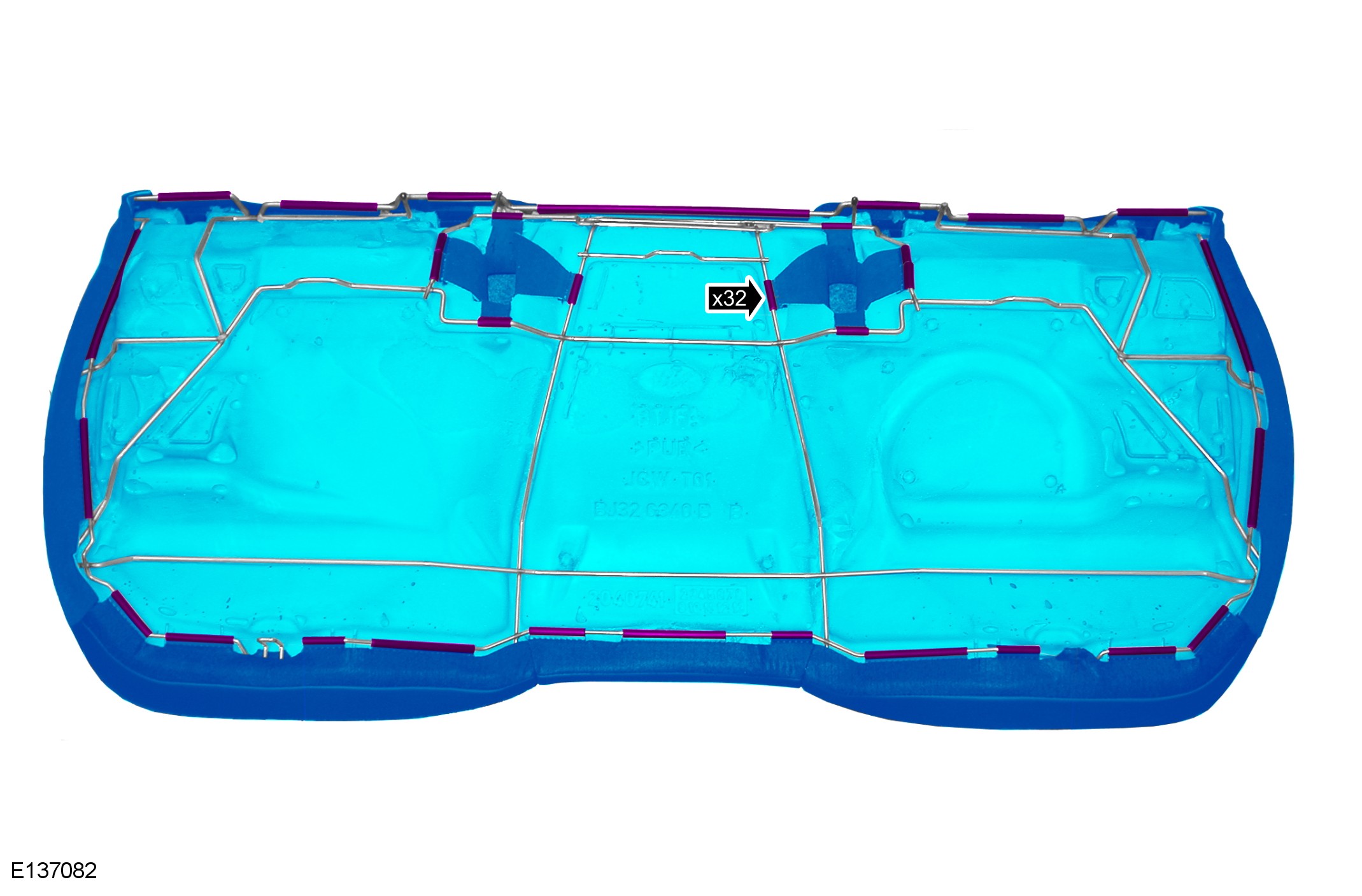

Make sure that new hog rings are installed.

Installation






NOTE:
If a replacement rear seat backrest cover is to be installed, cut out holes for the head restraint guide tubes and center safety belt trim panel. Use the existing rear seat backrest cover as a template. This also applies to the backrest squab foam.

NOTE:
Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.

NOTE:
Make sure that new hog rings are installed.





NOTE:

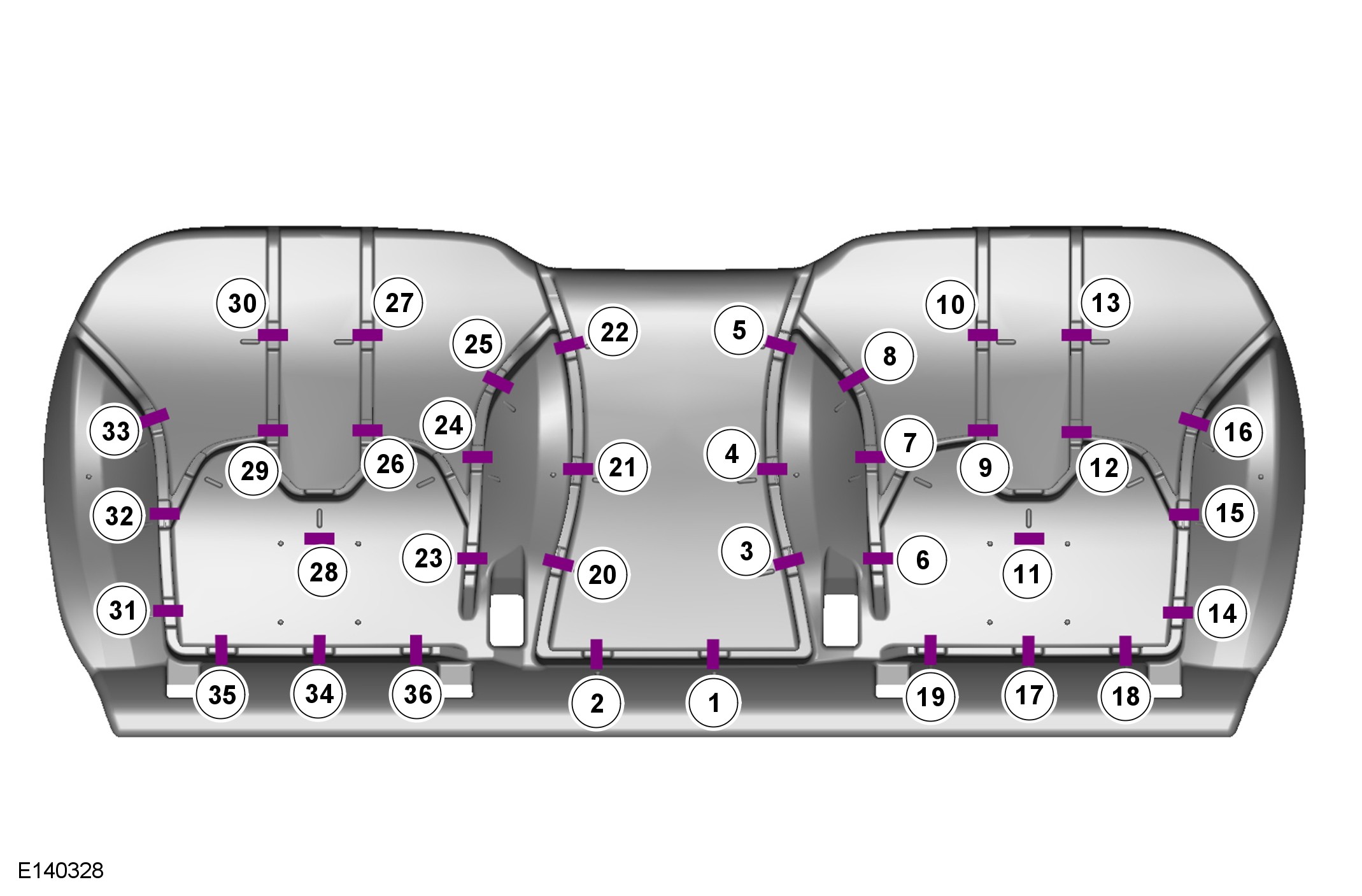

Make sure that the hogrings are installed in the sequence shown.





NOTE:
Make sure that the hogrings are installed in the sequence shown.
1 To install, reverse the removal procedure.
