Antilock Brakes / Traction Control Systems: Locations

Anti-Lock Control - Traction Control

NOTE:
RHD (right-hand drive) installations shown; LHD (left-hand drive) installations similar.

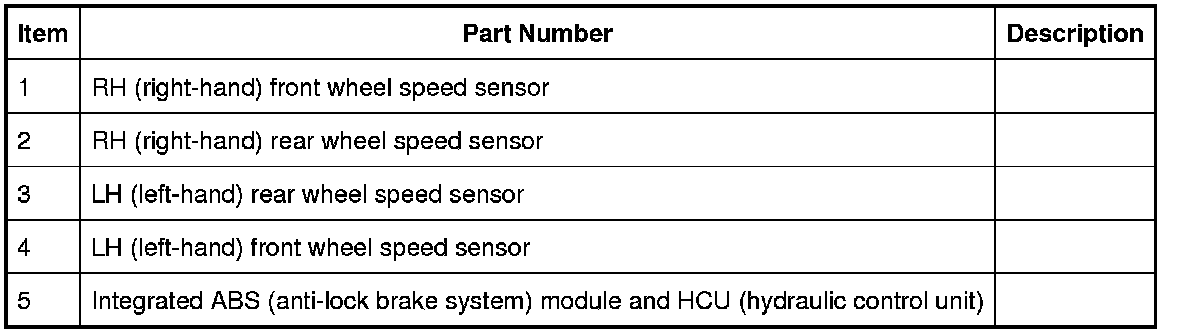

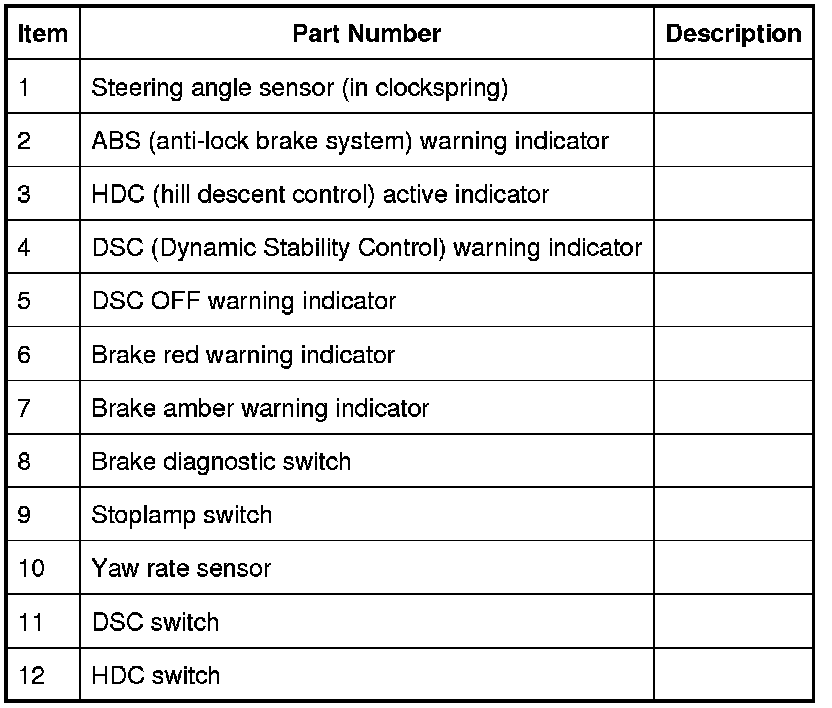

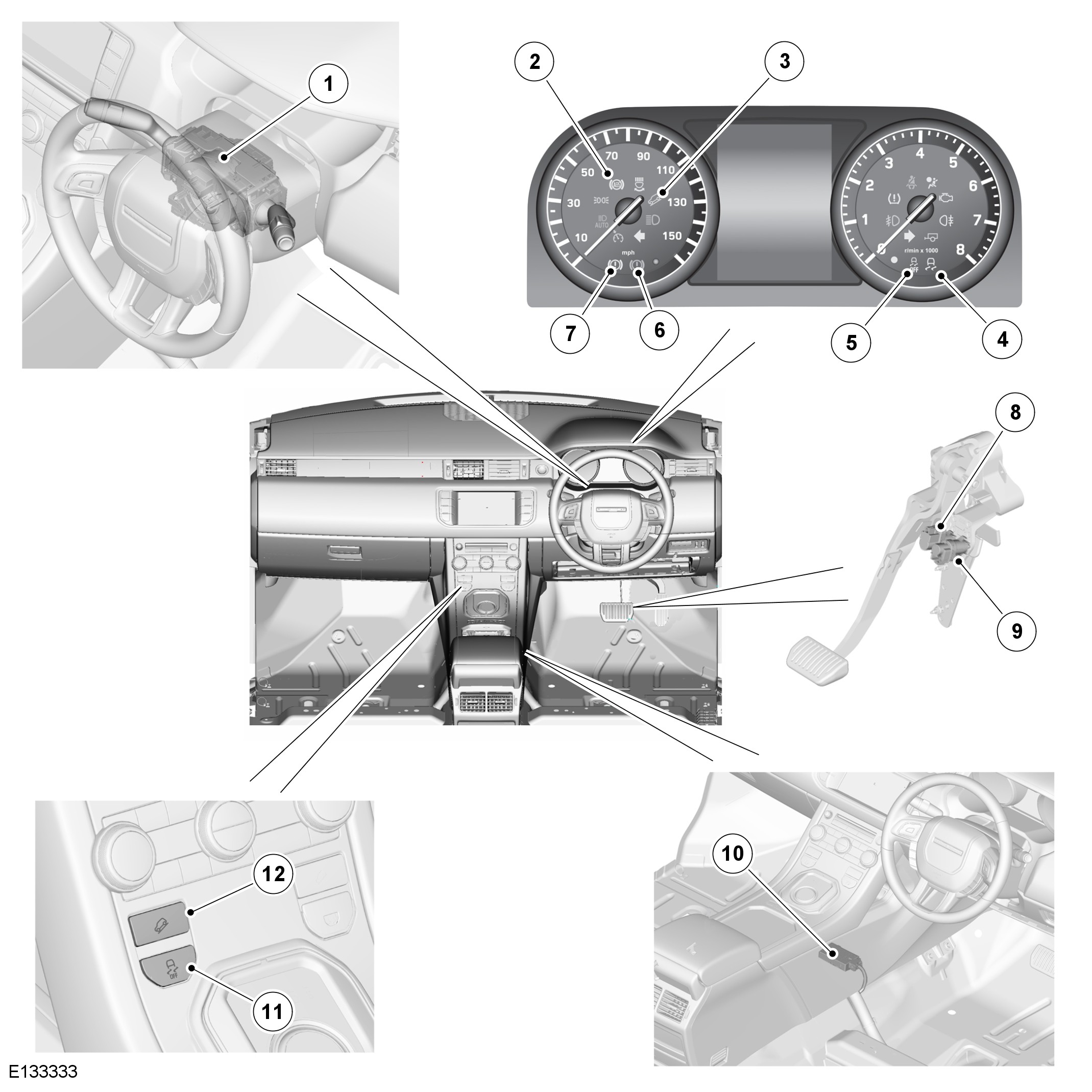

COMPONENT LOCATION - SHEET 1 OF 2
