Brakes and Traction Control: Testing and Inspection

Inspection and Verification

WARNING: Before carrying out a road test, make sure the vehicle is safe to do so. Failure to follow this instruction may result in personal injury.

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does not guarantee confirmation of a fault and may also cause additional faults in the vehicle being checked and/or the donor vehicle.

NOTE:
Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.
1 Verify the customer concern.
- If a road test is necessary make sure the vehicle is safe to do so.

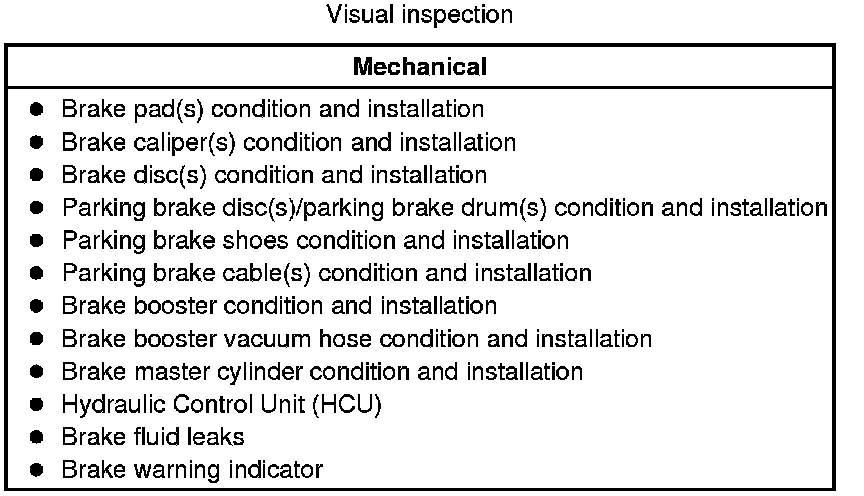

2 Visually inspect for obvious mechanical faults.





3 If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.

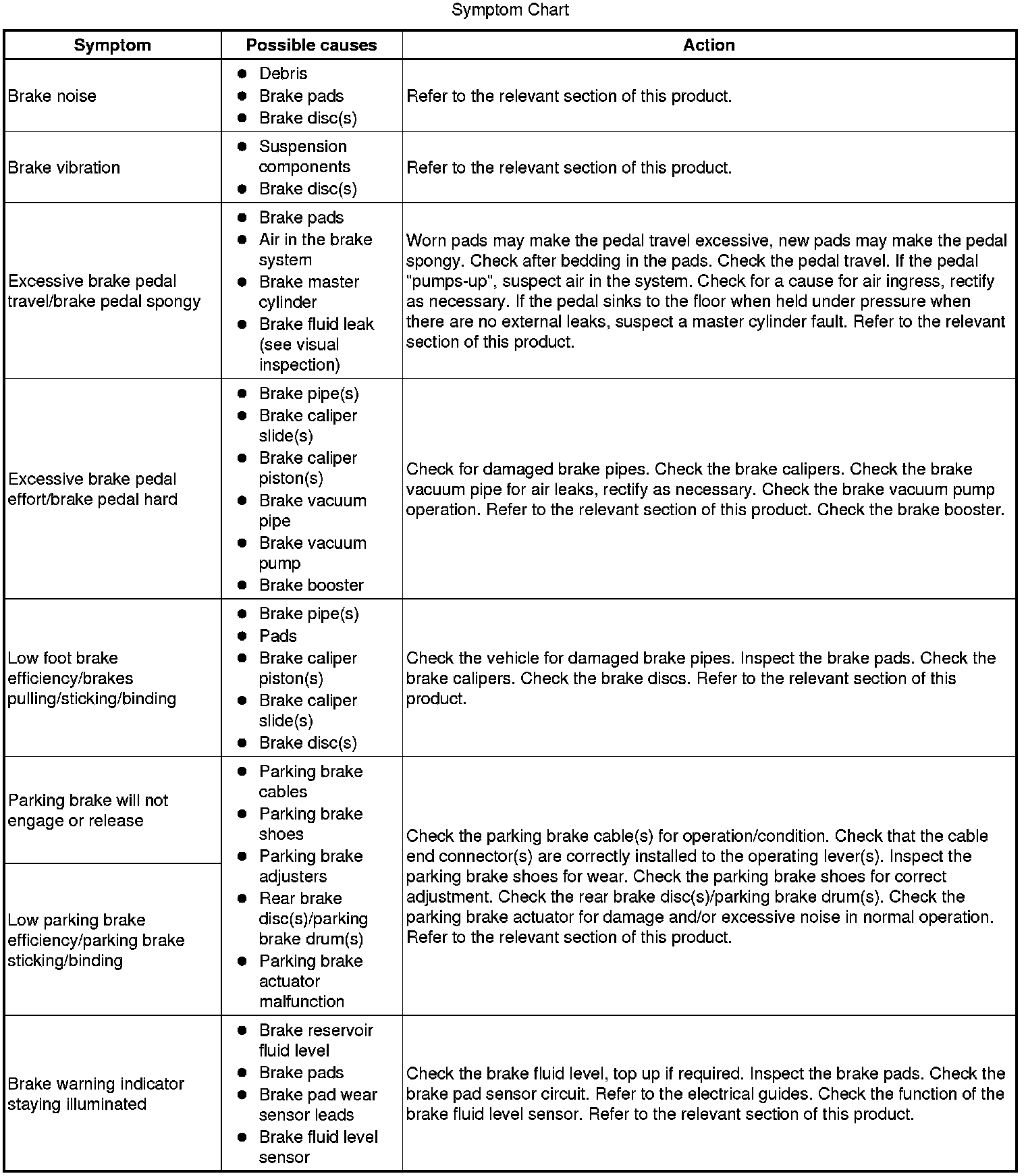

4 Use the approved diagnostic system or a scan tool to retrieve any diagnostic trouble codes (DTCs) before moving onto the symptom chart.
- Make sure that all DTCs are cleared following rectification






DTC Index
For a complete list of all diagnostic trouble codes that could be logged on this vehicle, please refer to Vehicle / A L L Diagnostic Trouble Codes ( DTC ). For additional information, refer to Diagnostic Trouble Code (DTC) Index - DTC: Anti-lock Braking System (ABS) Diagnostic Trouble Code Descriptions
For additional information, refer to Diagnostic Trouble Code (DTC) Index - DTC: Electric Parking Brake (PBM) Diagnostic Trouble Code Descriptions
