Land Rover
>>
2012
>>
Range Rover Evoque (LV) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
>>

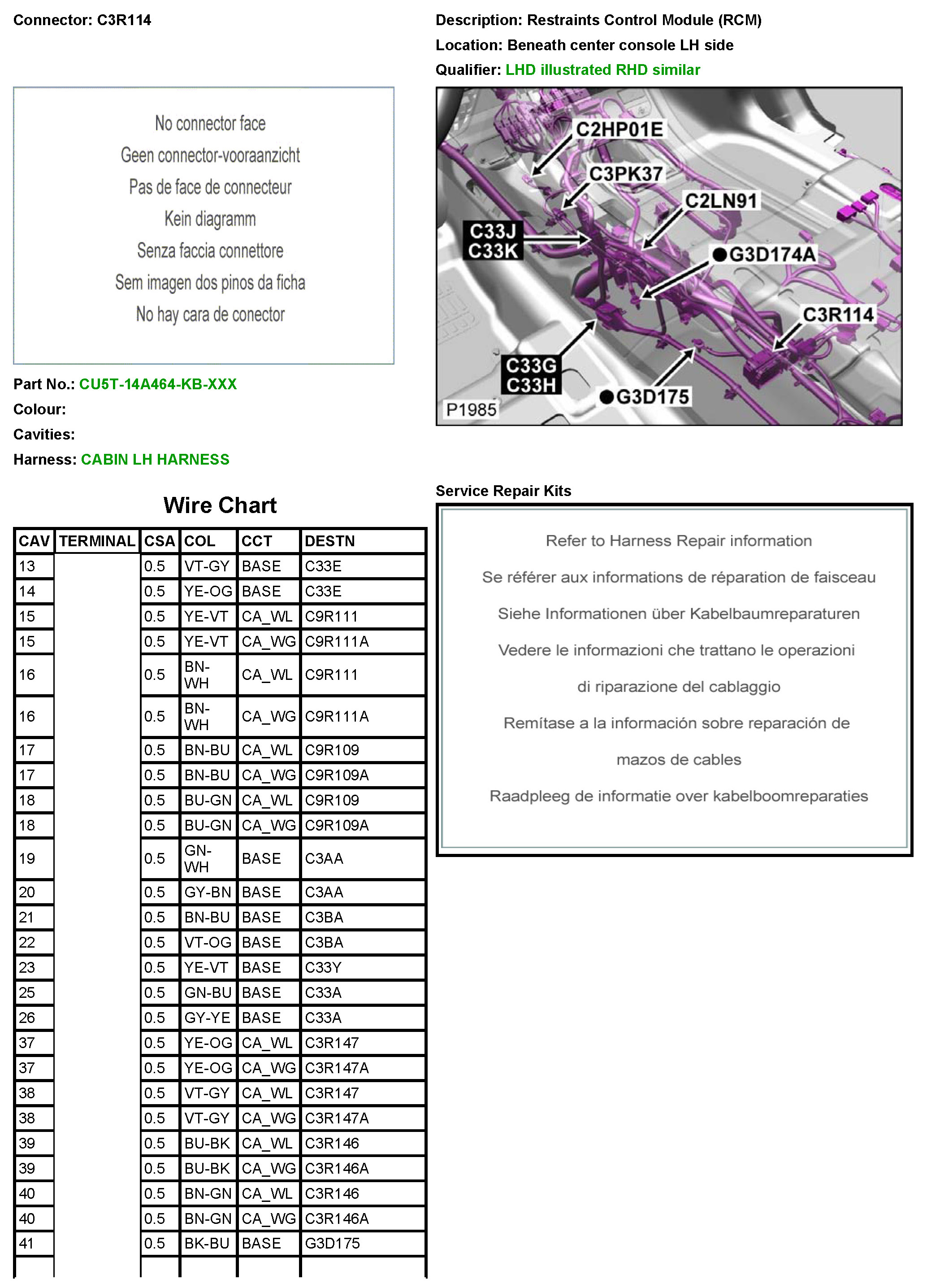

C3R114 Restraints Control Module (RCM)
C3R114 Restraints Control Module (RCM)
C3R114
