Range Rover Evoque (LV) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brakes and Traction Control
>>
Braking Sensor/Switch
Braking Sensor/Switch

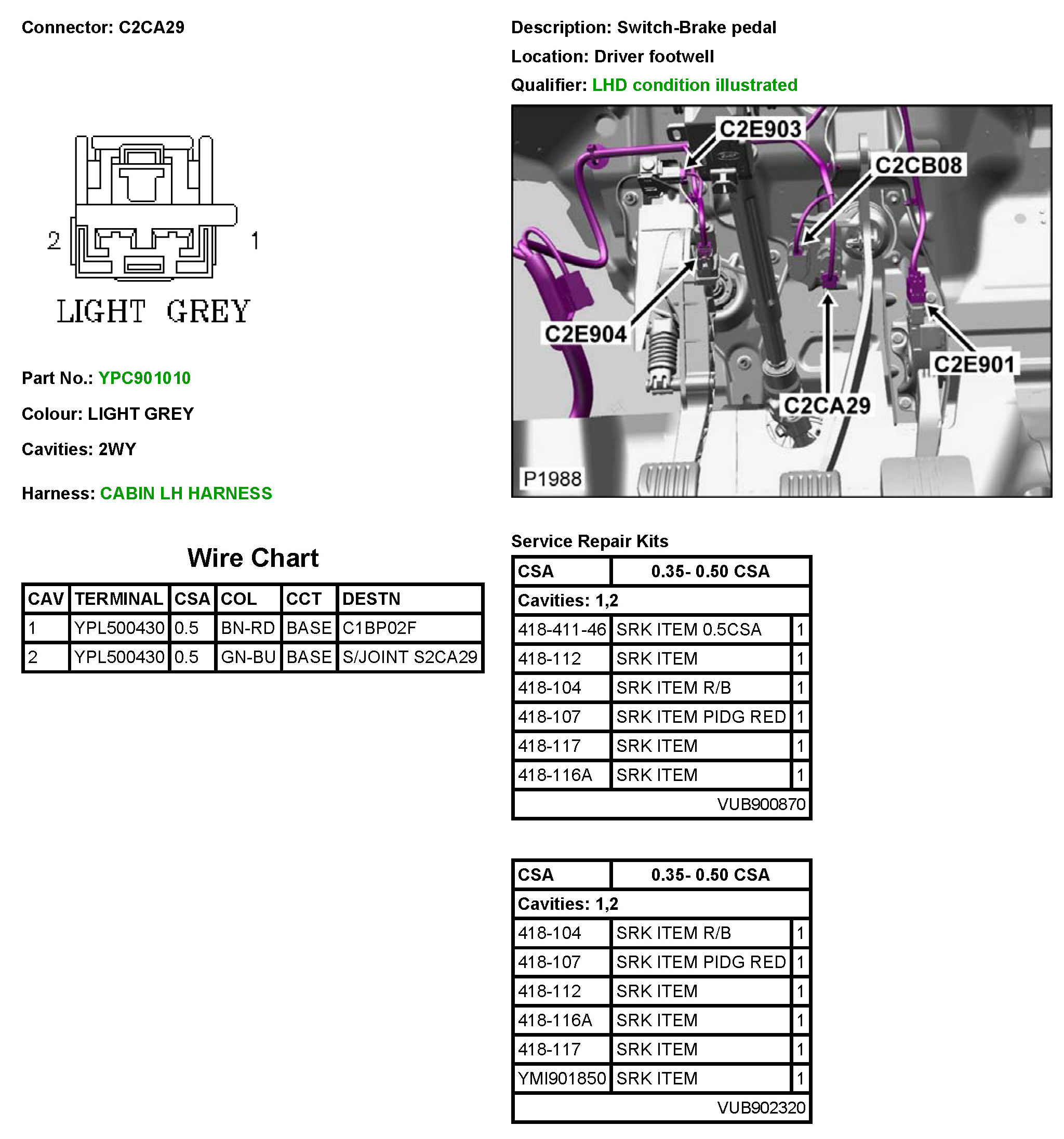

C2CA29
