Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2012
>>
Range Rover Evoque (LV) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C33AH - C33X
>>

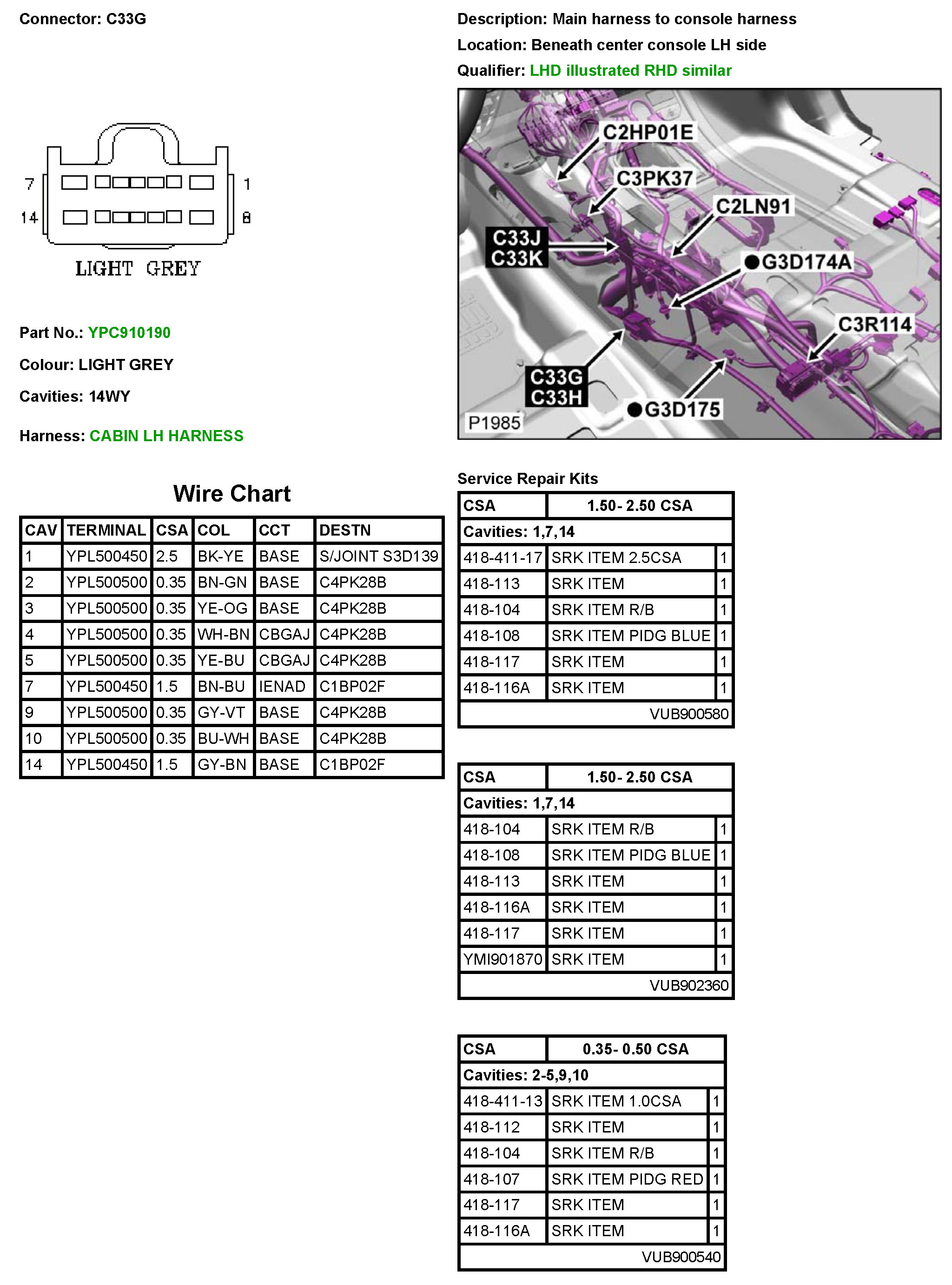

C33G
C33G
C33G
