Range Rover Evoque (LV) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Module
>>

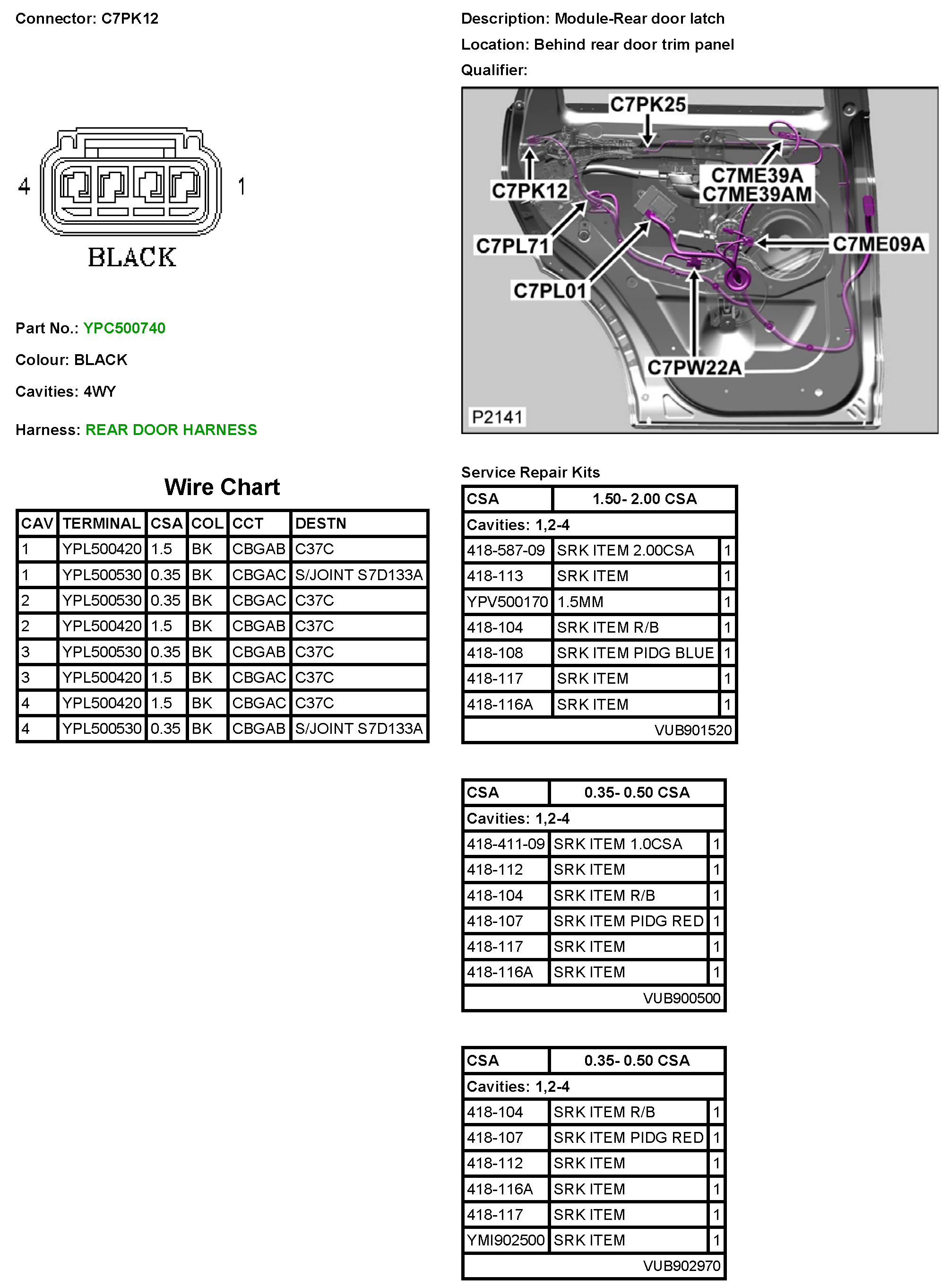

C7PK12 Module-Rear Door Latch
C7PK12 Module-Rear Door Latch
C7PK12
