Home >> Land Rover >> 2012 >> Range Rover Evoque (LV) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C1E105A Engine Control-Module (ECM)

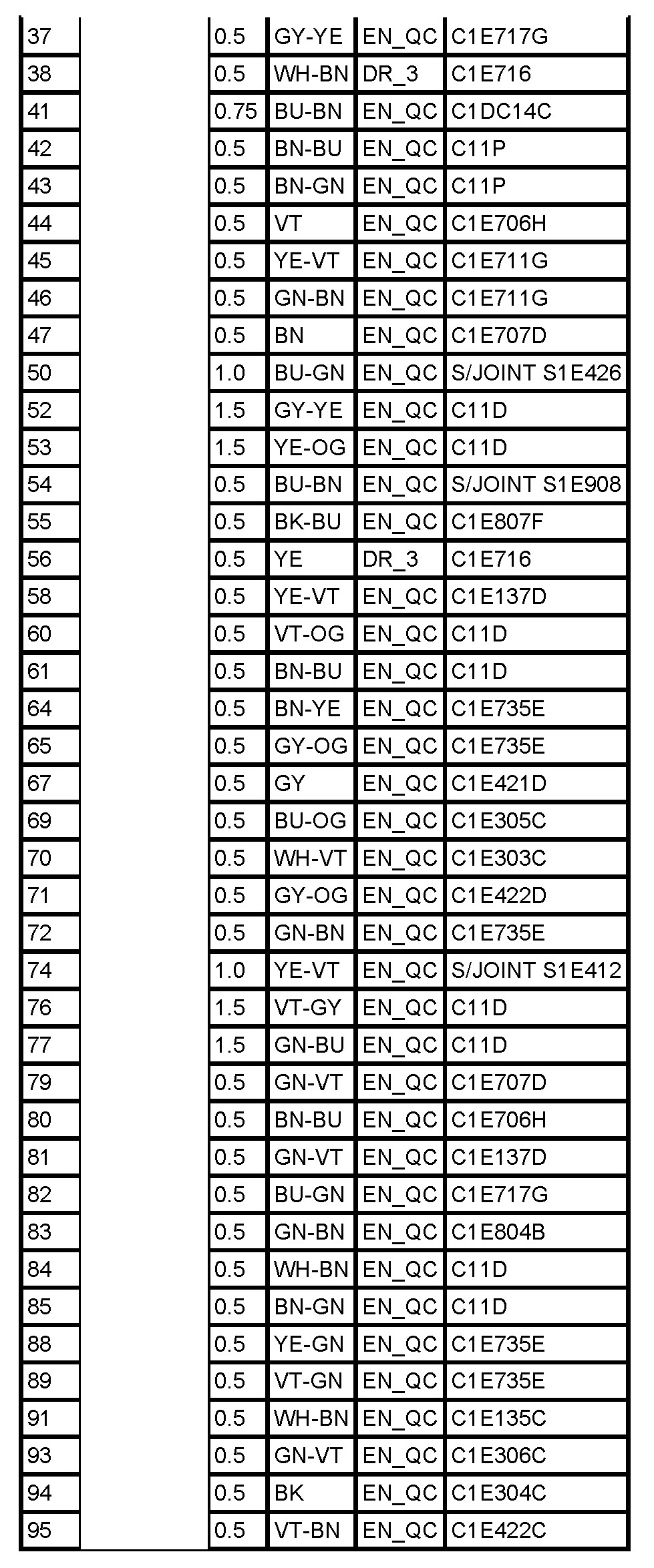

C1E105A Engine Control-Module (ECM)



C1E105A
