Range Rover Evoque (LV) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>

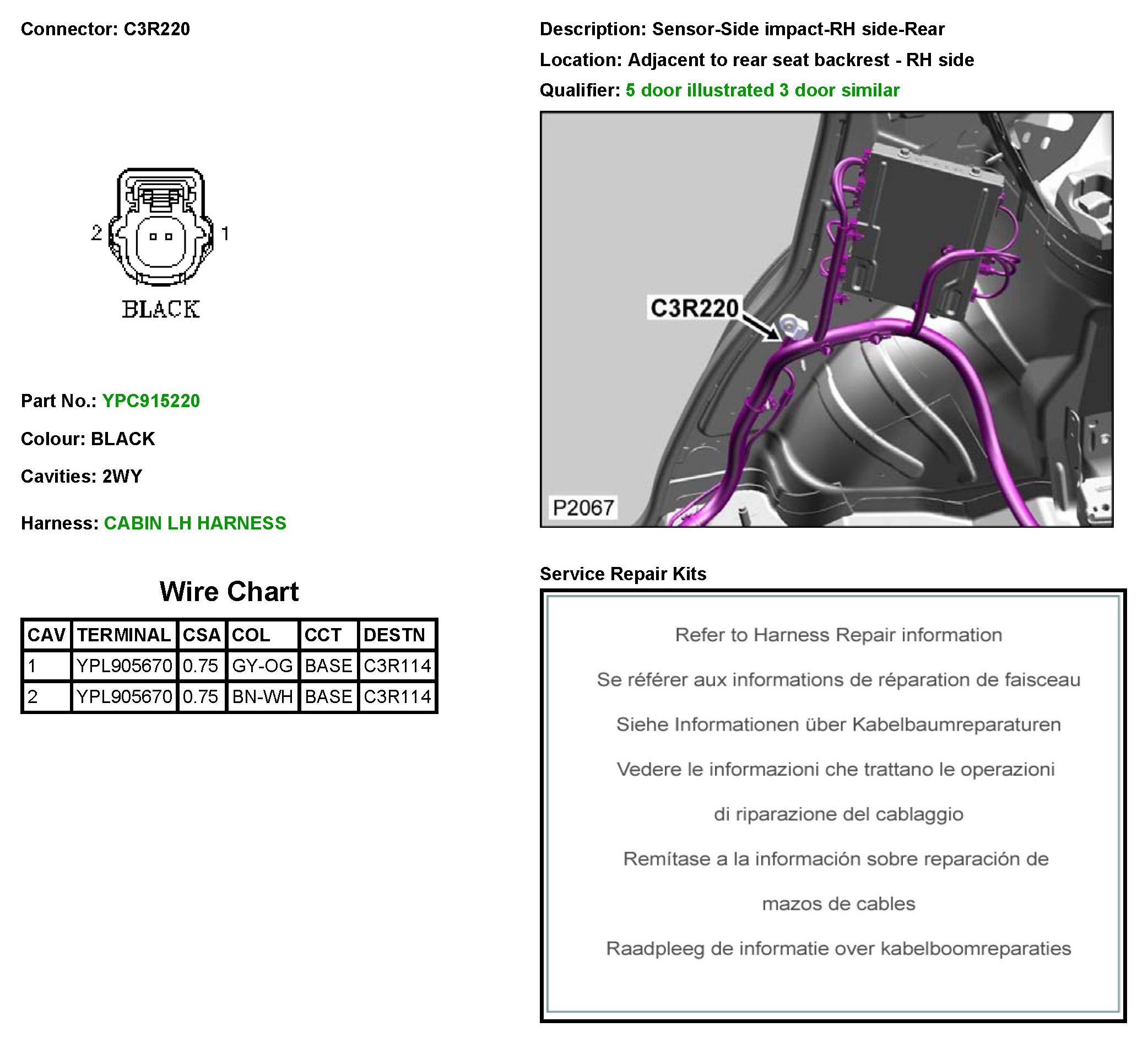

C3R220 Sensor-Side Impact-RH Side-Rear
C3R220 Sensor-Side Impact-RH Side-Rear
C3R220
