Home >> Land Rover >> 2012 >> Range Rover Evoque (LV) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor >> CBR218 Sensor-Side Impact-Front Door-RH

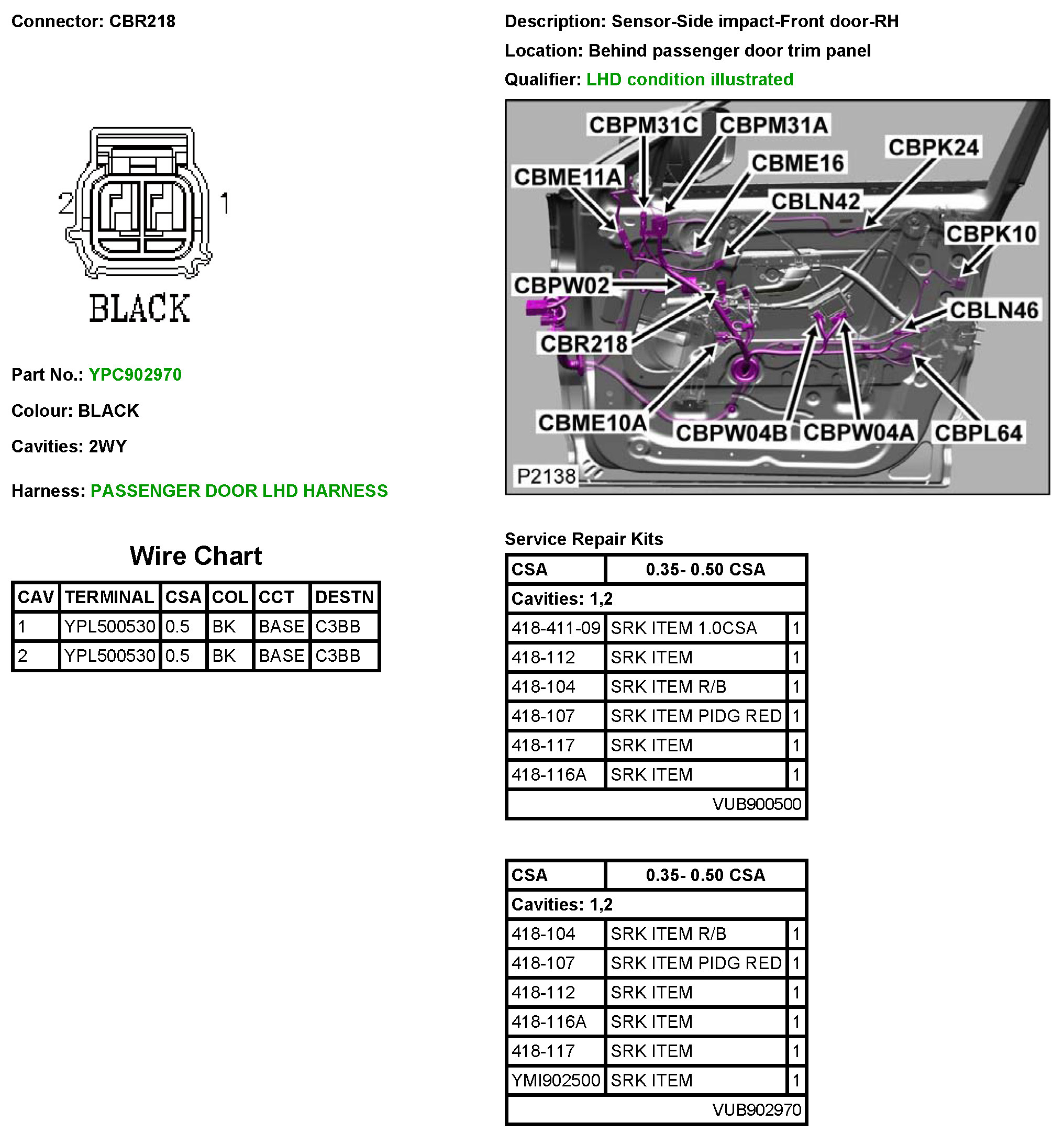

CBR218 Sensor-Side Impact-Front Door-RH



CBR218
