Home >> Land Rover >> 2012 >> Range Rover Evoque (LV) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Module >> C4PK28B Keyless Vehicle Module

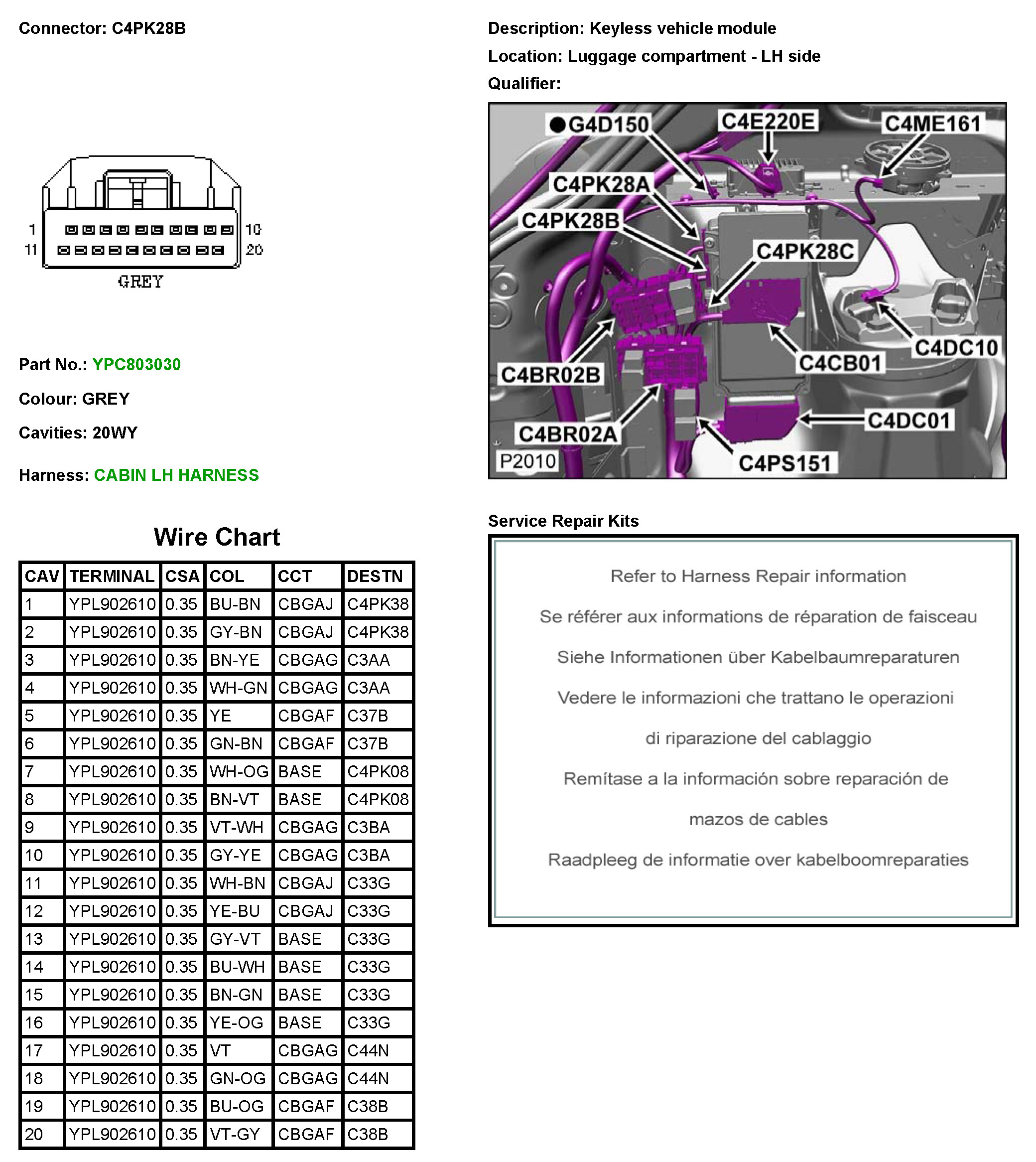

C4PK28B Keyless Vehicle Module



C4PK28B
