Parking Assist Distance Sensor
>>

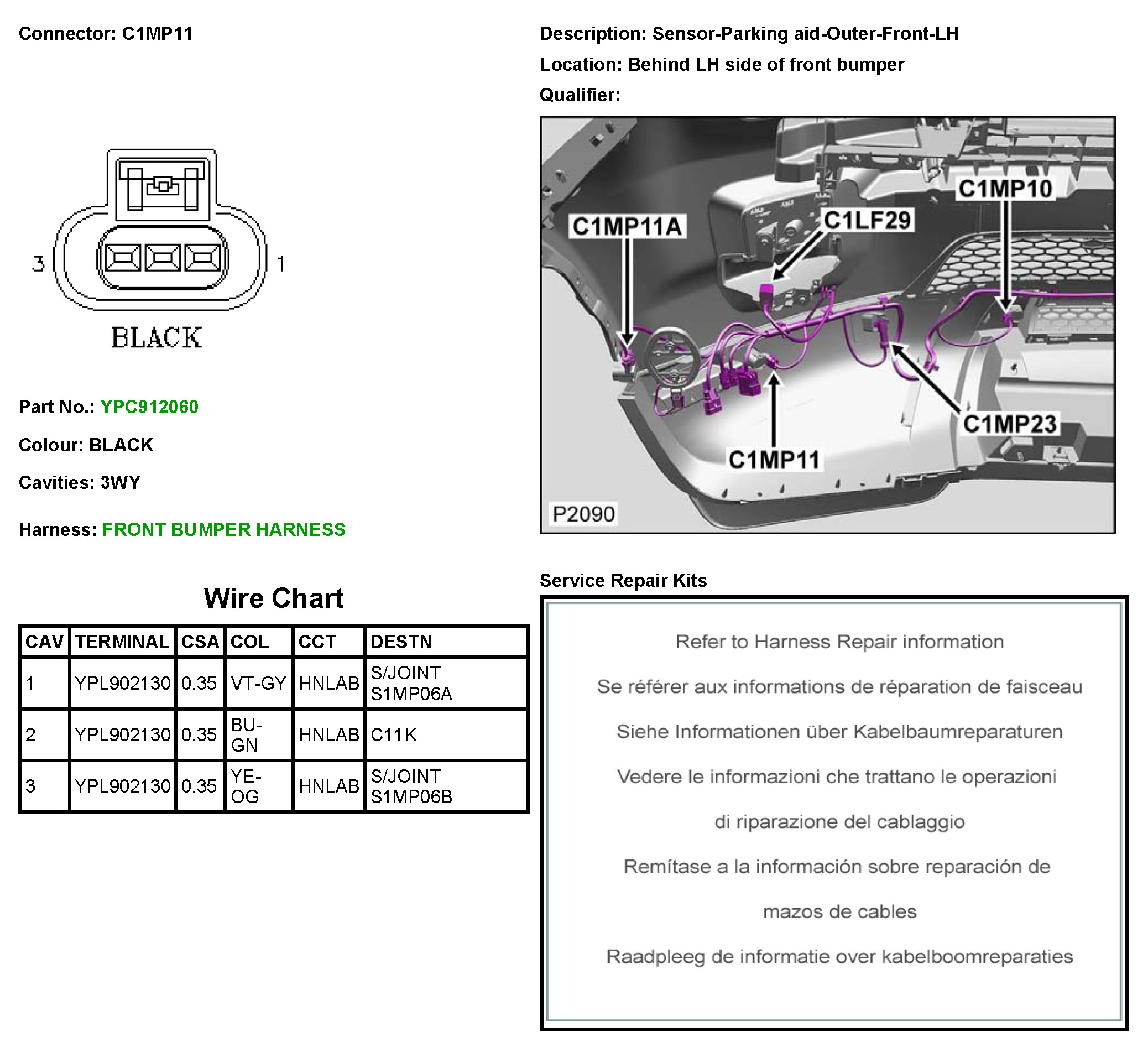

C1MP11 Sensor-Parking Aid-Outer-Front-LH
C1MP11 Sensor-Parking Aid-Outer-Front-LH
C1MP11
