Range Rover Evoque (LV) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
C1LF08A - C1RT17A
>>

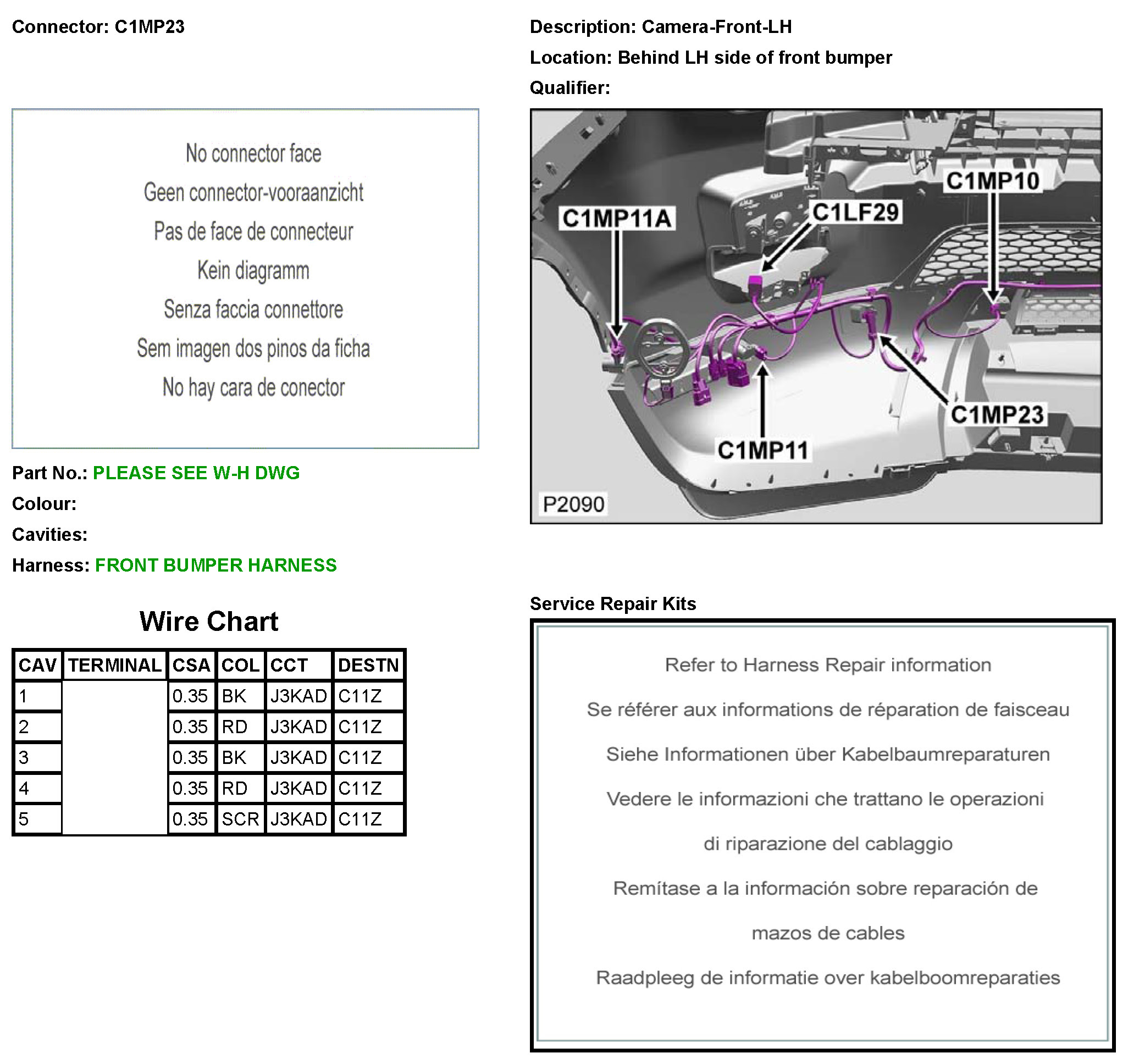

C1MP23
C1MP23
C1MP23
