Engine Wiring Harness

Engine Wiring Harness
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

CAUTION: Make sure that the wiring harness is not twisted or damaged on removal. Failure to follow this instruction may result in damage to the vehicle.

CAUTION: Take extra care not to damage the wiring harness clips.

NOTE:
Removal steps in this procedure may contain installation details.
1 Disconnect the battery ground cable.
For additional information, refer to Specifications [1][2]Battery

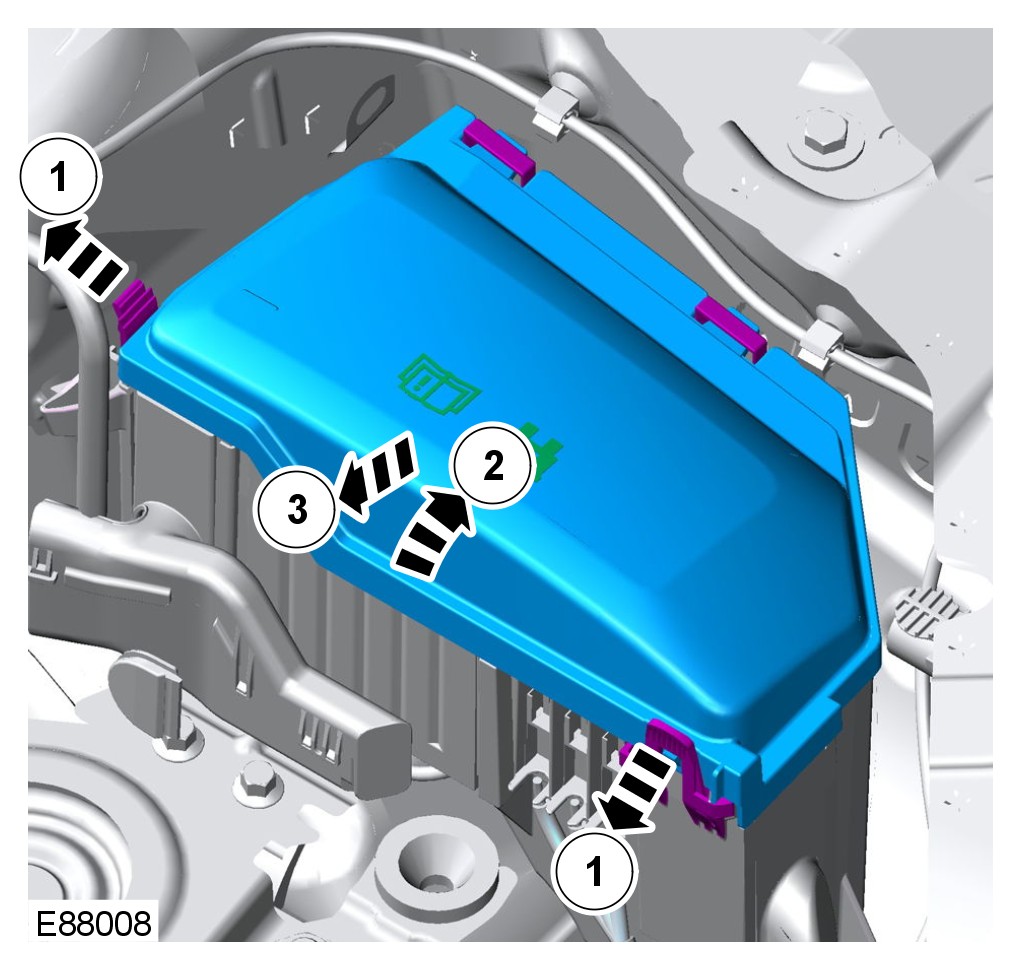

WARNING: Make sure to support the vehicle with axle stands.
2 Raise and support the vehicle.
For additional information, refer to Plenum Chamber Plenum Chamber
For additional information, refer to Air Cleaner Air Cleaner
For additional information, refer to Air Cleaner Intake Pipe Air Cleaner Intake Pipe
For additional information, refer to Engine Undershield Engine Undershield

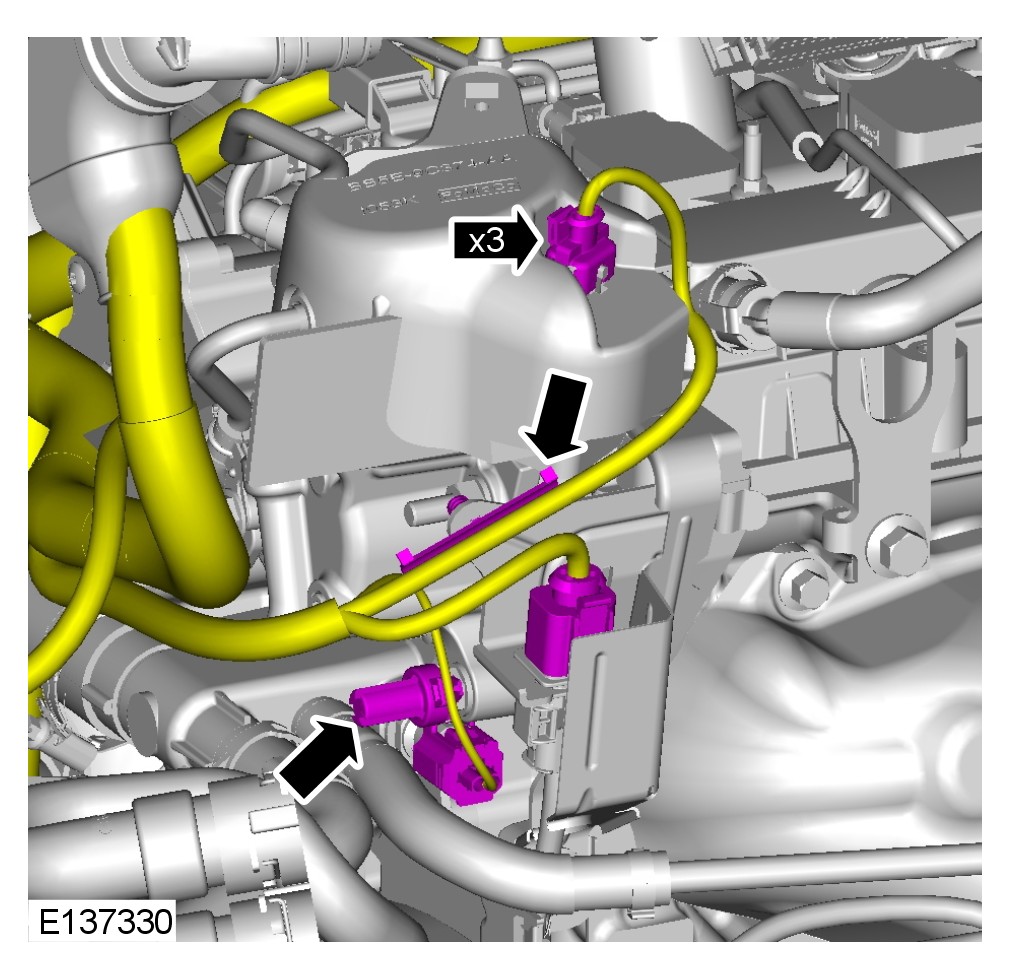

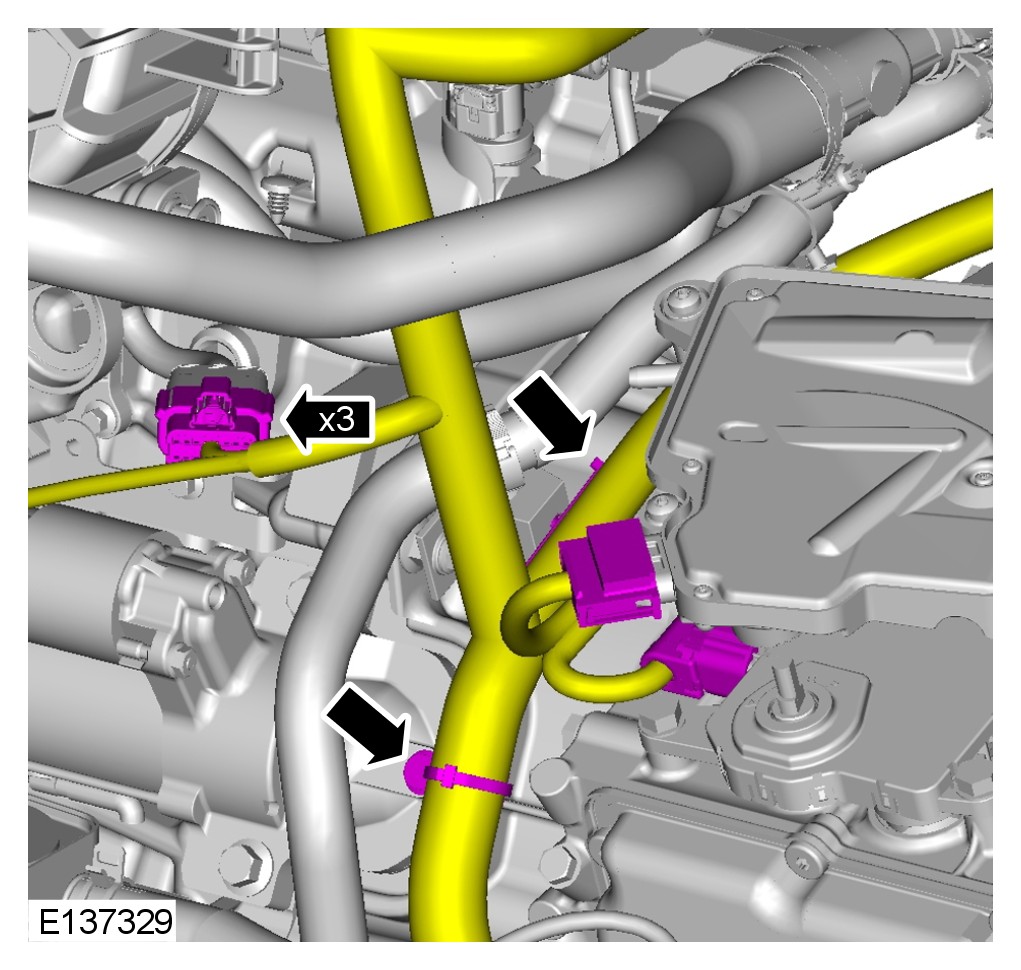

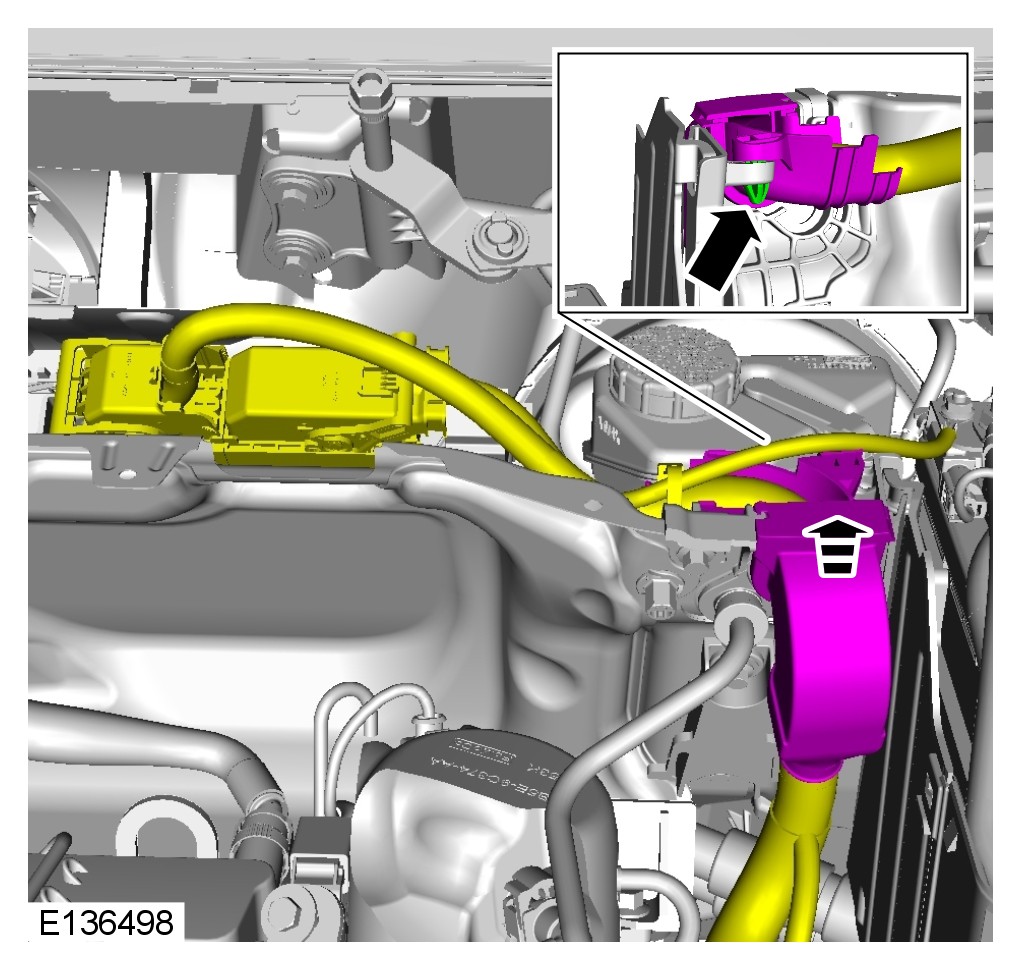

NOTE:
LH illustration shown, RH is similar.
3 Remove the front RH wheel arch liner.
For additional information, refer to Fender Splash Shield Fender Splash Shield

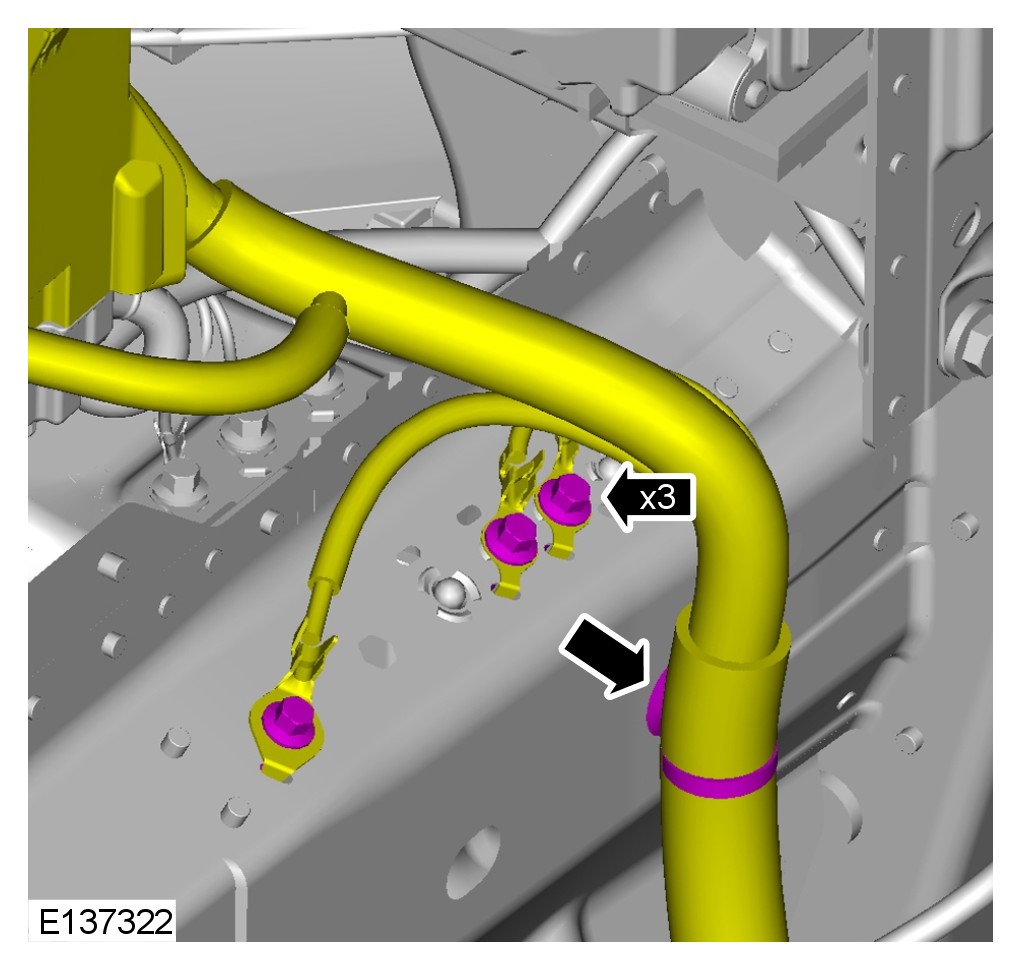

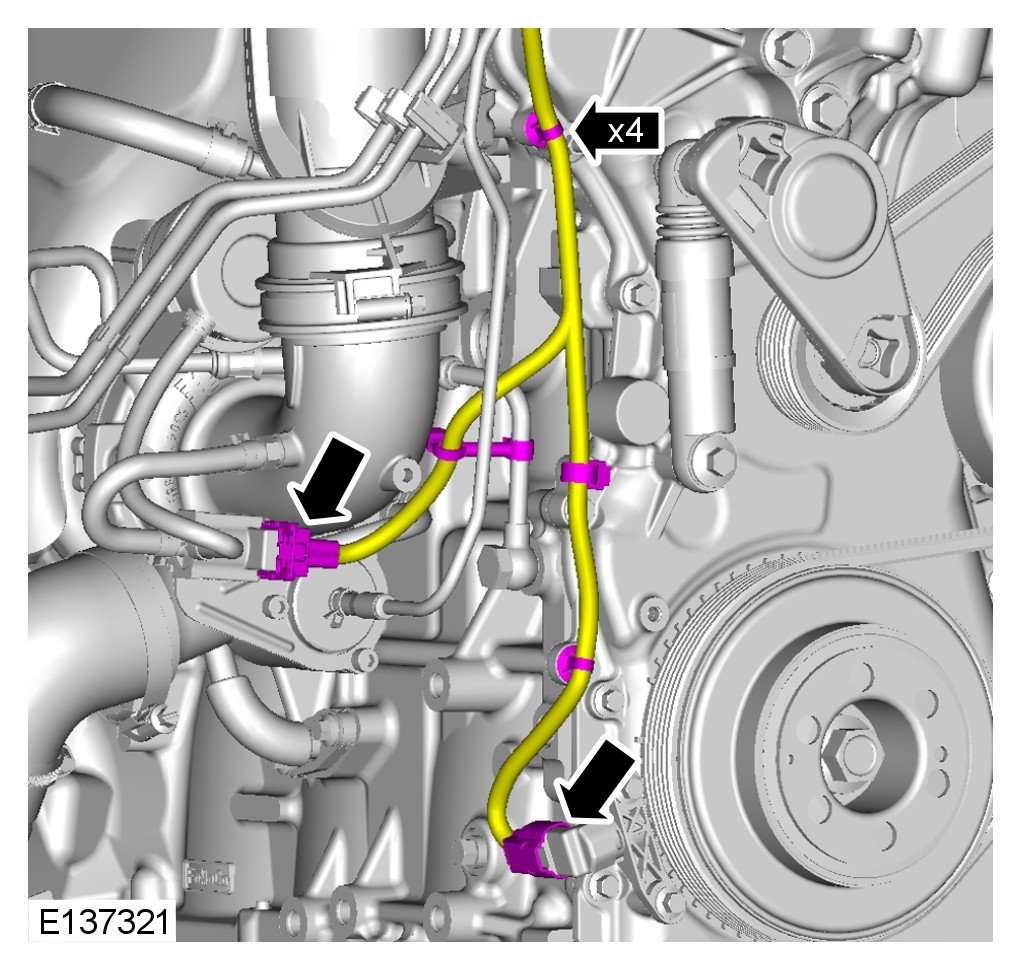

Torque to: 6 Nm

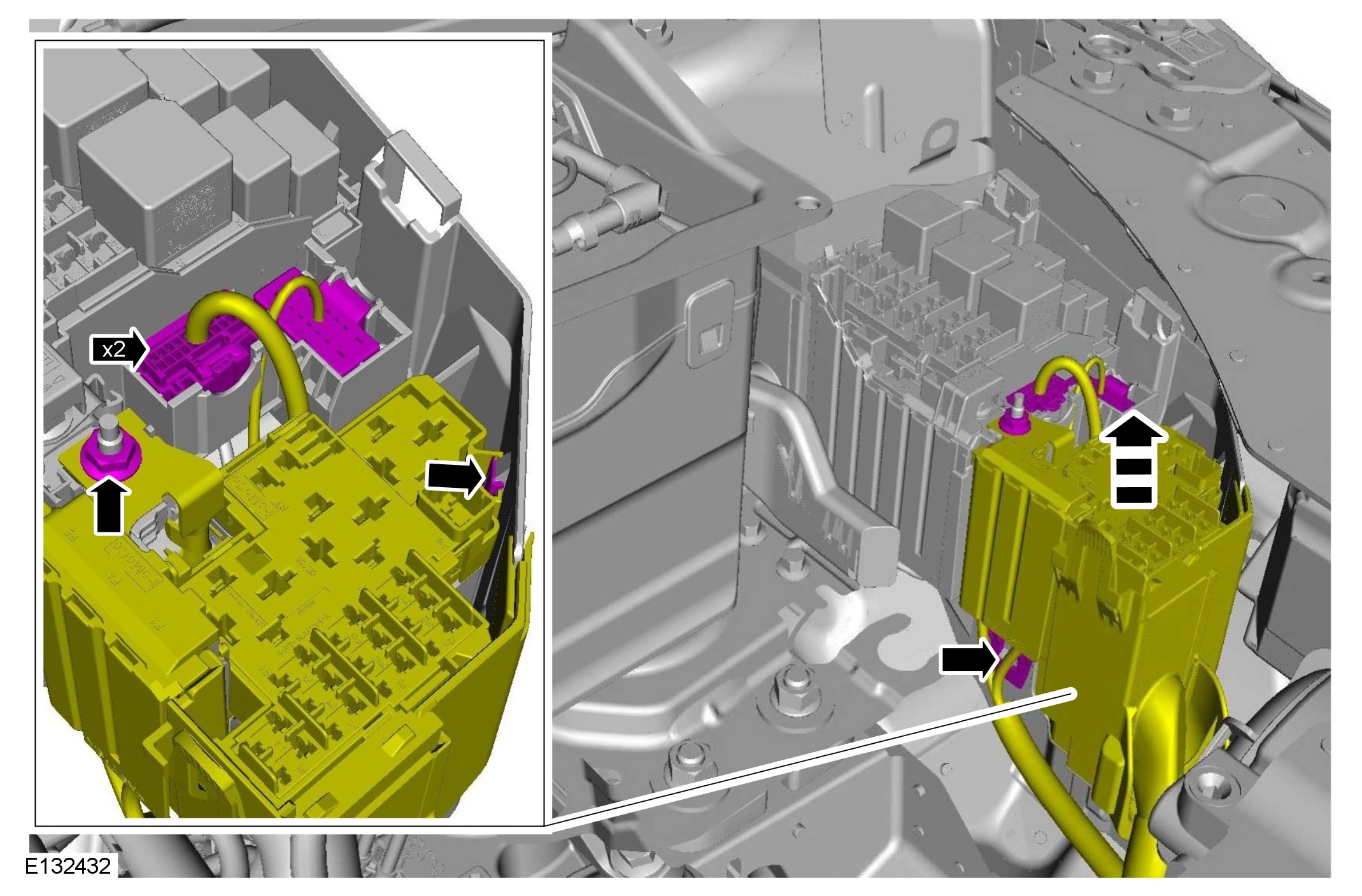

Torque to: 10 Nm

Installation

CAUTION: Make sure that the wiring harness is not twisted or damaged on installation. Failure to follow this instruction may result in damage to the vehicle.
1 To install, reverse the removal procedure.
