Home >> Land Rover >> 2012 >> Range Rover Evoque (LV) L4-2.0L Turbo >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Locations

Instrument Cluster / Carrier: Locations

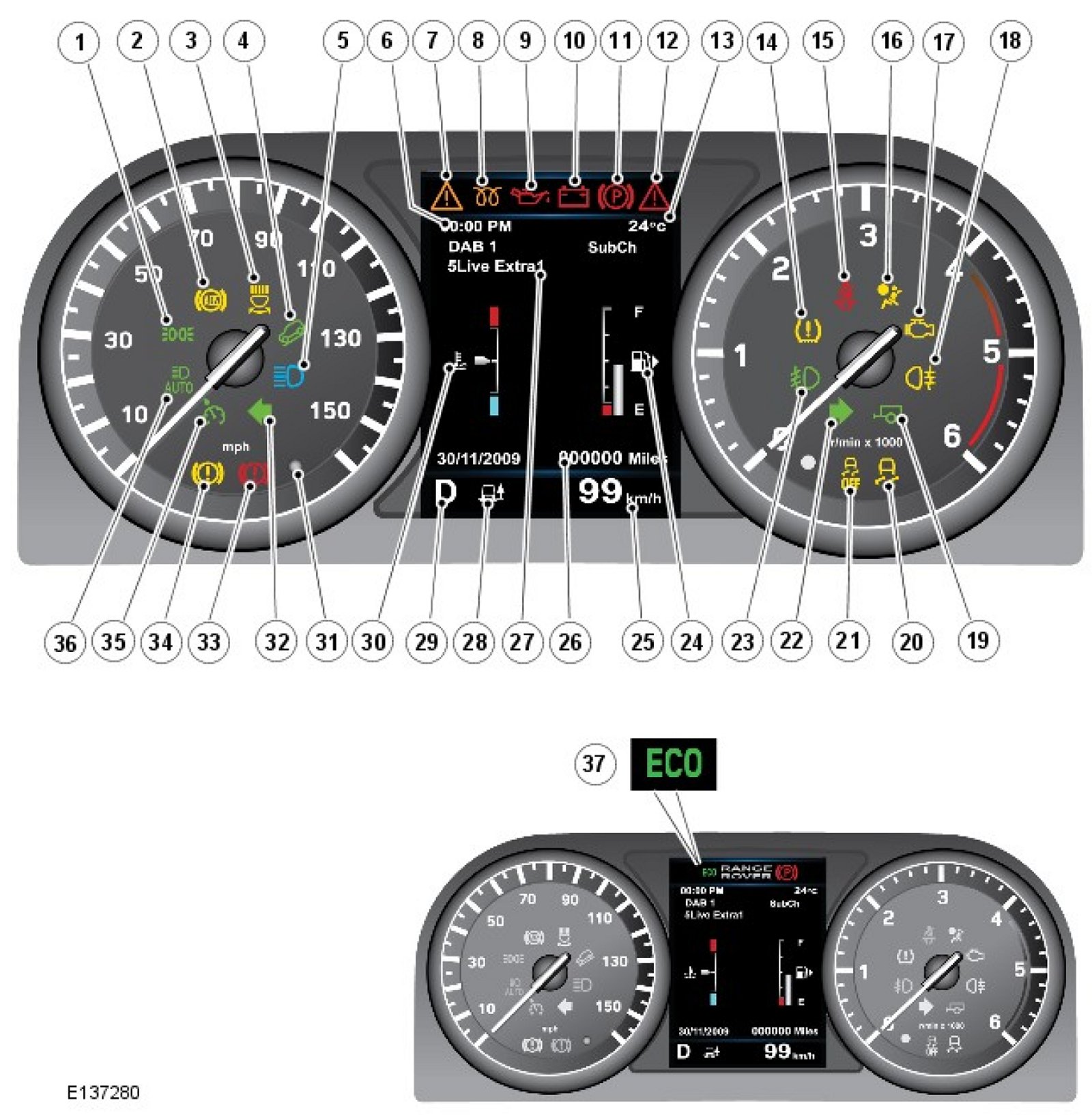

Instrument Cluster

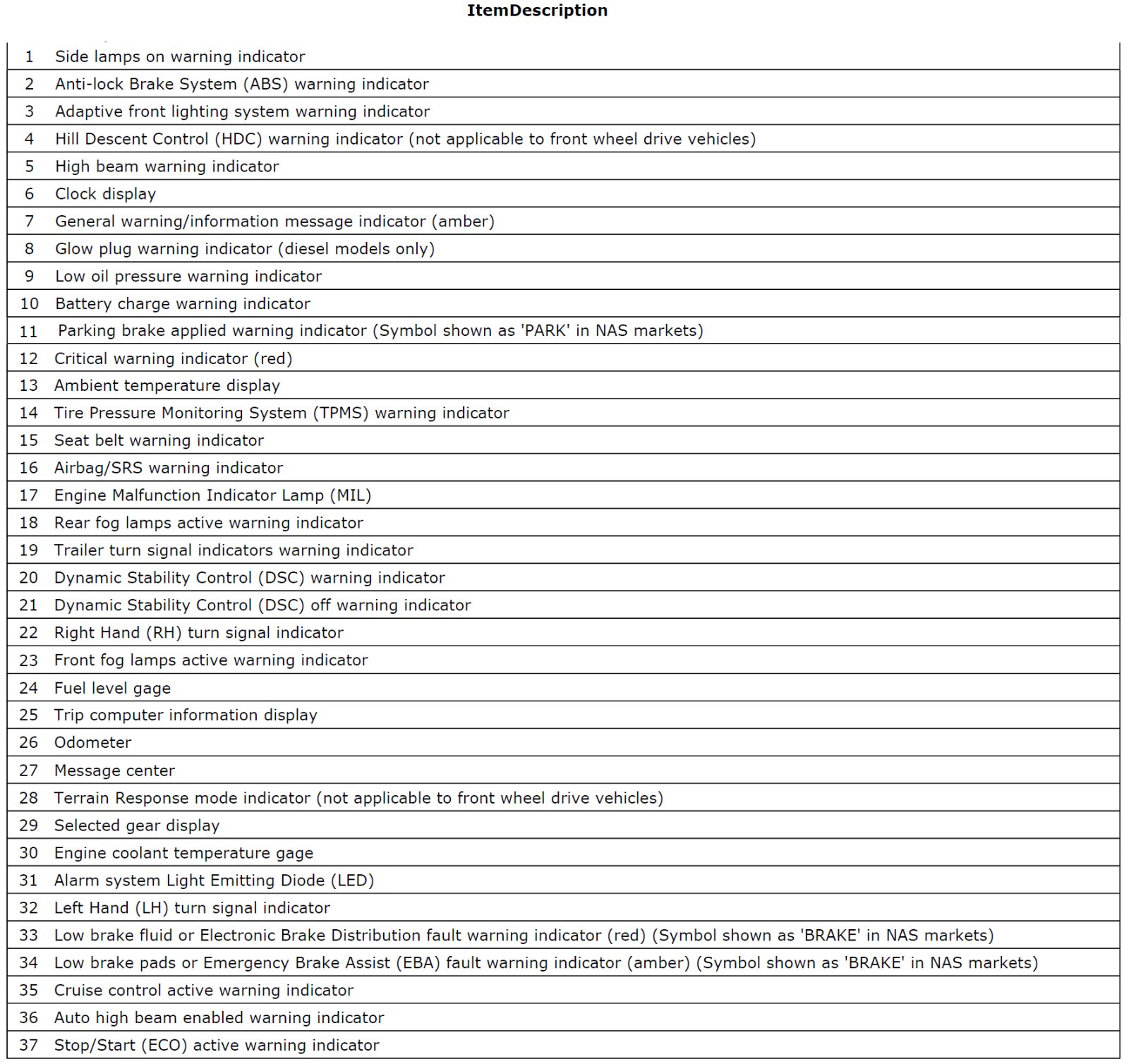

COMPONENT LOCATION
