Wheel Hub: Service and Repair

Front Wheel Bearing
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

WARNING: Make sure to support the vehicle with axle stands.
1 Raise and support the vehicle.
For additional information, refer to Wheel Knuckle Service and Repair

Special Service Tool

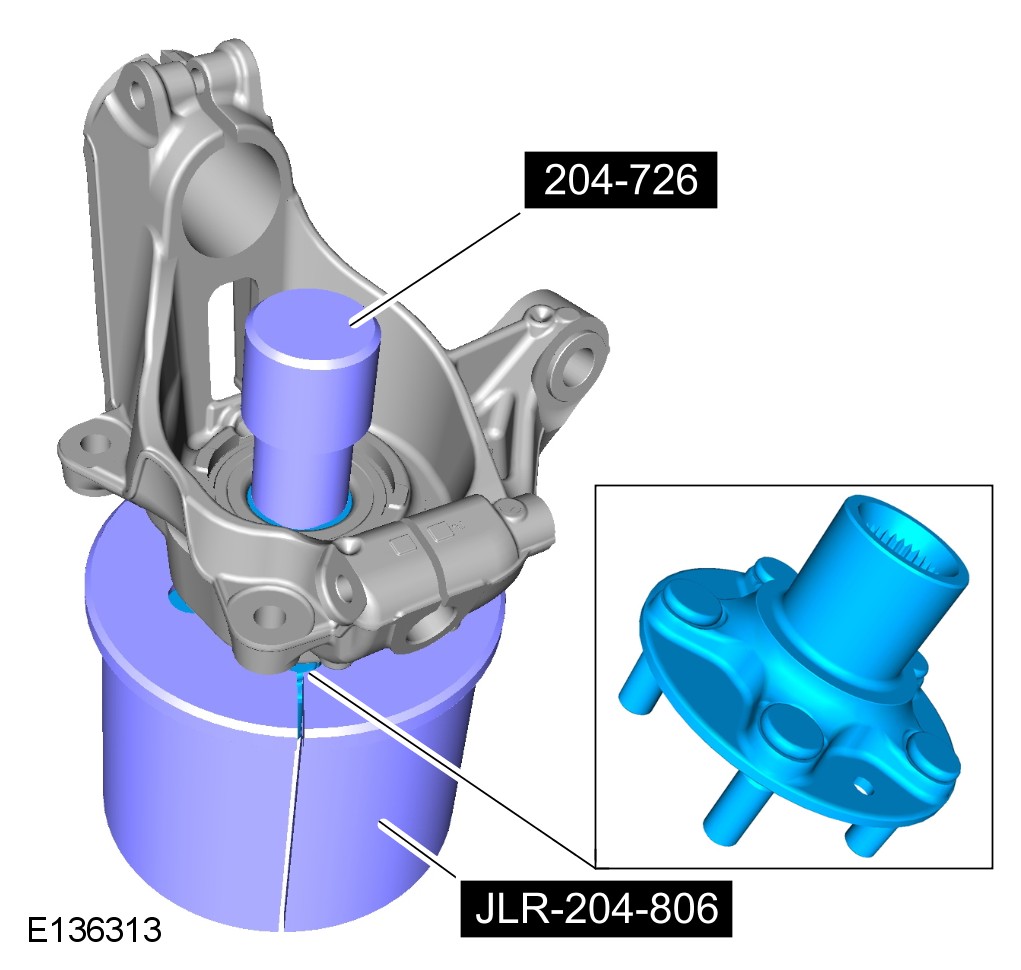

Support Tool, Wheel Knuckle, JLR-204-806

Special Service Tool

Wheel bearing install and removal tool, 204-726

Special Service Tool

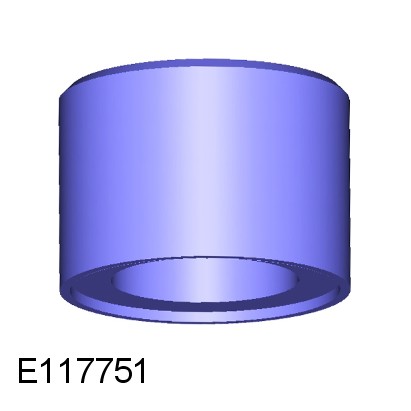

Remover, Wheel Bearing, 204-305

2 Clean all the mating faces and reusable parts thoroughly and check for damage.

NOTE:

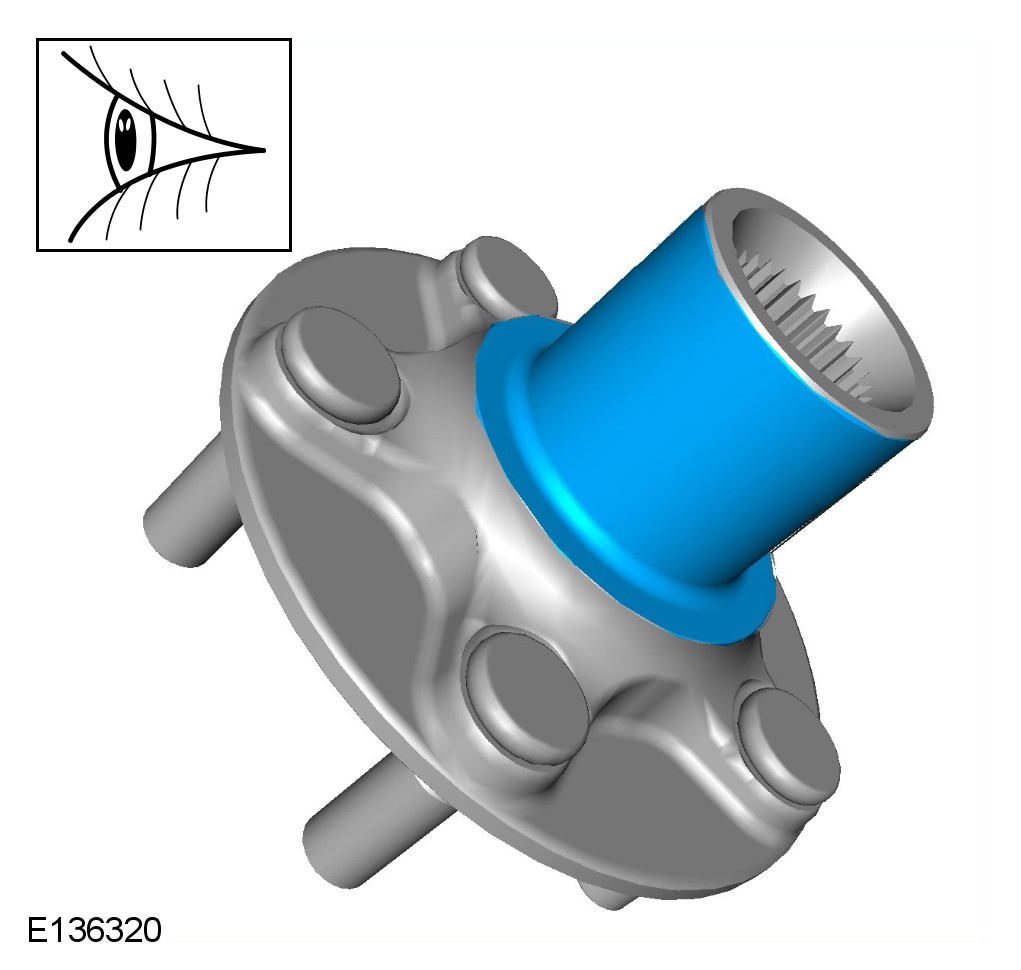

Note the orientation of the component prior to removal.

Special Service Tool

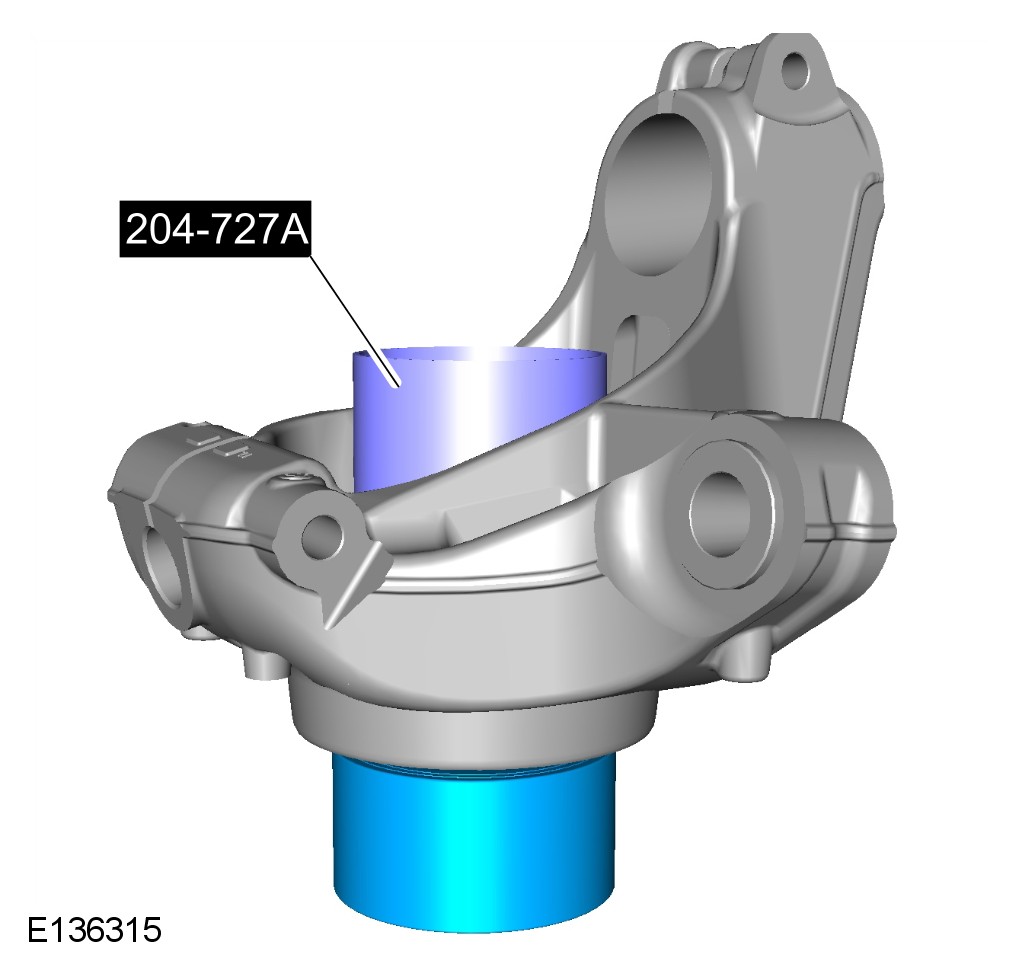

Installer, Wheel Bearing, 204-727A

Installation

CAUTION: Make sure that the area around the component is clean and free of foreign material.

NOTE:
Make sure that the component is installed to the noted removal position.

Special Service Tool

Installer, Front Wheel Bearing, JLR-204-808

Special Service Tool

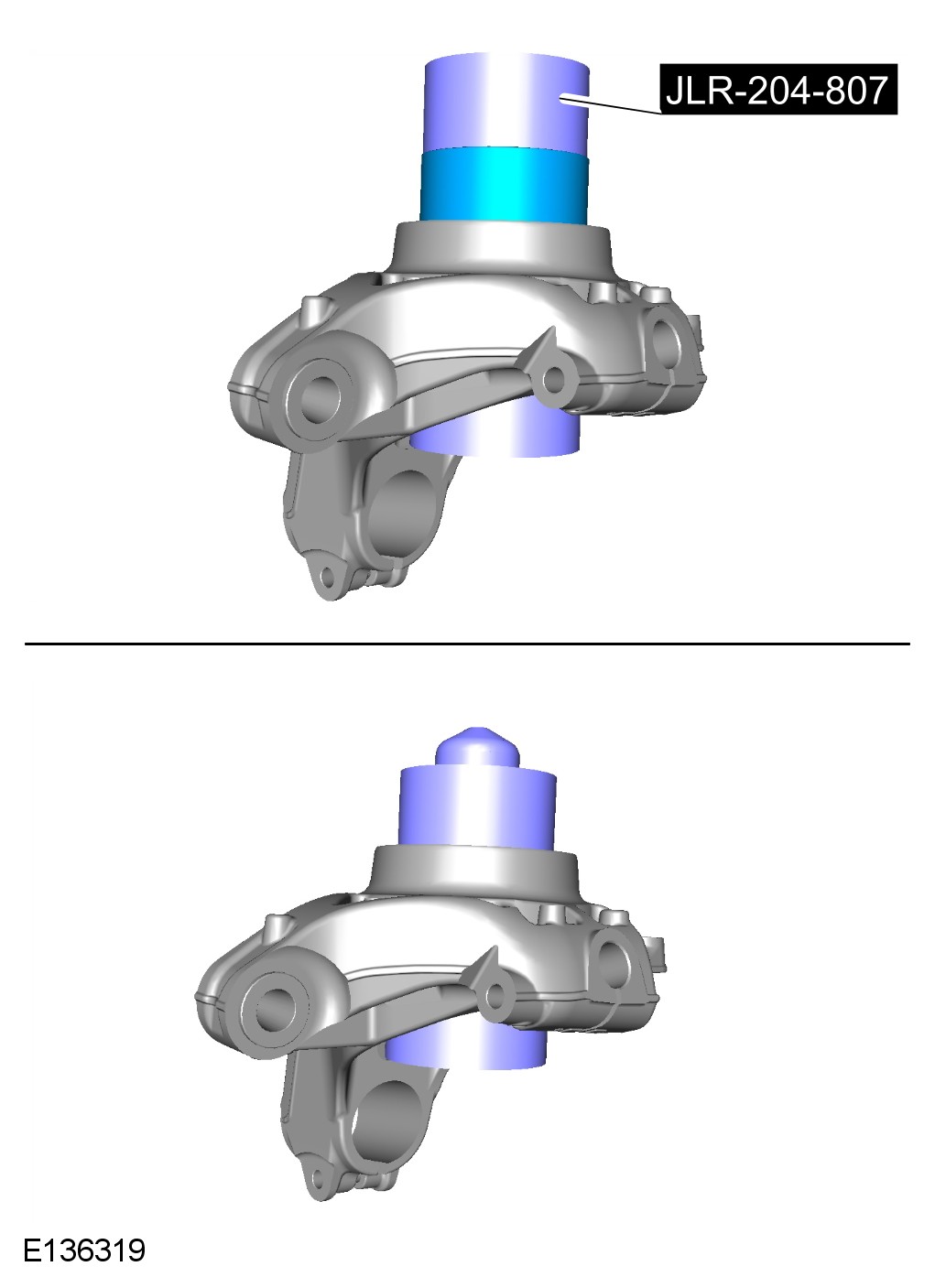

Installer, Front Wheel Bearing, JLR-204-807

Special Service Tool

Wheel bearing install and removal tool, 204-726
For additional information, refer to Wheel Knuckle Service and Repair
