Evaporative Emissions System: Locations






Evaporative Emissions

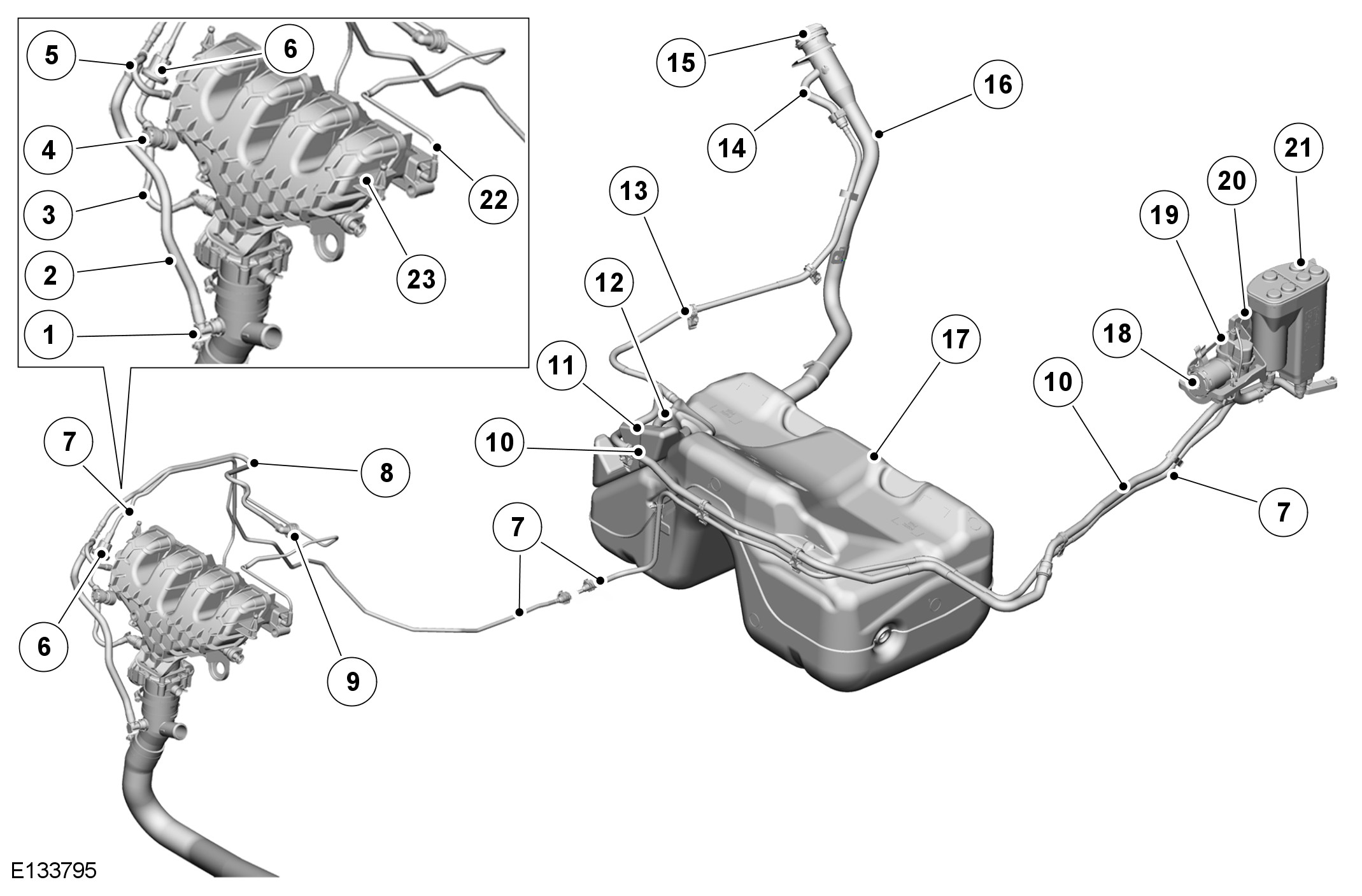

COMPONENT LOCATION ROW









COMPONENT LOCATION NAS
