Air Bag Systems: Locations
Air Bag Supplemental Restraint System (SRS)

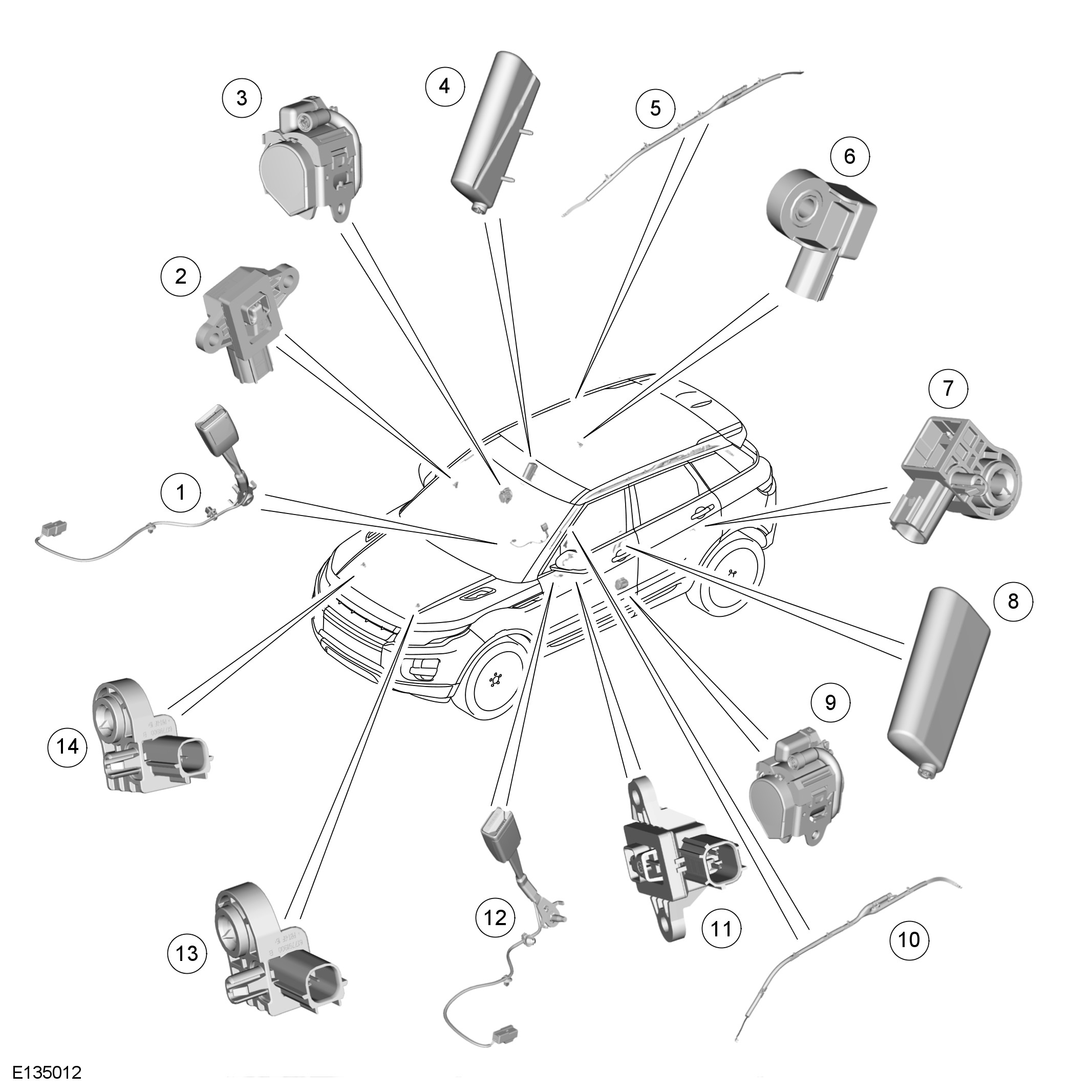

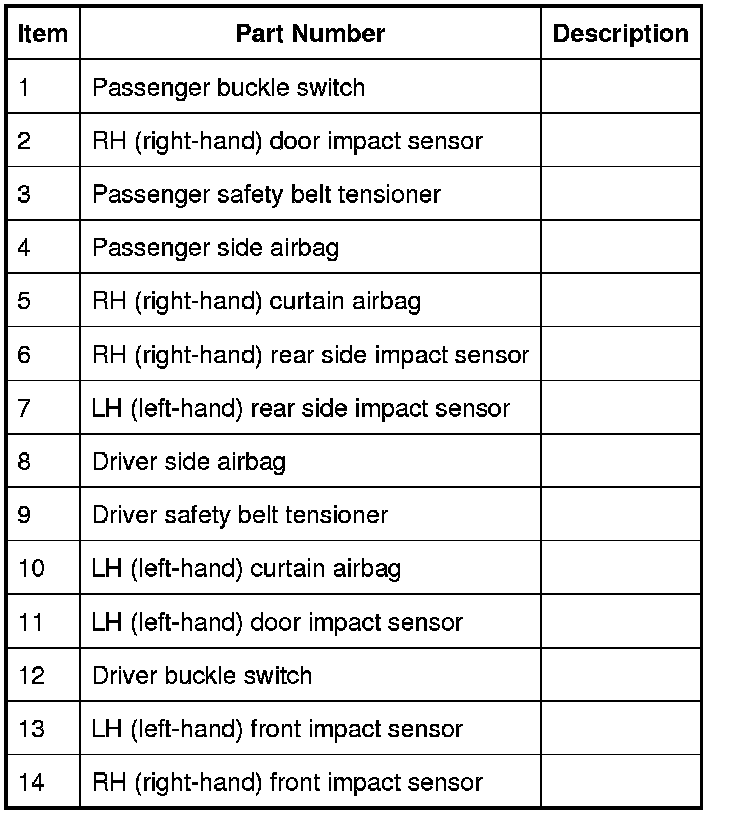

COMPONENT LOCATION SHEET 1 OF 2

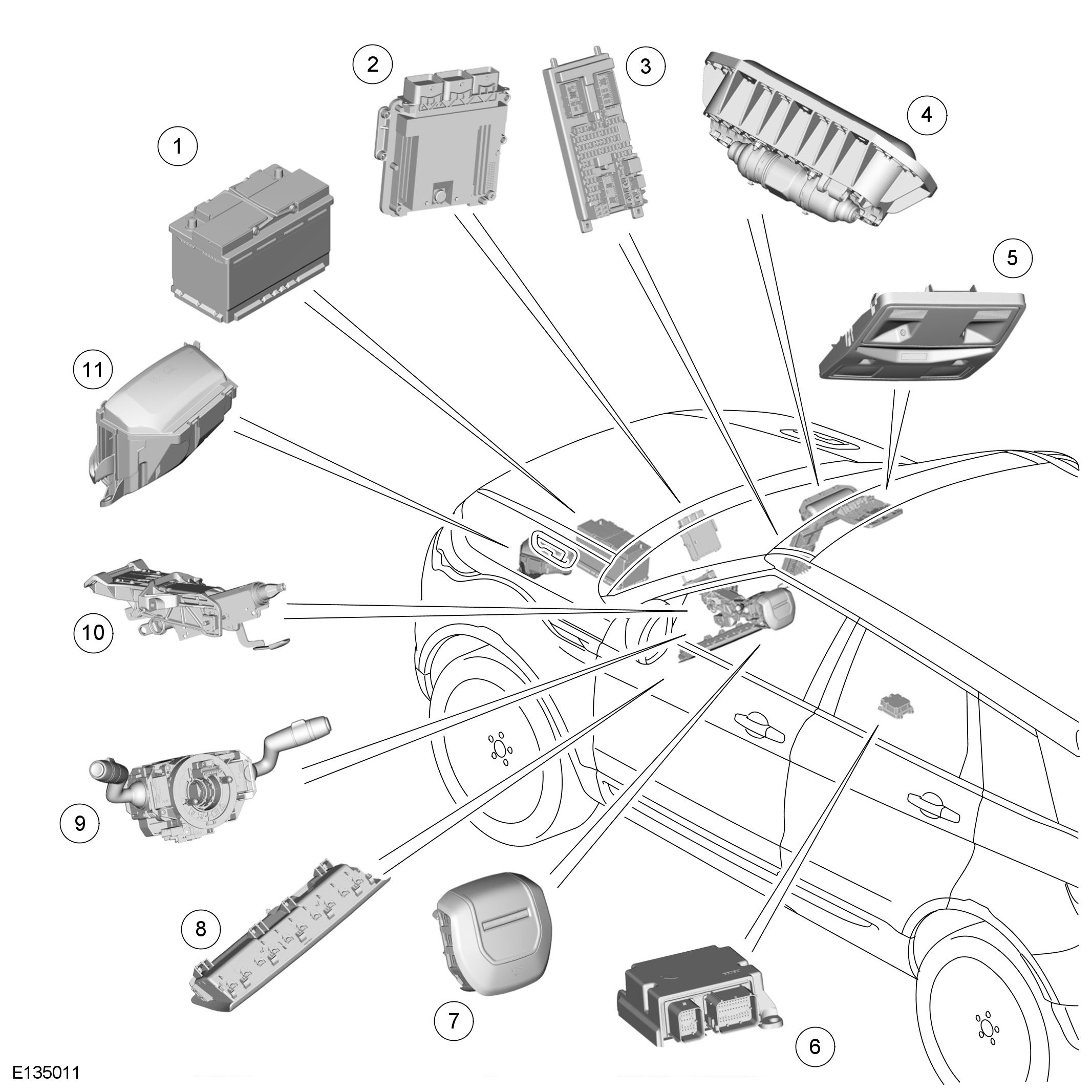

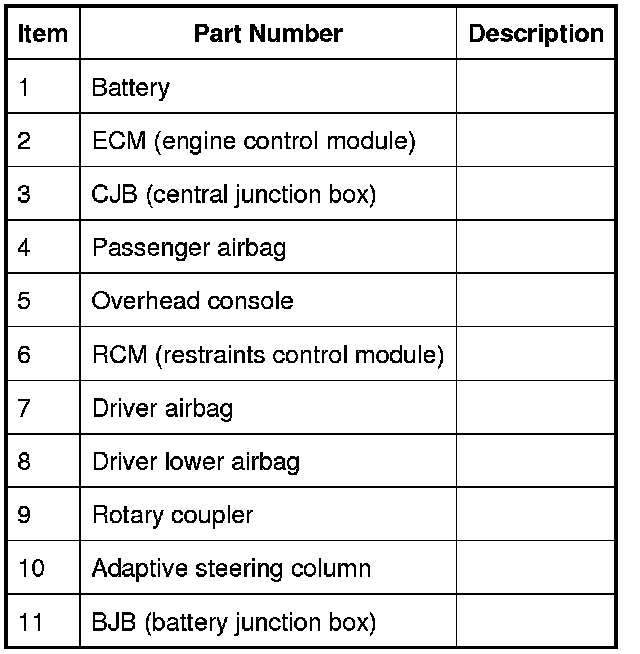

COMPONENT LOCATION SHEET 2 OF 2
