Uni-Body, Subframe and Mounting System
Uni-Body, Subframe and Mounting System

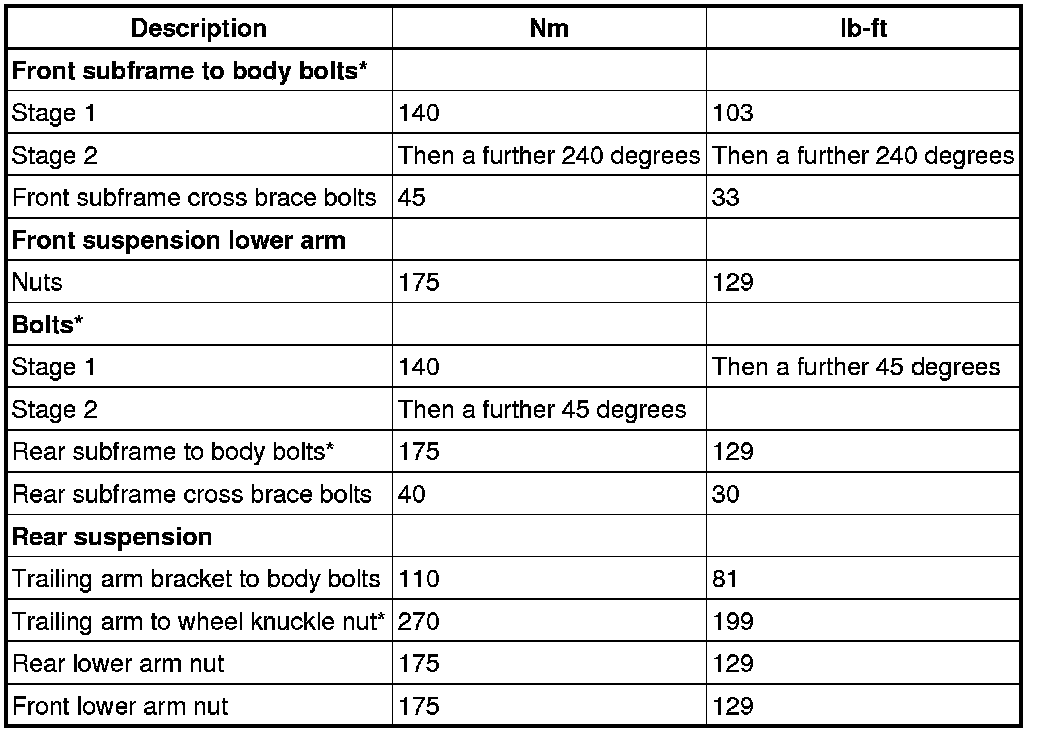

Specifications
* New nuts/bolts must be installed
