Rear Suspension

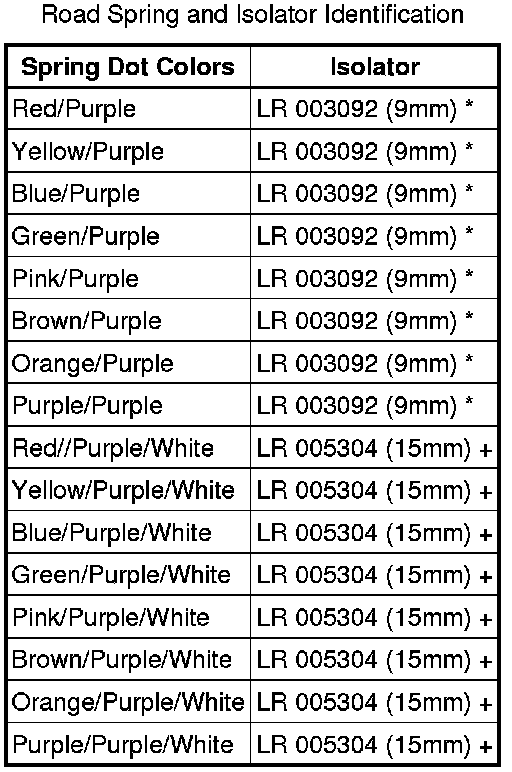

Specifications










NOTE:
* Indicates a long coil spring and a thin isolator.

NOTE:
+ Indicates a short coil spring and a thick isolator.
To maintain the correct vehicle ride height, make sure that the correct coil spring and isolator are fitted.
The coil spring and isolator should be fitted as a pair.
Always carry out the vehicle ride height check and adjust procedure after fitting a new coil spring and isolator.
