Removal

Transmission
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures


NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
For additional information, refer to Plenum Chamber Plenum Chamber
For additional information, refer to Starter Motor Service and Repair
















































Repeat the above step for the other side.
Secure the hood at the highest position.




1 Repeat the above step for the other side.













Special Service Tool




Lifting Bracket, Engine - Rear, JLR-303-1591

Torque to: 24 Nm




2 Support the engine.
Special Service Tool

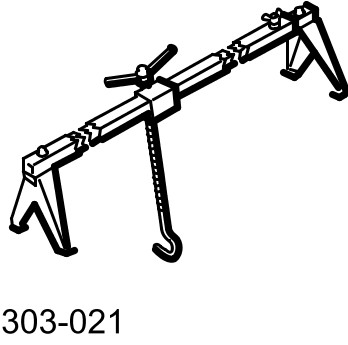

Engine support bracket, 303-021

Special Service Tool




Support Beam Arm and Hook Assembly, Engine, 303-662













WARNING: Make sure to support the vehicle with axle stands.
3 Raise and support the vehicle.
4 Remove the front wheels and tires.
For additional information, refer to Wheel and Tire Service and Repair
For additional information, refer to Engine Undershield Engine Undershield
For additional information, refer to Front Subframe Service and Repair





CAUTION: Be prepared to collect escaping fluids.

CAUTION: Make sure that all openings are sealed. Use new blanking caps.

NOTE:
Remove and discard the O-ring seals.





CAUTION: Discard the nut.





CAUTION: Make sure that the driveshaft is supported with suitable retaining straps.

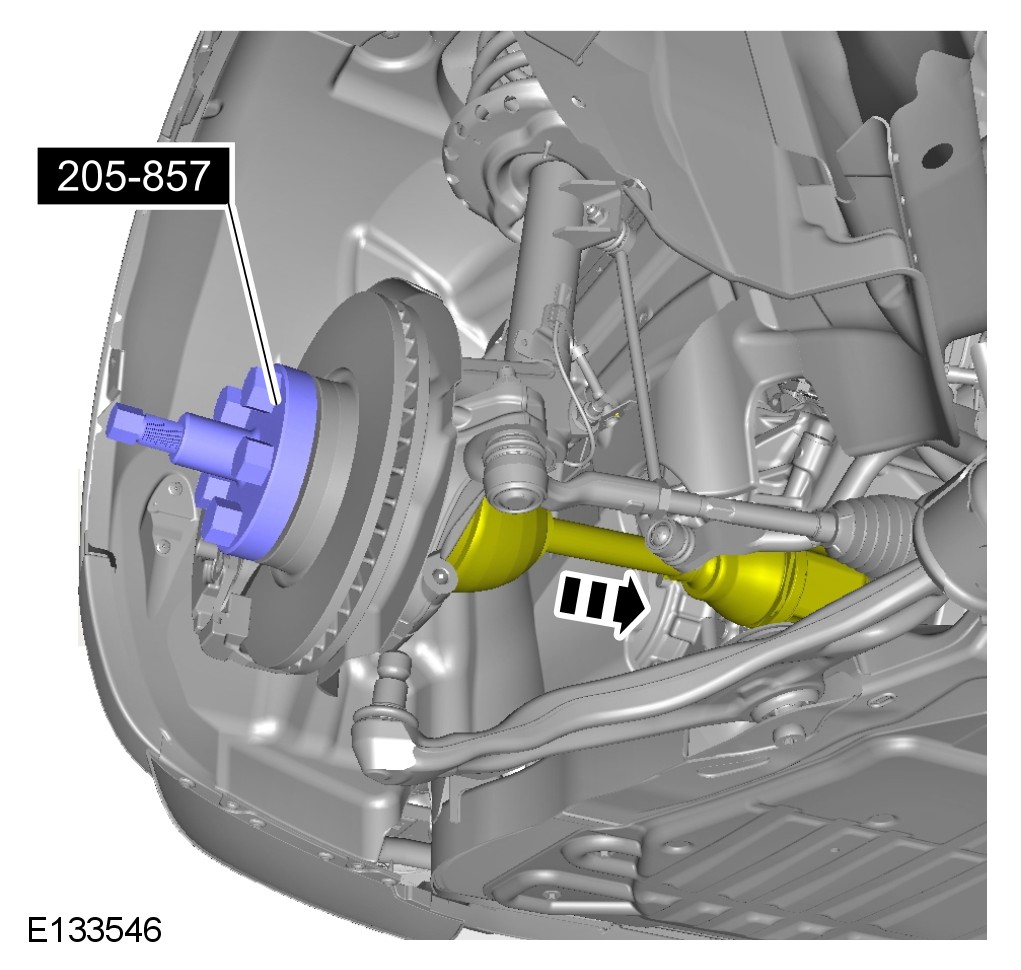

CAUTION: Do not use a hammer to detach the halfshaft from the hub assembly, failure to follow this instruction may result in damage to the halfshaft.

Special Service Tool




Remover, Halfshaft, 205-857





WARNING: Be prepared to collect escaping fluids.

CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.

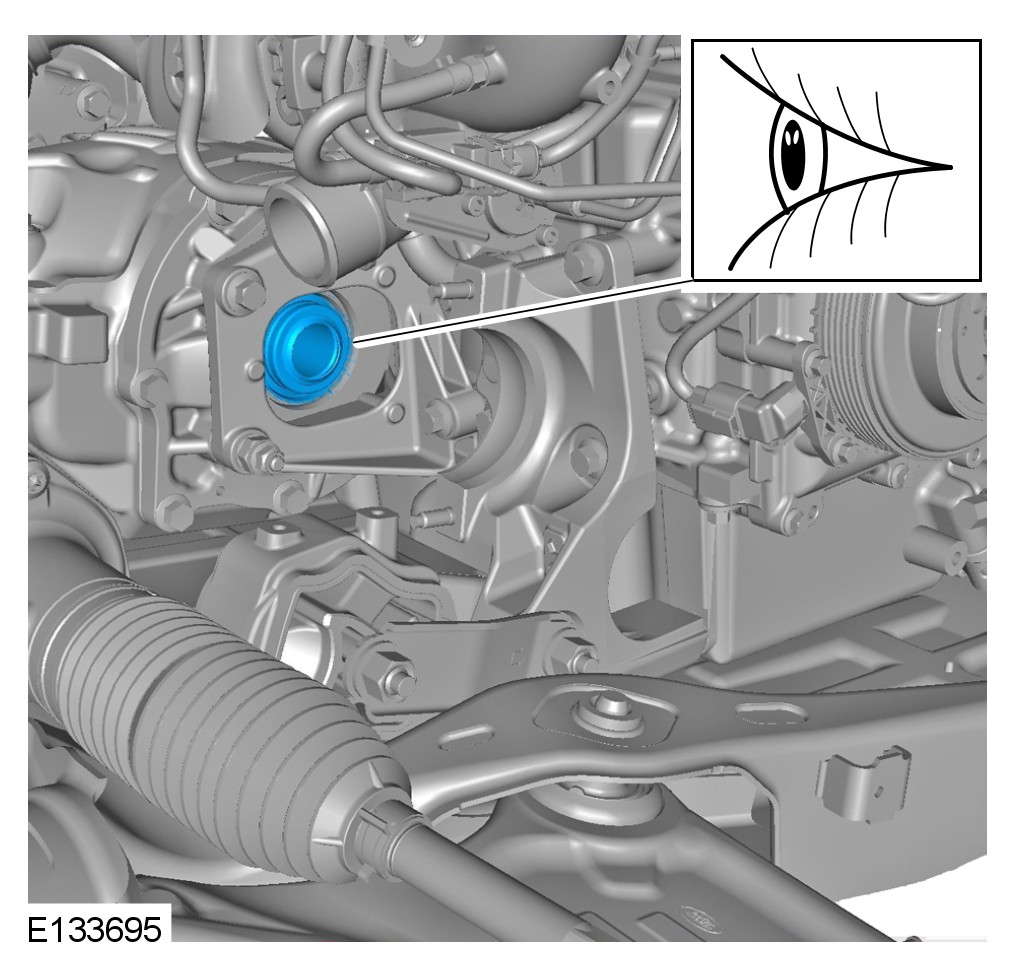

CAUTION: Inspect the seal, replace if damaged

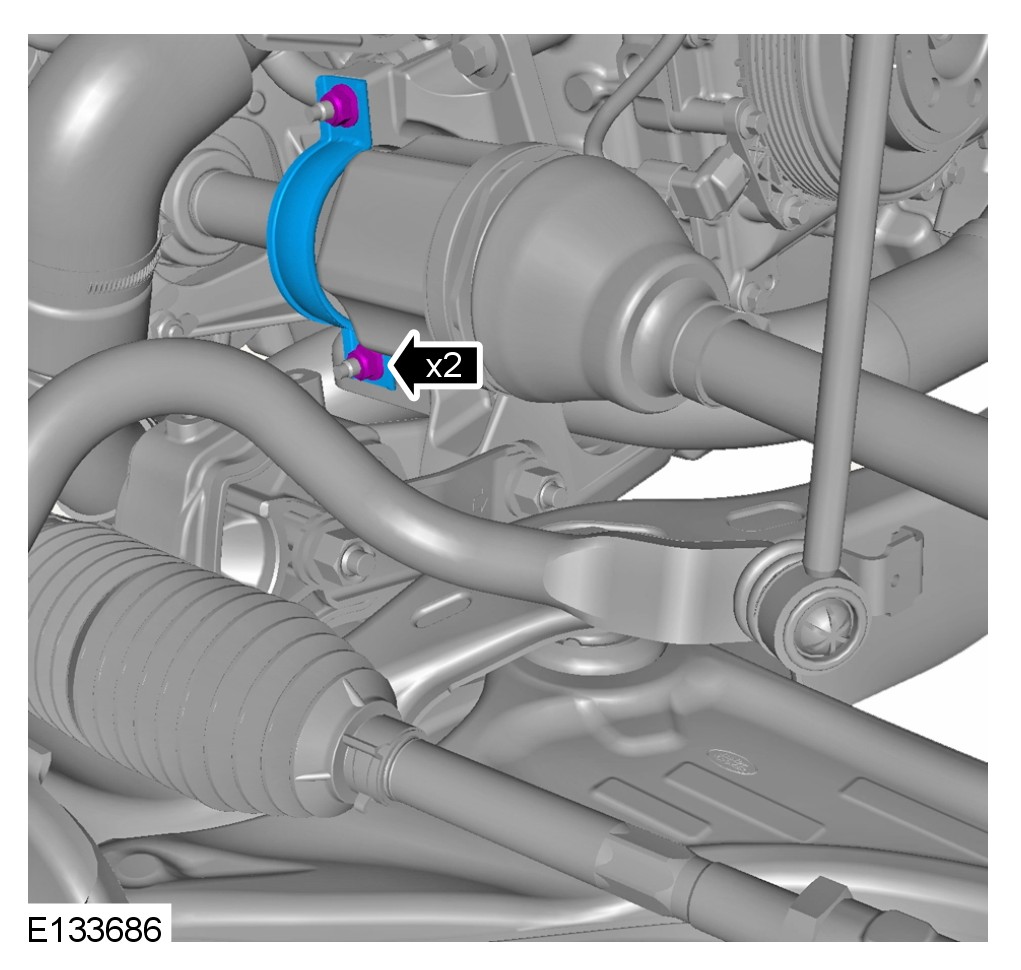

5 If removed for access only.





CAUTION: Discard the nut.





CAUTION: Make sure that the driveshaft is supported with suitable retaining straps.

CAUTION: Do not use a hammer to detach the halfshaft from the hub assembly, failure to follow this instruction may result in damage to the halfshaft.

Special Service Tool




Remover, Halfshaft, 205-857









WARNING: Be prepared to collect escaping fluids.

CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.









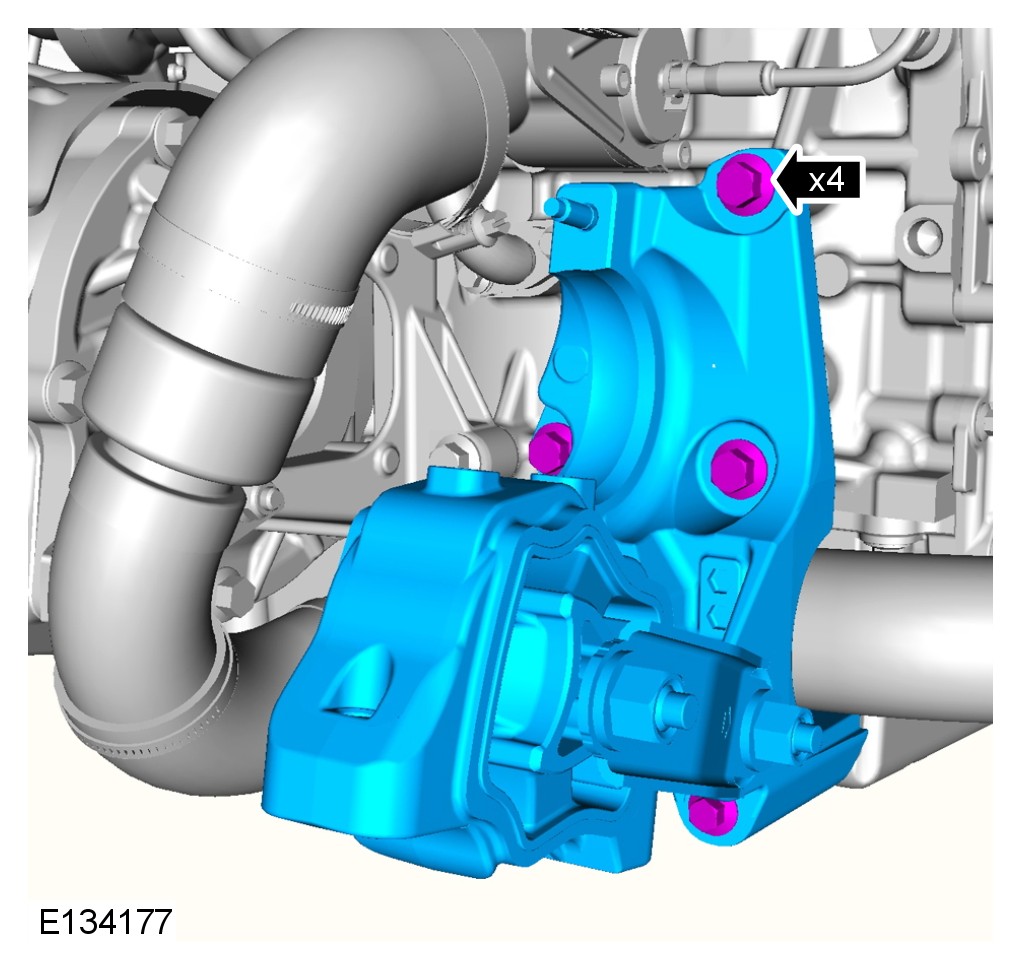

CAUTION: Discard the bolts.
6 Tie aside.

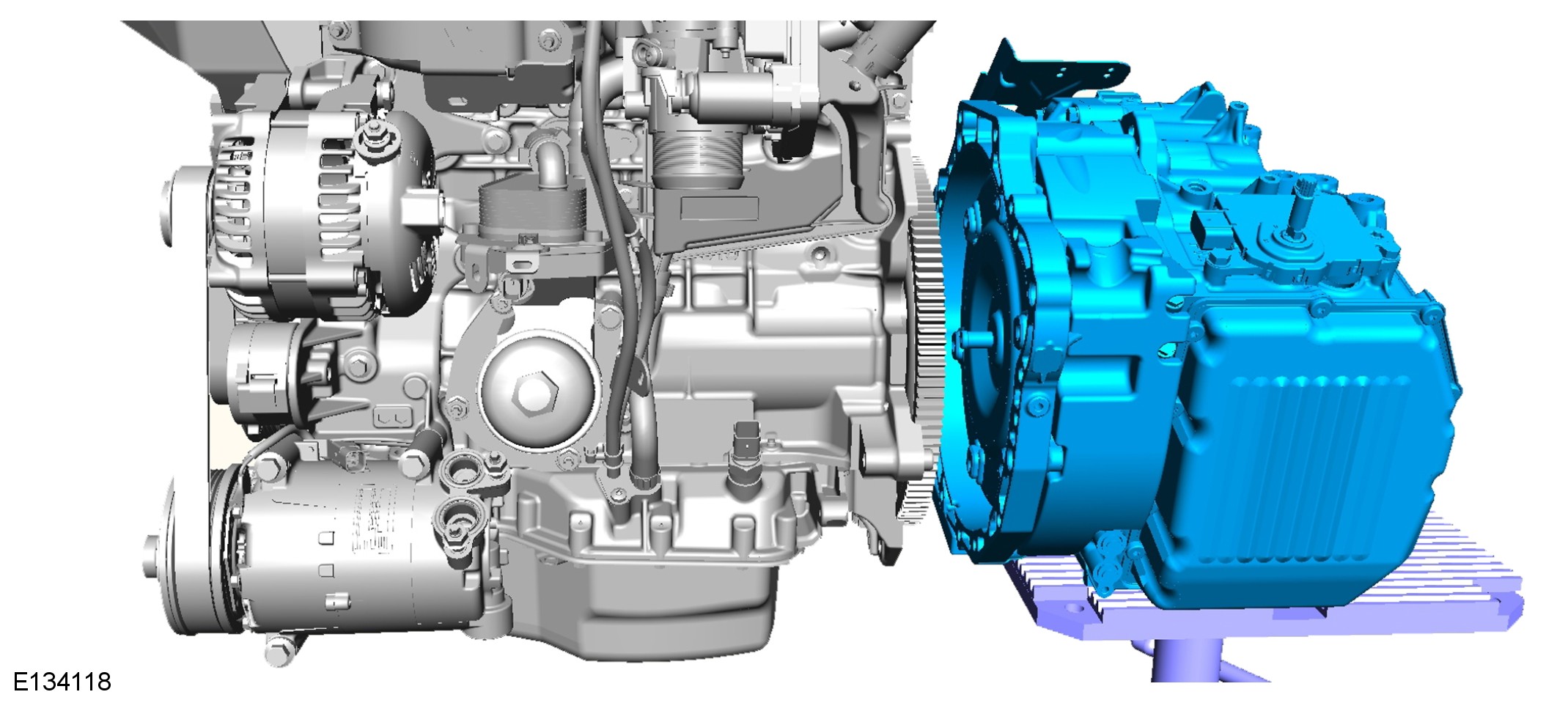

E21 - Transmission jack













CAUTION: Make sure that the torque converter remains in the transmission.

CAUTION: Make sure that the dowels are still located on the engine and not the transmission.





NOTE:
Do not disassemble further if the component is removed for access only.
