Active On-Demand Coupling Oil Pump

Active On-Demand Coupling Oil Pump
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

NOTE:
Removal steps in this procedure may contain installation details.

WARNING: Make sure to support the vehicle with axle stands.

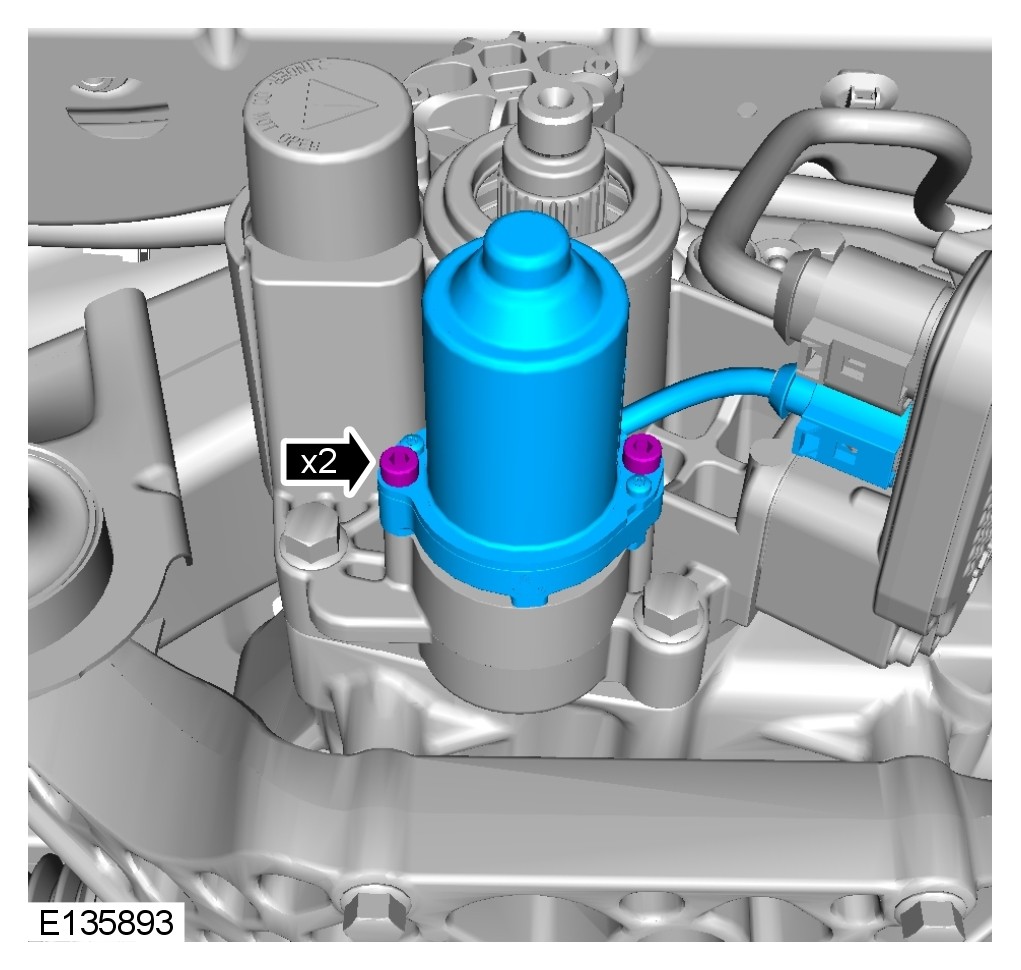

1 Raise the vehicle on the lift.
For additional information, refer to Drive Pinion Flange - Vehicles With: 6-Speed Manual Transaxle - M66 AWD









CAUTION: Be prepared to collect escaping oil.

CAUTION: Make sure that the area around the component is clean and free of foreign material.

CAUTION: Lubricate the O-ring seals.

CAUTION: Only use the specified material to lubricate the seals.

NOTE:
Remove and discard the O-ring seals.

NOTE:
Install new O-ring seals.

Torque to: 6 Nm

Installation
1 To install, reverse the removal procedure.
2 Check and top-up the active on-demand coupling fluid level.
For additional information, refer to Active On-Demand Coupling Filling
