Left Hand Parking Aid Camera Wiring Harness

Left Hand Parking Aid Camera Wiring Harness

Removal

CAUTION: Make sure that the camera overlay wiring harness is not bent excessively during this procedure. Failure to follow this instruction may result in damage to the harness.




1 Remove the closing trim panel.
- Release the clip.
- Remove the 2 screws.

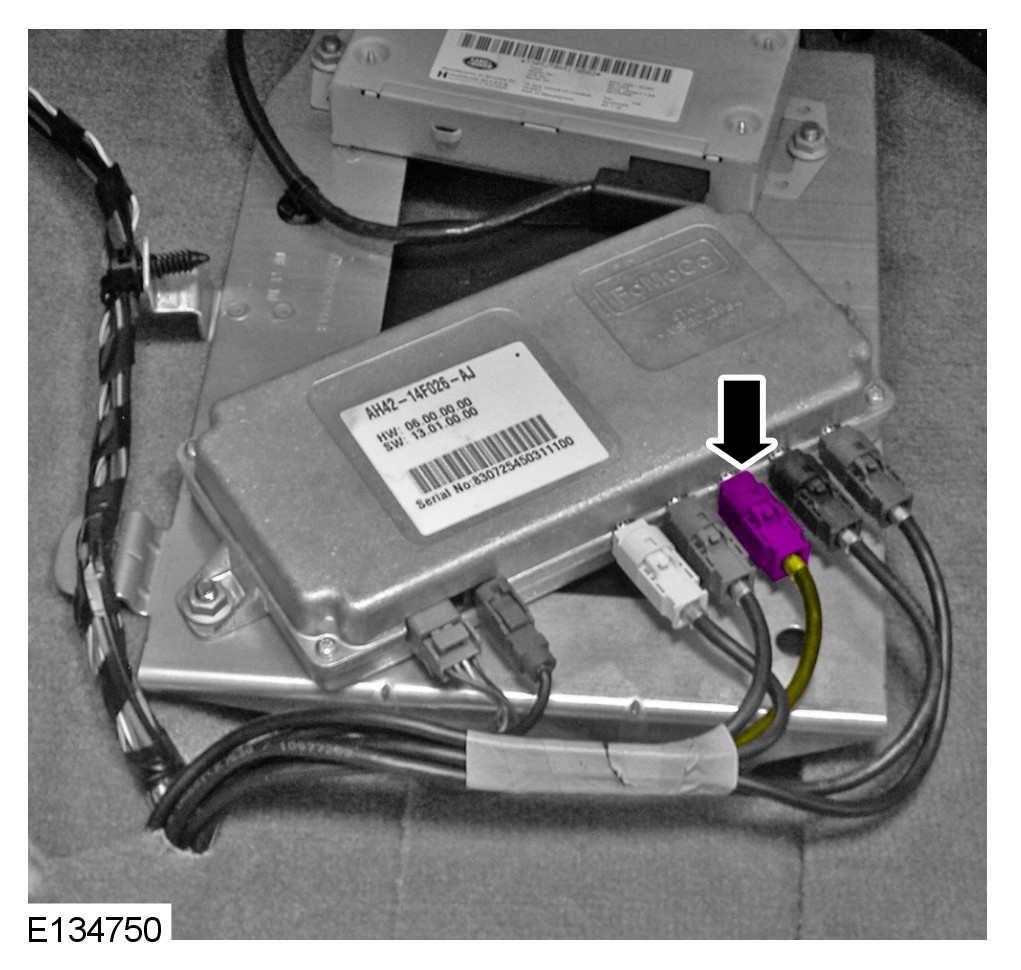

- Disconnect the electrical connector.
2 Remove the cowl side trim panel. For additional information, refer to Cowl Side Trim Panel Cowl Side Trim Panel
3 Remove the LH front seat. For additional information, refer to Front Seat Front Seat
4 Remove the LH scuff plate trim panel. For additional information, refer to Scuff Plate Trim Panel Service and Repair

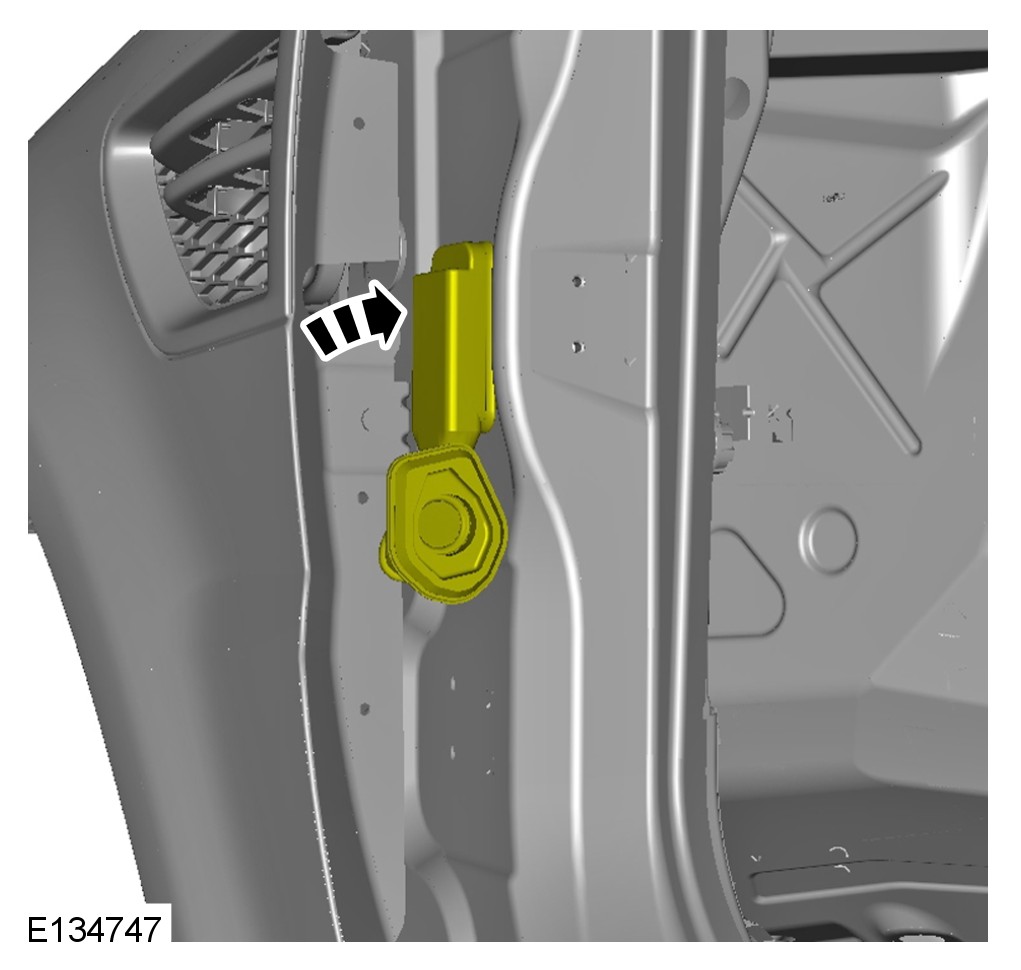

5 Release the wiring harness cover.
- Release the 3 clips.




6
NOTE:
Door shown removed for clarity.

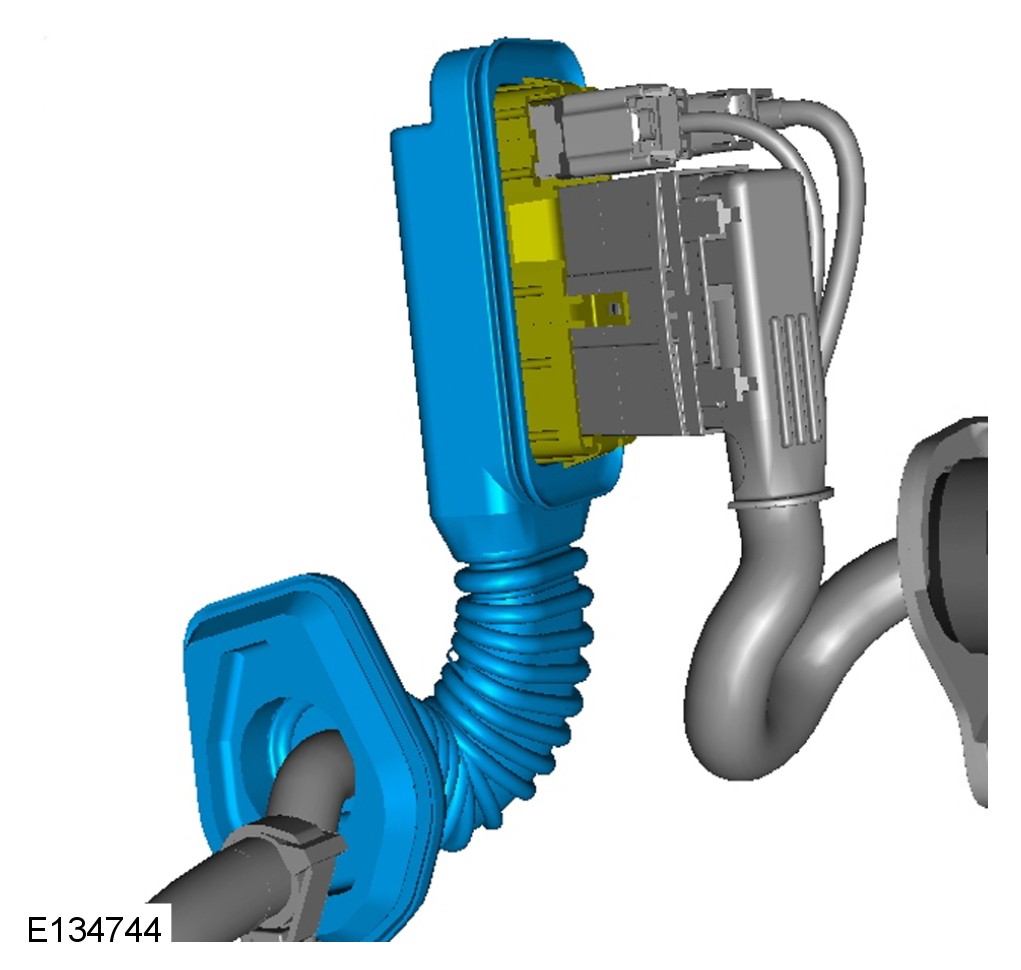

Release the gaiter.

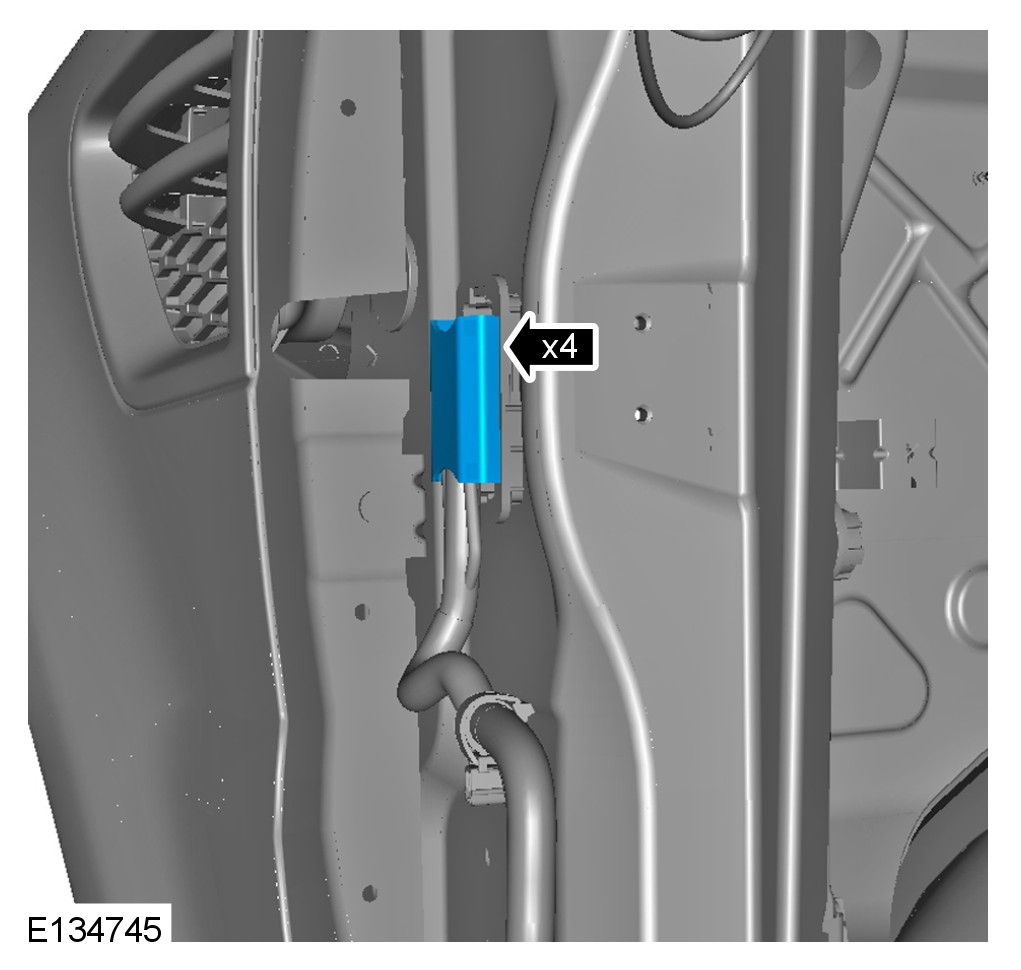

7 Remove the wiring harness cover.
- Release the 4 clips.




8 Disconnect the electrical connector.
- Release the electrical connector bracket.
- Release the 6 clips.

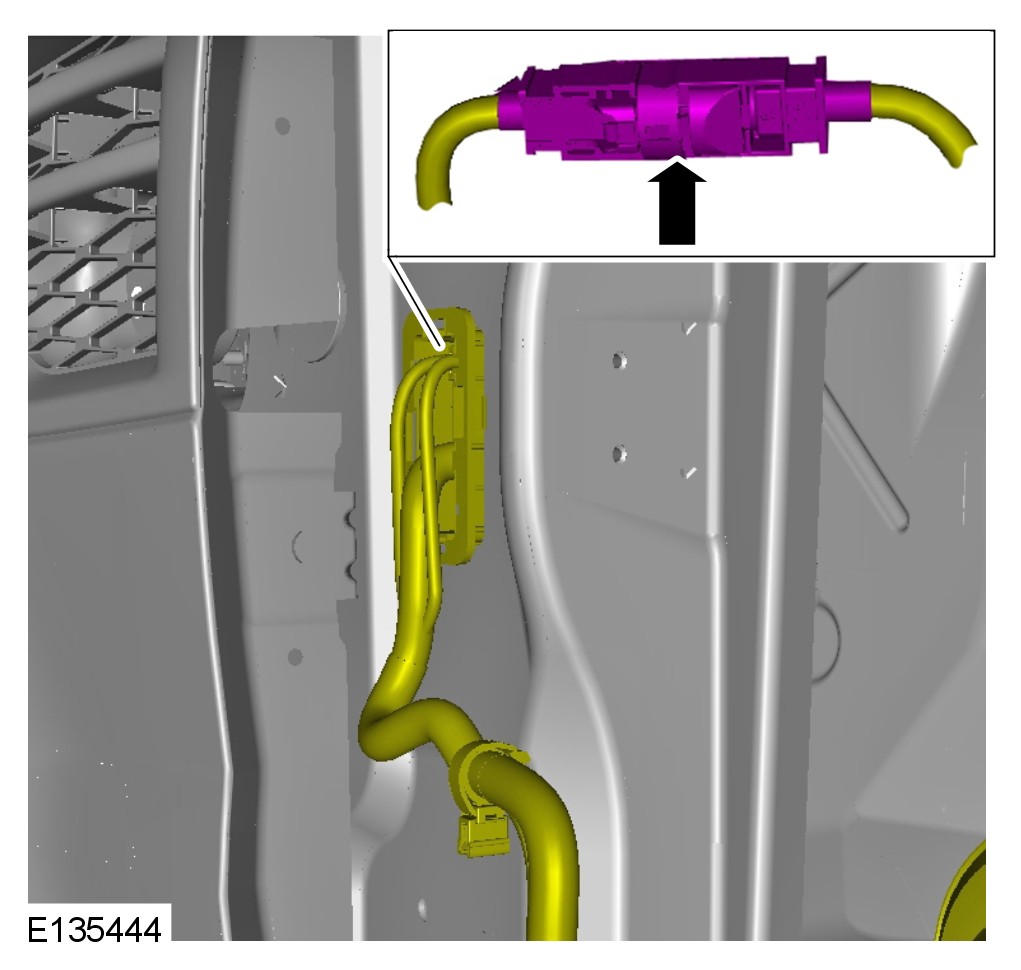

9 Disconnect the electrical connector.

Installation





1
CAUTION: Make sure that the camera overlay wiring harness is not bent excessively during this procedure. Failure to follow this instruction may result in damage to the harness.
Install the camera overlay wiring harness.




2 Connect the electrical connector.




3 Install the wiring harness cover.
- Secure the 4 clips.




4 Install the gaiter.




5 Secure the bracket.
- Secure the 6 clips.
6
CAUTION: Make sure that any tie straps used are not tightened excessively on the camera wiring harness and link leads, Failure to follow this instruction may result in damage to the harness.
Feed the camera overlay wiring harness along the main wiring harness to the parking aid camera module.
- Using suitable tie straps, secure the camera overlay wiring harness to the main body wiring harness.




7 Connect the electrical connector.




8 Install the wiring harness cover.
- Secure the 3 clips.
9 Install the LH scuff plate trim panel. For additional information, refer to Scuff Plate Trim Panel Service and Repair

10 Install the LH front seat. For additional information, refer to Front Seat Front Seat

11 Install the cowl side trim panel. For additional information, refer to Cowl Side Trim Panel Cowl Side Trim Panel





12 Install the closing trim panel.
- Connect the electrical connector.
- Secure the clip.
- Tighten the screws.
